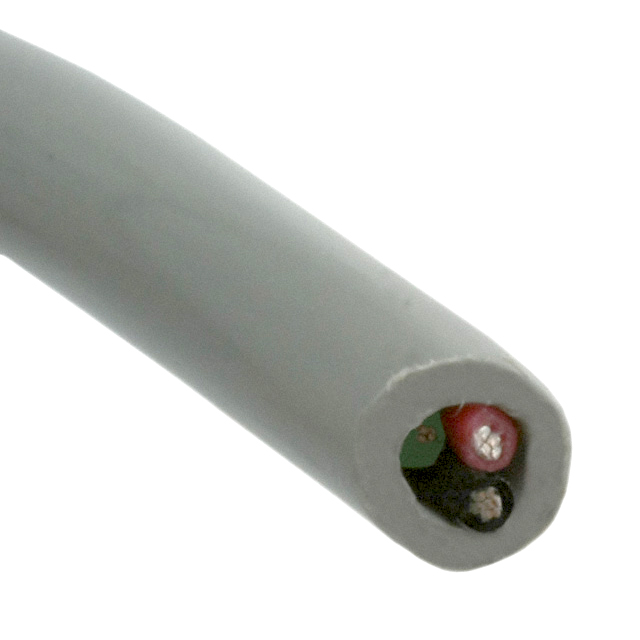

8443MN Series
Manufacturer: Belden Inc.
Beta
⌘K

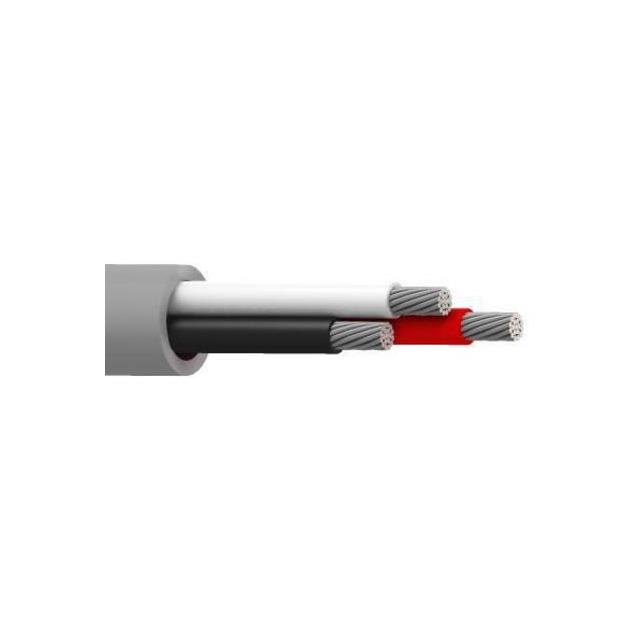

CABLE 3COND 22AWG GRAY
| Part | Wire Gauge | Cable Type | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Usage | Conductor Material | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Jacket (Insulation) Material | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 22 AWG | Multi-Conductor | 100 ft | 30.5 m | 0.14 " | 3.56 mm | UL Style 2937 | Audio Control Instrumentation | Copper Tinned | Polypropylene (PP) | 34 AWG | 19 | 0.406 mm | 0.016 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Gray | 80 °C | -20 ░C | 3 | ||
 Belden Inc. | 22 AWG | Multi-Conductor | 0.14 " | 3.56 mm | UL Style 2937 | Copper Tinned | Polypropylene (PP) | 34 AWG | 19 | 0.406 mm | 0.016 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Gray | 80 °C | -20 ░C | 3 | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | |||
Belden Inc. | 22 AWG | Multi-Conductor | 100 ft | 30.5 m | 0.14 " | 3.56 mm | UL Style 2937 | Audio Control Instrumentation | Copper Tinned | Polypropylene (PP) | 34 AWG | 19 | 0.406 mm | 0.016 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Yellow | 80 °C | -20 ░C | 3 |
