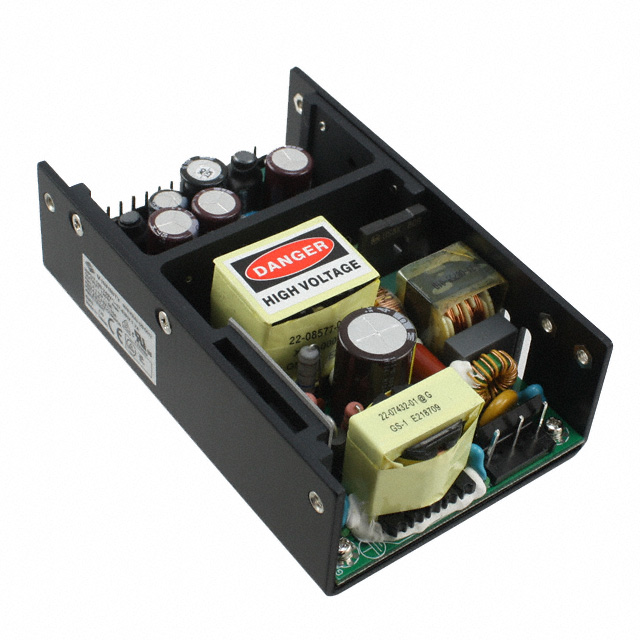

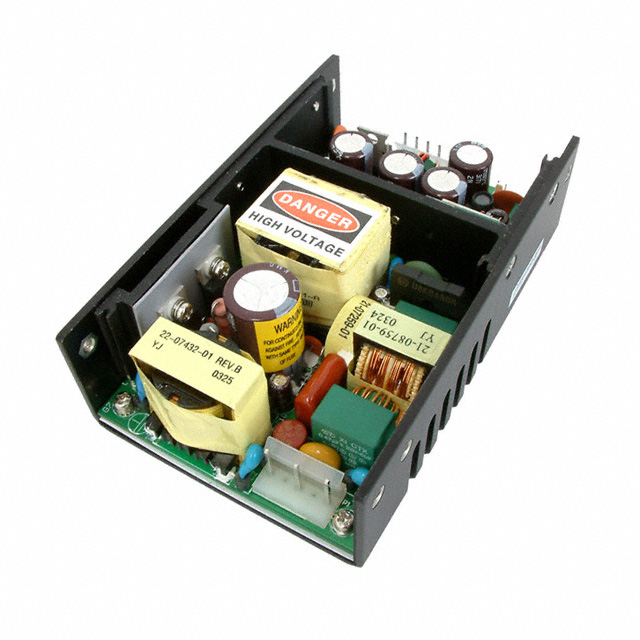

VSUU-120 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 3.3V 5V 120W

Part	Efficiency	Current - Output 1	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Number of Outputs	Approval Agency	Voltage - Output 2	Mounting Type	Standard Number	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 2	Applications	Operating Temperature [Max]	Features	Voltage - Output 1	Current - Output 3	Voltage - Output 3	Voltage - Output 1 [custom]
CUI Inc. VSUU-120-D305	80 %	15 A	Open Frame	3 "	32.5 mm	127 mm	76.2 mm	1.28 "	5 "	4.242 kV	2	CB Scheme EN IEC SIQ TUV UL	5 V	Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC	6 A	ITE (Commercial)	70 °C	DC Input Capable PFC Universal Input	3.3 V
CUI Inc. VSUU-120-T510A	80 %	15 A	Open Frame	3 "	32.5 mm	127 mm	76.2 mm	1.28 "	5 "	4.242 kV	3	CB Scheme EN IEC SIQ TUV UL	10 V	Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC	6 A	ITE (Commercial)	70 °C	DC Input Capable PFC Universal Input	5 V
CUI Inc. VSUU-120-D524B	80 %	15 A	Open Frame	3 "	32.5 mm	127 mm	76.2 mm	1.28 "	5 "	4.242 kV	2	CB Scheme EN IEC SIQ TUV UL	-24 V	Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC	2 A	ITE (Commercial)	70 °C	DC Input Capable PFC Universal Input	5 V
CUI Inc. VSUU-120-T515A	80 %	15 A	Open Frame	3 "	32.5 mm	127 mm	76.2 mm	1.28 "	5 "	4.242 kV	3	CB Scheme EN IEC SIQ TUV UL	15 V	Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC	6 A	ITE (Commercial)	70 °C	DC Input Capable PFC Universal Input	5 V	0.8 A	-15 V
CUI Inc. VSUU-120-D285	80 %	3.92 A	Open Frame	3 "	32.5 mm	127 mm	76.2 mm	1.28 "	5 "	4.242 kV	2	CB Scheme EN IEC SIQ TUV UL	5 V	Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC	2 A	ITE (Commercial)	70 °C	DC Input Capable PFC Universal Input	28 V
CUI Inc. VSUU-120-T125B	80 %	15 A	Open Frame	3 "	32.5 mm	127 mm	76.2 mm	1.28 "	5 "	4.242 kV	3	CB Scheme EN IEC SIQ TUV UL	12 V	Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC	4 A	ITE (Commercial)	70 °C	DC Input Capable PFC Universal Input	5 V	0.8 A	5 V
CUI Inc. VSUU-120-36	80 %	4 A	Open Frame	3 "	39.1 mm	127 mm	81.4 mm	1.54 in	5 "	4.242 kV	1	CB Scheme EN IEC SIQ TUV UL		Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC		ITE (Commercial)	70 °C	Adjustable Output DC Input Capable PFC Universal Input				36 V
CUI Inc. VSUU-120-7.5	80 %		Open Frame	3 "	39.1 mm	127 mm	81.4 mm	1.54 in	5 "	4.242 kV	1	CB Scheme EN IEC SIQ TUV UL		Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC		ITE (Commercial)	70 °C	Adjustable Output DC Input Capable PFC Universal Input	7.5 V
CUI Inc. VSUU-120-24	80 %	6 A	Open Frame	3 "	39.1 mm	127 mm	81.4 mm	1.54 in	5 "	4.242 kV	1	CB Scheme EN IEC SIQ TUV UL		Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC		ITE (Commercial)	70 °C	Adjustable Output DC Input Capable PFC Universal Input	24 V
CUI Inc. VSUU-120-30	80 %	4 A	Open Frame	3 "	39.1 mm	127 mm	81.4 mm	1.54 in	5 "	4.242 kV	1	CB Scheme EN IEC SIQ TUV UL		Chassis Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	120 W	90 VAC 130 VDC	260 VAC 370 VDC		ITE (Commercial)	70 °C	Adjustable Output DC Input Capable PFC Universal Input	30 V
