1775014 Series

Catalog

CONN PLUG 24POS SMD TIN

Part	Contact Finish	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Features	Connector Type	Number of Rows	Mounting Type	Mated Stacking Heights	Contact Finish Thickness

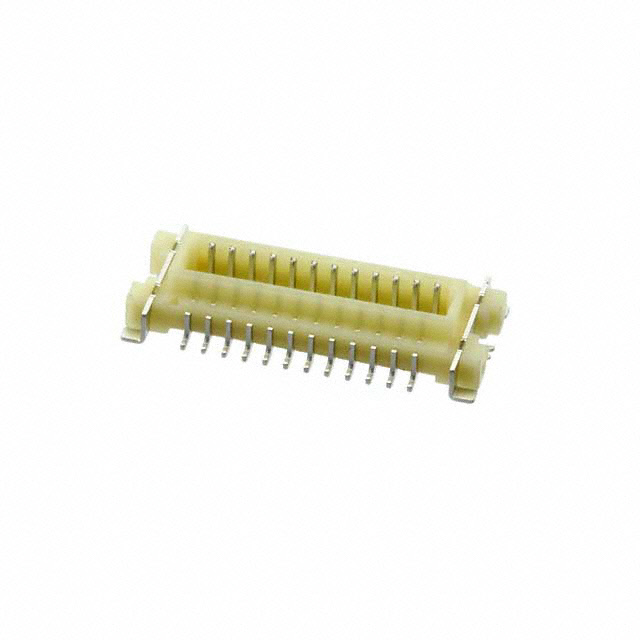

TE Connectivity Raychem Cable Protection 2-1775014-4	Tin	24	0.094 "	2.4 mm	2.54 µm	100 µin	0.8 mm	0.031 in	Board Guide Solder Retention	Outer Shroud Contacts Plug	2	Surface Mount	3 mm

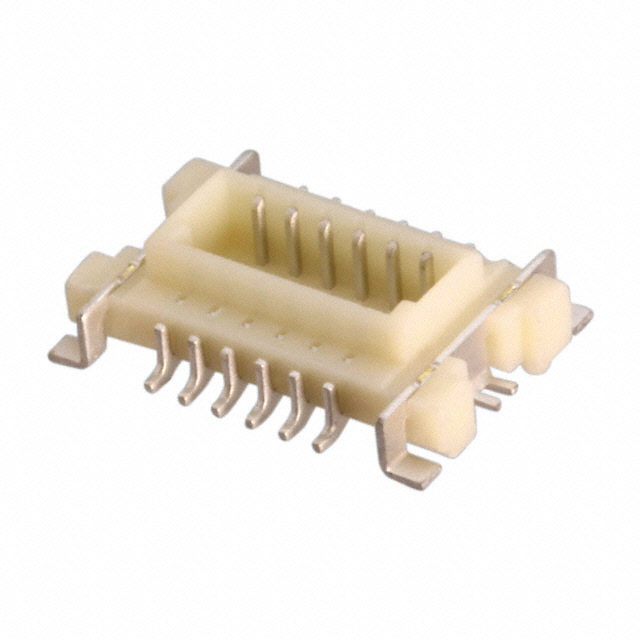

TE Connectivity Raychem Cable Protection 5-1775014-4	Tin	12	0.094 "	2.4 mm	2.54 µm	100 µin	0.8 mm	0.031 in	Board Guide Solder Retention	Outer Shroud Contacts Plug	2	Surface Mount	3 mm

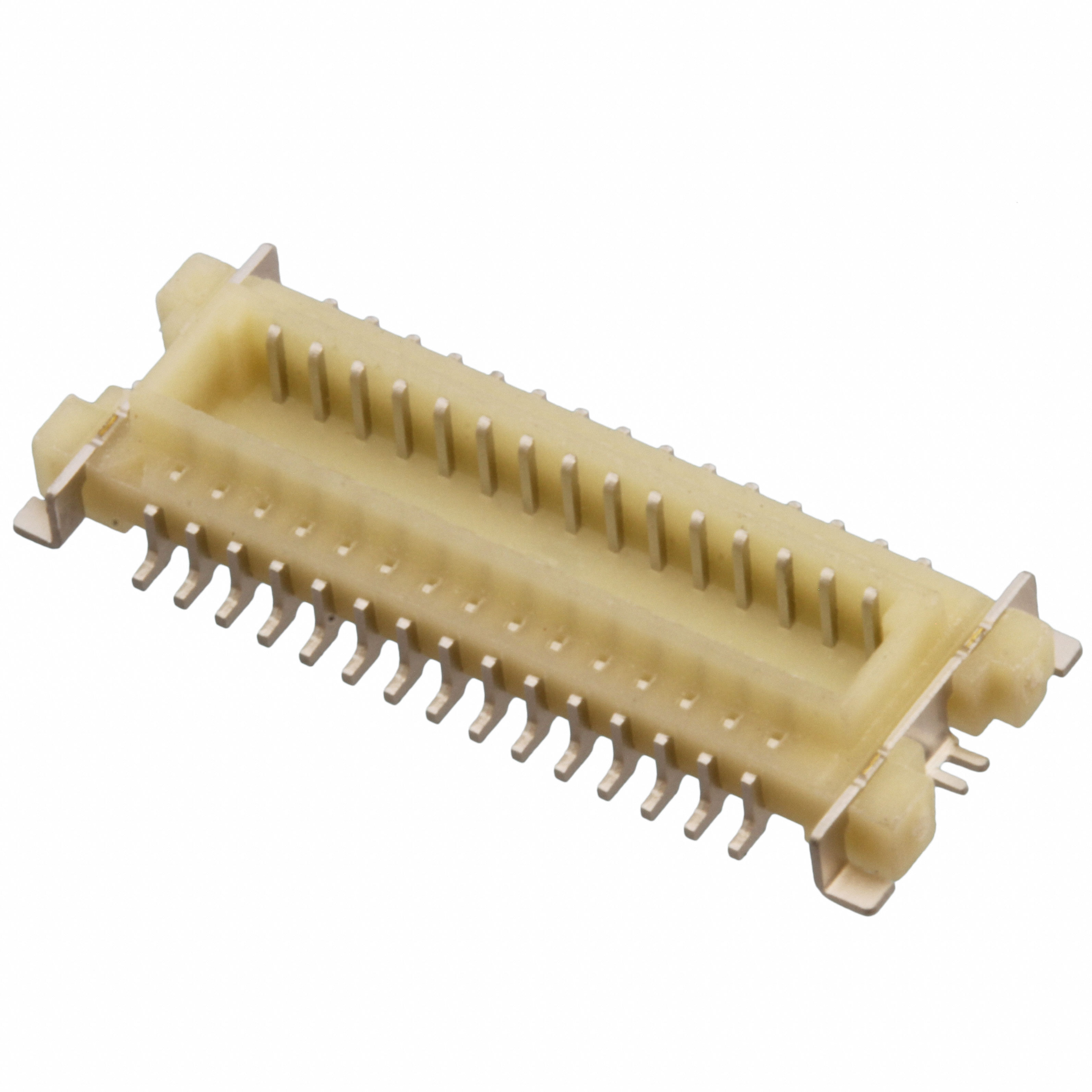

TE Connectivity Raychem Cable Protection 1775014-7	Tin	30	0.094 "	2.4 mm	2.54 µm	100 µin	0.8 mm	0.031 in	Board Guide Solder Retention	Outer Shroud Contacts Plug	2	Surface Mount	3 mm

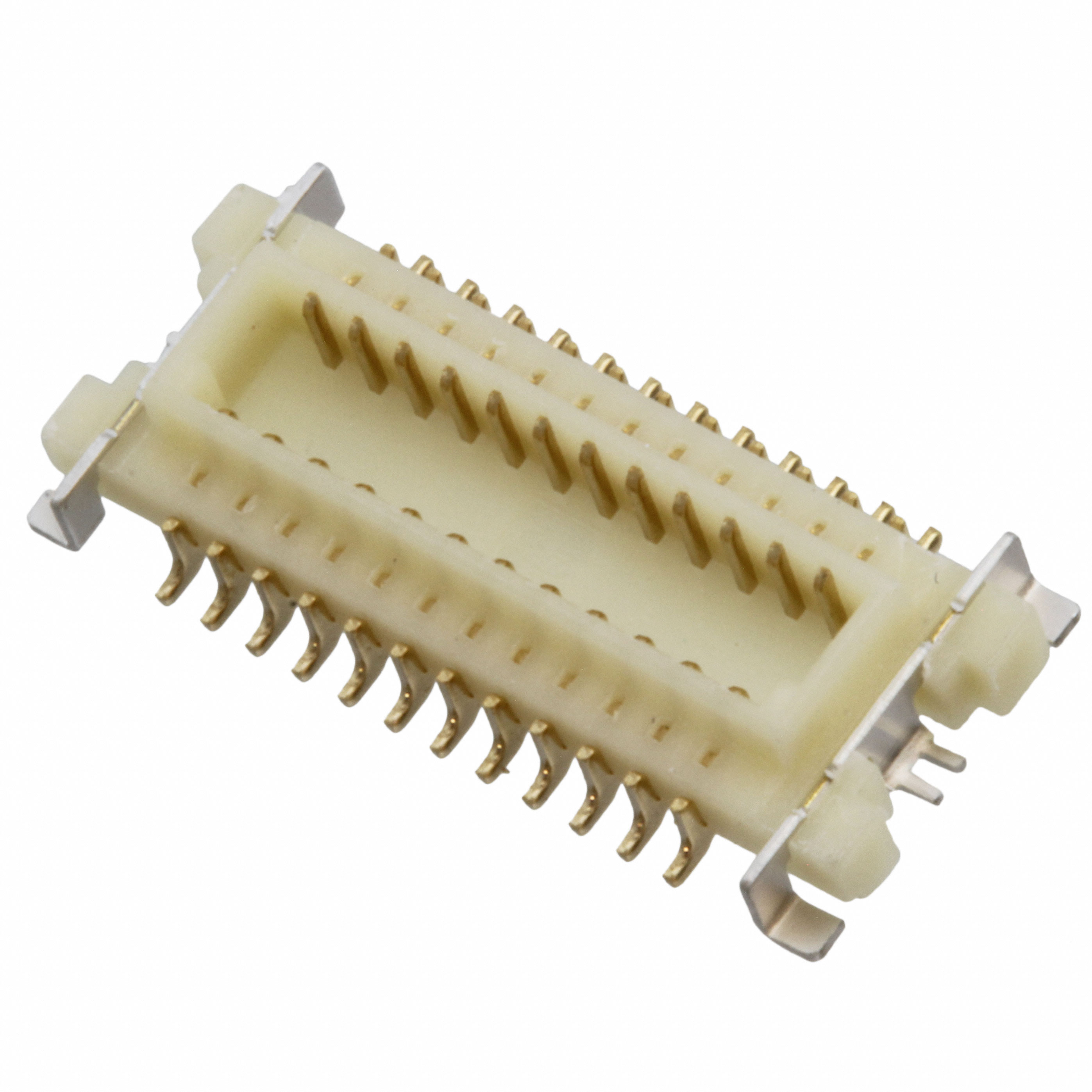

TE Connectivity Raychem Cable Protection 1775014-2	Gold	24	0.094 "	2.4 mm			0.8 mm	0.031 in	Board Guide Solder Retention	Outer Shroud Contacts Plug	2	Surface Mount	3 mm	Flash
