RI-69GP Series
Manufacturer: Comus International
Beta
⌘K

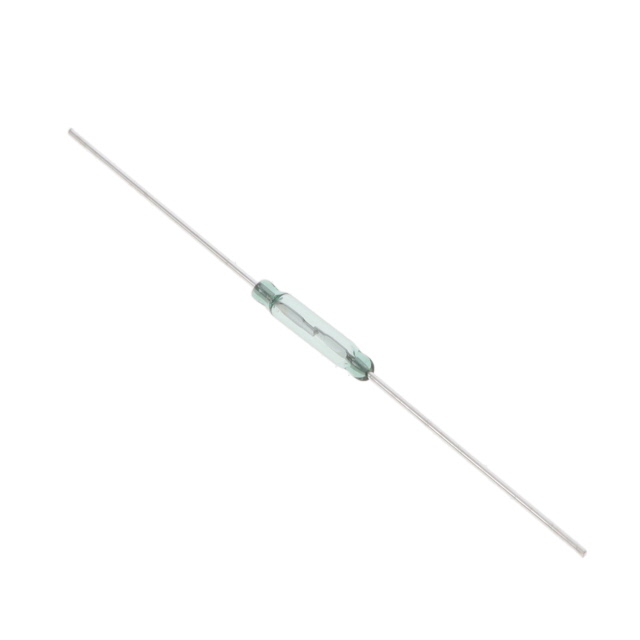

SWITCH REED SPST-NO 700MA 140V
| Part | Power - Rated | Capacitance | Release Range [Max] | Release Range [Min] | Type | Current - Switching | Current - Carry | Operate Time | Mounting Type | Size - Body [x] | Size - Body [diameter] | Size - Body [diameter] | Size - Body [x] | Operate Range [Max] | Operate Range [Min] | Voltage - Switching DC | Termination Style | Circuit | Voltage - Switching AC [custom] | Length - Overall [x] | Length - Overall [x] | Release Time | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | 20 W | 0.25 pF | 16 AT | 3 | Glass Body Reed | 1 A 700 mA | 1 A | 0.15 ms | Through Hole | 9.91 mm | 0.071 " | 1.8 mm | 0.39 " | 20 AT | 15 AT | 200 V | Axial | SPST-NO | 140 V | 1.811 in | 46 mm | 0.02 ms | -55 C | 75 ░C |
