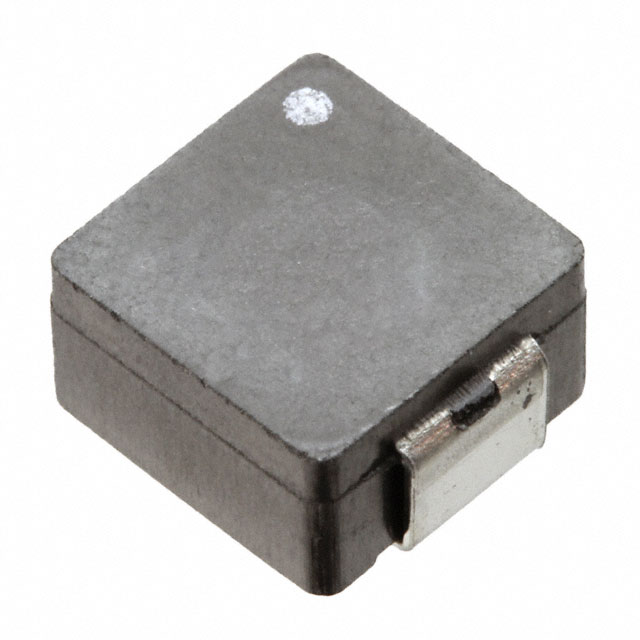

MPLCH0740 Series
Manufacturer: KEMET
Beta
⌘K
FIXED IND 4.7UH 5.8A 33 MOHM SMD
| Part | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) | Height - Seated (Max) [Max] | Inductance | Package / Case | DC Resistance (DCR) | Current - Saturation (Isat) | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Shielding | Inductance Frequency - Test | Type | Current Rating (Amps) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 20 % | 120 °C | -20 ░C | 4 mm | 0.157 in | 4.7 ÁH | Nonstandard | 33 mOhm | 6.5 A | Surface Mount | 0.307 " | 0.264 " | 6.7 mm | 7.8 mm | Shielded | 100 kHz | Wirewound | 5.8 A | |
 KEMET | 20 % | 120 °C | -20 ░C | 4 mm | 0.157 in | 1.5 µH | Nonstandard | 10.8 A | Surface Mount | 0.307 " | 0.264 " | 6.7 mm | 7.8 mm | Shielded | 100 kHz | Wirewound | 11.1 A | 9 mOhm | |
 KEMET | 20 % | 120 °C | -20 ░C | 4 mm | 0.157 in | 3.3 µH | Nonstandard | 19 mOhm | 7 A | Surface Mount | 0.307 " | 0.264 " | 6.7 mm | 7.8 mm | Shielded | 100 kHz | Wirewound | 7.8 A |
