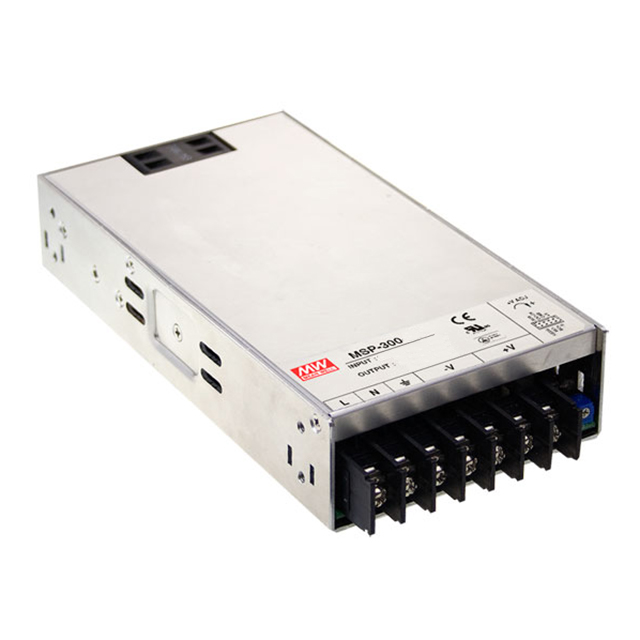

MSP-300 Series

Catalog

AC/DC CONVERTER 3.3V 198W

Part	Current - Output 1	Efficiency	Voltage - Isolation	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Output 1	Approval Agency	Power (Watts)	Type	Features	Number of Outputs	Voltage - Output 1 [custom]	Current - Output 1 [custom]
MEAN WELL USA Inc. MSP-300-3.3	60 A	80 %	4000 V	Chassis Mount	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Medical	3.3 V	CB CE cURus TUV	198 W	Enclosed	Adjustable Output PFC Remote On/Off Universal Input	1
MEAN WELL USA Inc. MSP-300-36	9 A	88 %	4000 V	Chassis Mount	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Medical		CB CE cURus TUV	324 W	Enclosed	Adjustable Output PFC Remote On/Off Universal Input	1	36 V
MEAN WELL USA Inc. MSP-300-24		87 %	4000 V	Chassis Mount	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Medical	24 V	CB CE cURus TUV	336 W	Enclosed	Adjustable Output PFC Remote On/Off Universal Input	1		14 A
MEAN WELL USA Inc. MSP-300-48	7 A	89 %	4000 V	Chassis Mount	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Medical	48 V	CB CE cURus TUV	336 W	Enclosed	Adjustable Output PFC Remote On/Off Universal Input	1
MEAN WELL USA Inc. MSP-300-5	60 A		4000 V	Chassis Mount	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Medical	5 V	CB CE cURus TUV	300 W	Enclosed	Adjustable Output PFC Remote On/Off Universal Input	1
MEAN WELL USA Inc. MSP-300-15	22 A	88 %	4000 V	Chassis Mount	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Medical	15 V	CB CE cURus TUV	330 W	Enclosed	Adjustable Output PFC Remote On/Off Universal Input	1
MEAN WELL USA Inc. MSP-300-7.5	40 A	86 %	4000 V	Chassis Mount	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Medical	7.5 V	CB CE cURus TUV	300 W	Enclosed	Adjustable Output PFC Remote On/Off Universal Input	1
MEAN WELL USA Inc. MSP-300-12	27 A	88 %	4000 V	Chassis Mount	85 VAC 120 VDC	264 VAC 370 VDC	199 mm	1.61 "	105 mm	41 mm	4.13 in	7.83 in	Medical	12 V	CB CE cURus TUV	324 W	Enclosed	Adjustable Output PFC Remote On/Off Universal Input	1
