EB9A Series

Manufacturer: Adam Tech

Catalog

EURO BLOCK 4P

Part	Insulation Height	Insulation Height	Contact Material	Torque - Screw	Torque - Screw	Wire Strip Length [Min]	Wire Strip Length [Max]	Screw Size	Material Flammability Rating	Wire Gauge or Range - mm˛	Features	Plug Wire Entry	Pitch	Pitch	Voltage - UL	Type	Termination Style	Wire Gauge or Range - mm²	Positions Per Level	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Color	Number of Positions	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]

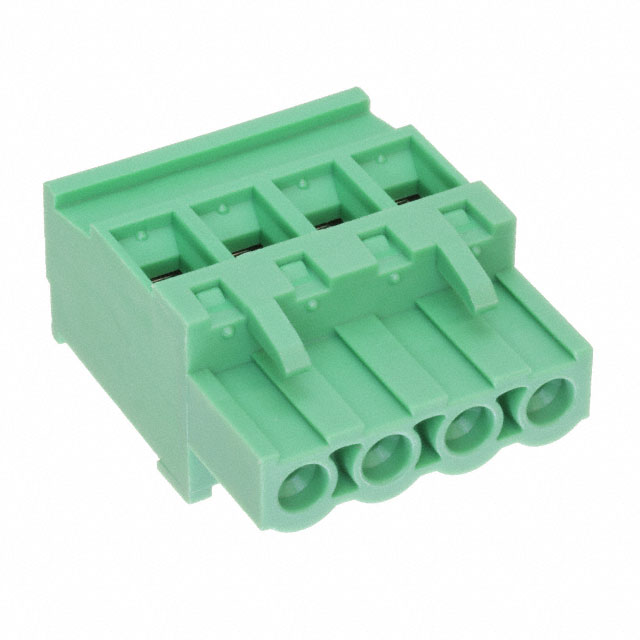

Adam Tech EB9A-04-D	26.01 mm	1.024 in	Brass	4.4 Lb-In	0.5 Nm	7 mm	8 mm	M3	UL94 V-0	2.5 mm˛	Retention Latches (Wire Side)	90 °	5.08 mm	0.2 in	300 V	Plug Female Sockets	Screw - Leaf Spring Wire Guard	2.5 mm²	4	Nickel	-40 C	105 ░C	1	Green	4	Free Hanging (In-Line)	14 AWG	28 AWG

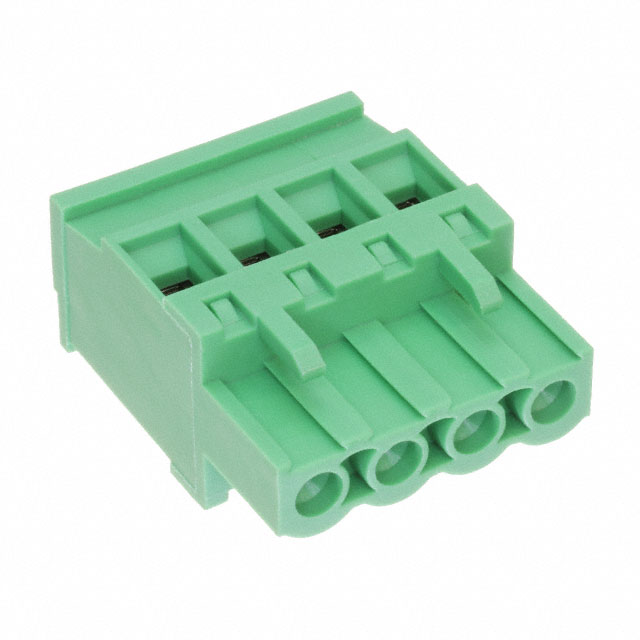

Adam Tech EB9A-04-C	26.01 mm	1.024 in	Brass	4.4 Lb-In	0.5 Nm	7 mm	8 mm	M3	UL94 V-0	2.5 mm˛	Retention Latches (Wire Side)	90 °	5 mm	0.197 in	300 V	Plug Female Sockets	Screw - Leaf Spring Wire Guard	2.5 mm²	4	Nickel	-40 C	105 ░C	1	Green	4	Free Hanging (In-Line)	14 AWG	28 AWG

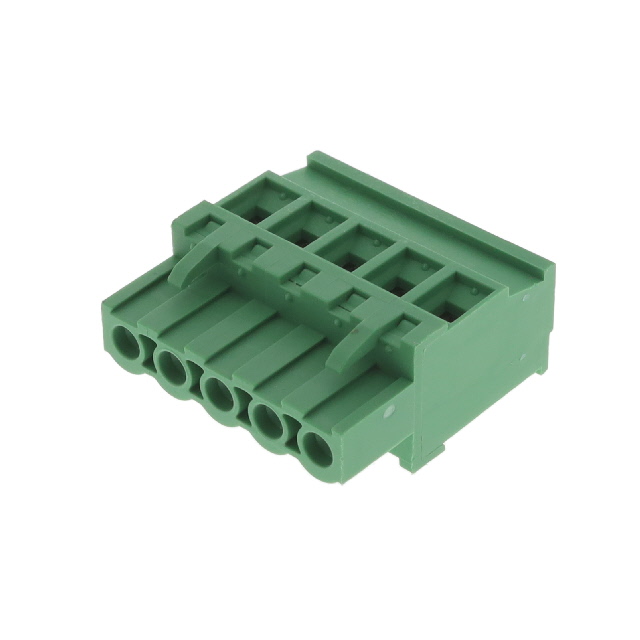

Adam Tech EB9A-05-D	26.01 mm	1.024 in	Brass	4.4 Lb-In	0.5 Nm	7 mm	8 mm	M3	UL94 V-0	2.5 mm˛	Retention Latches (Wire Side)	90 °	5.08 mm	0.2 in	300 V	Plug Female Sockets	Screw - Leaf Spring Wire Guard	2.5 mm²	5	Nickel	-40 C	105 ░C	1	Green	5	Free Hanging (In-Line)	14 AWG	28 AWG

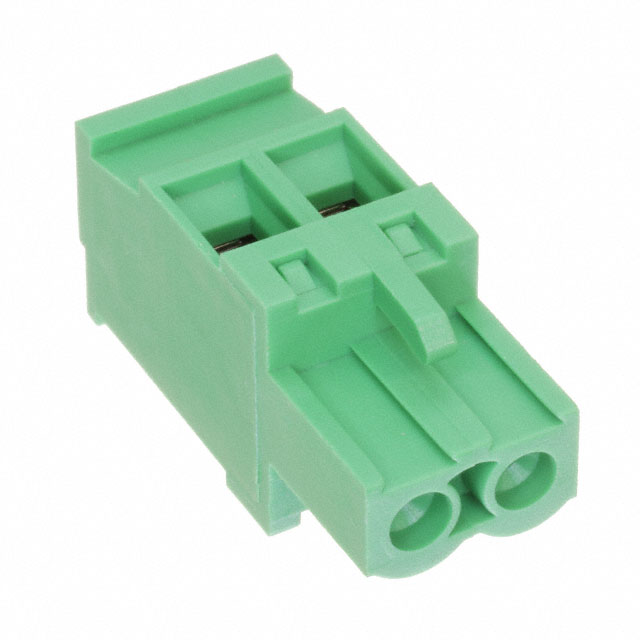

Adam Tech EB9A-02-C	26.01 mm	1.024 in	Brass	4.4 Lb-In	0.5 Nm	7 mm	8 mm	M3	UL94 V-0	2.5 mm˛	Retention Latches (Wire Side)	90 °	5 mm	0.197 in	300 V	Plug Female Sockets	Screw - Leaf Spring Wire Guard	2.5 mm²	2	Nickel	-40 C	105 ░C	1	Green	2	Free Hanging (In-Line)	14 AWG	28 AWG

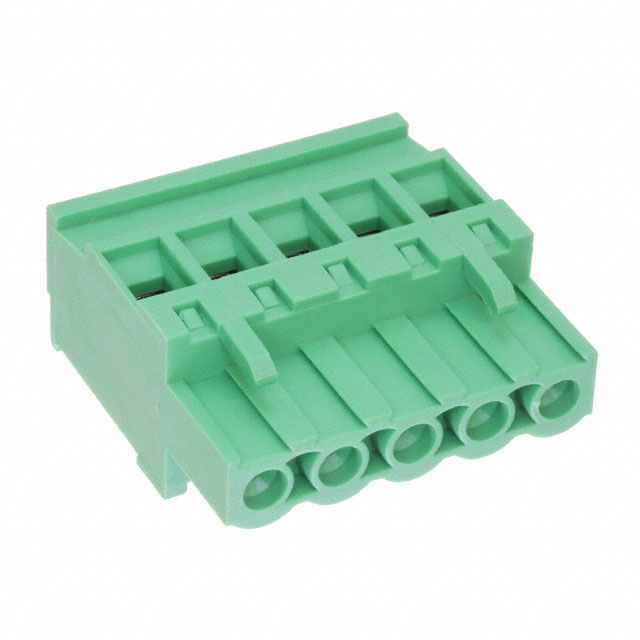

Adam Tech EB9A-05-C	26.01 mm	1.024 in	Brass	4.4 Lb-In	0.5 Nm	7 mm	8 mm	M3	UL94 V-0	2.5 mm˛	Retention Latches (Wire Side)	90 °	5 mm	0.197 in	300 V	Plug Female Sockets	Screw - Leaf Spring Wire Guard	2.5 mm²	5	Nickel	-40 C	105 ░C	1	Green	5	Free Hanging (In-Line)	14 AWG	28 AWG
