XZFMYK05 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7-SEG 0.2" SGL YLW 10SMD
| Part | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Wavelength - Peak | Color | Display Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Common Pin | Number of Characters | Power Dissipation (Max) [Max] | Millicandela Rating | Current - Test | Voltage - Forward (Vf) (Typ) | Number of Characters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

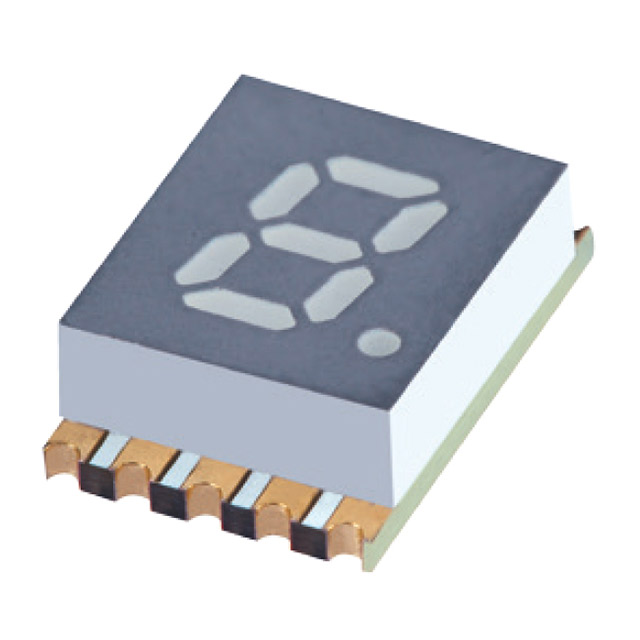

 SunLED | 10-SMD No Lead | 0.2 in | 5.08 mm | 590 nm | Yellow | 7-Segment | 6.9 mm | 0.394 in | 0.272 in | 0.118 in | 3 mm | 10 mm | Common Anode | 1 | 75 mw | 50 mcd | 10 mA | 1.95 V | |

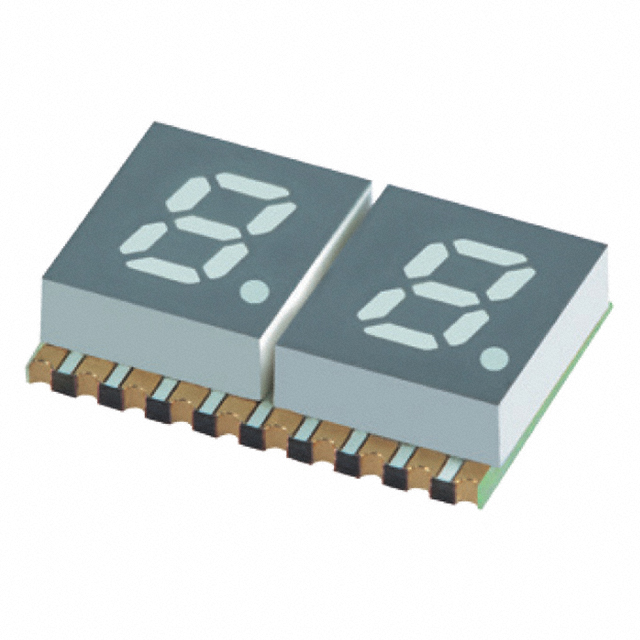

 SunLED | 20-SMD No Lead | 0.2 in | 5.08 mm | 590 nm | Yellow | 7-Segment | 14.1 mm | 0.315 in | 0.555 in | 0.118 in | 3 mm | 8 mm | Common Anode | 75 mw | 15 mcd | 10 mA | 1.95 V | 2 | |

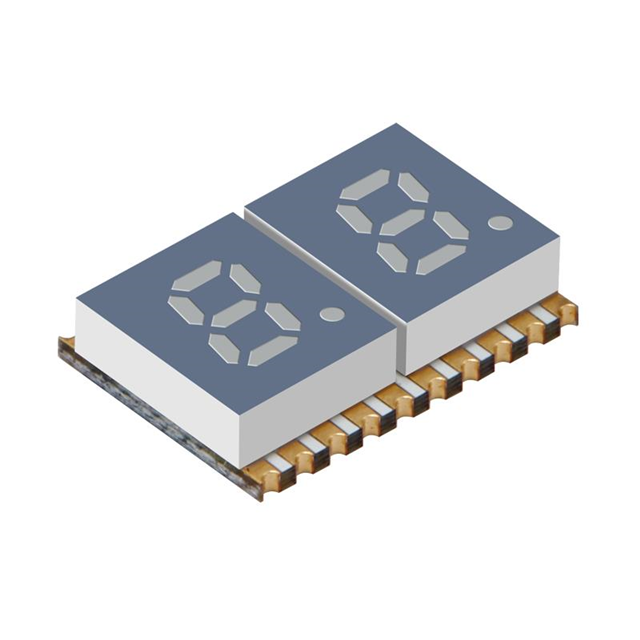

 SunLED | 20-SMD No Lead | 0.2 in | 5.08 mm | 590 nm | Yellow | 7-Segment | 14.1 mm | 0.118 " | 0.555 in | 0.394 " | 10 mm | 3 mm | Common Cathode | 75 mw | 15 mcd | 10 mA | 1.95 V | 2 |
