DSF-28 Series

Catalog

CMC 4.5A 2LN TH

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Number of Lines	DC Resistance (DCR) (Max) [Max]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)

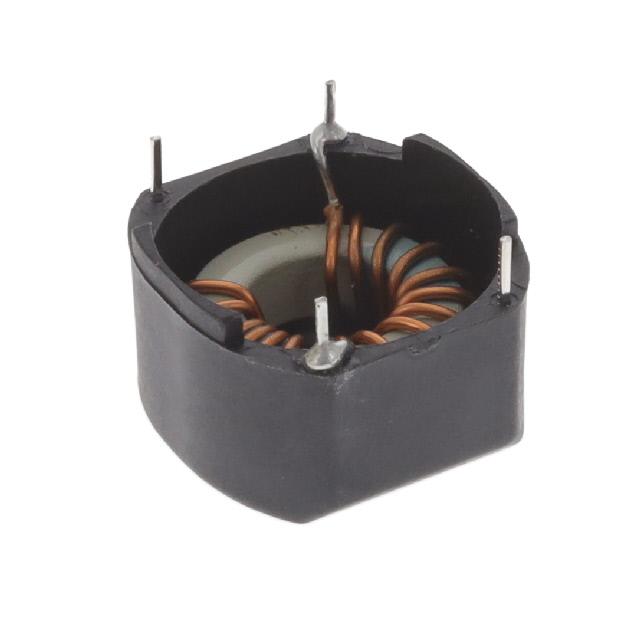

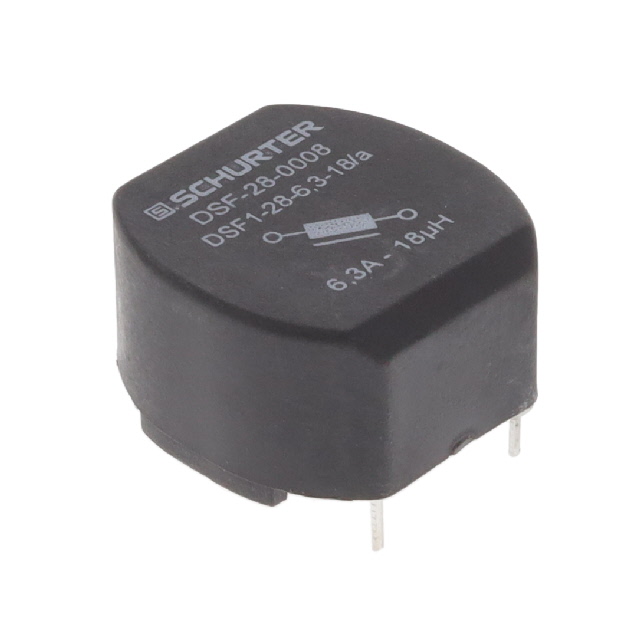

SCHURTER Inc. DSF-28-0008	27.4 mm	1.114 "	28.3 mm	1.079 in	600 V	2	10 mOhm	Nonstandard	Through Hole	125 °C	-40 C

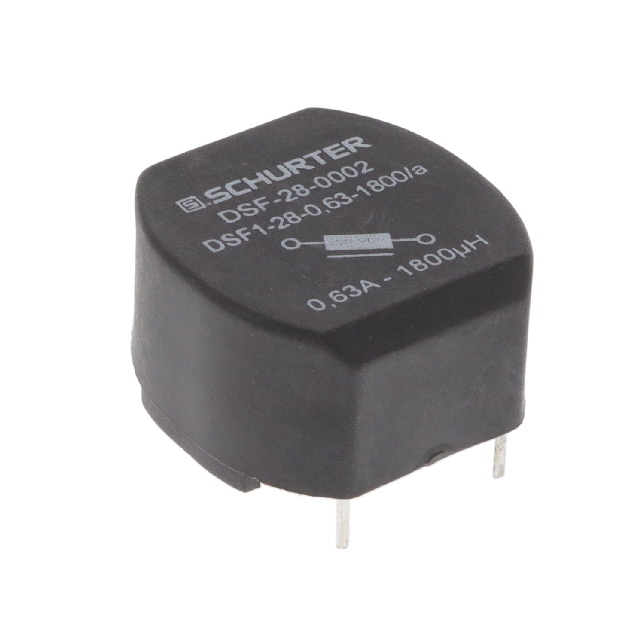

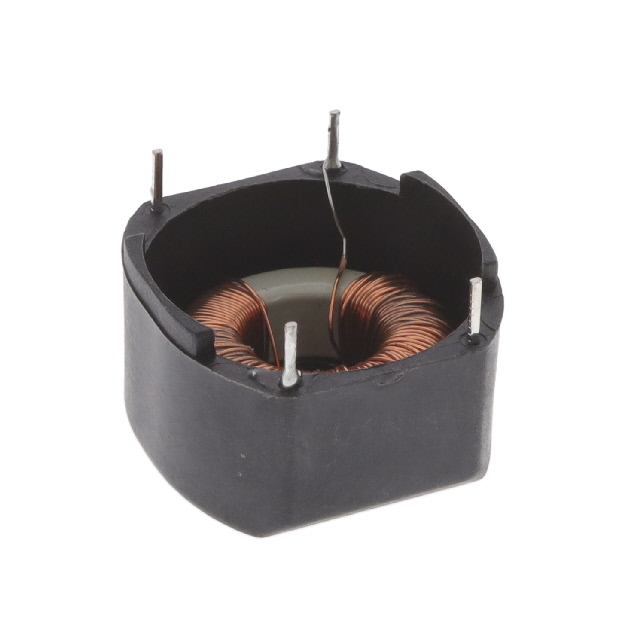

SCHURTER Inc. DSF-28-0002	27.4 mm	1.114 "	28.3 mm	1.079 in	600 V	2		Nonstandard	Through Hole	125 °C	-40 C

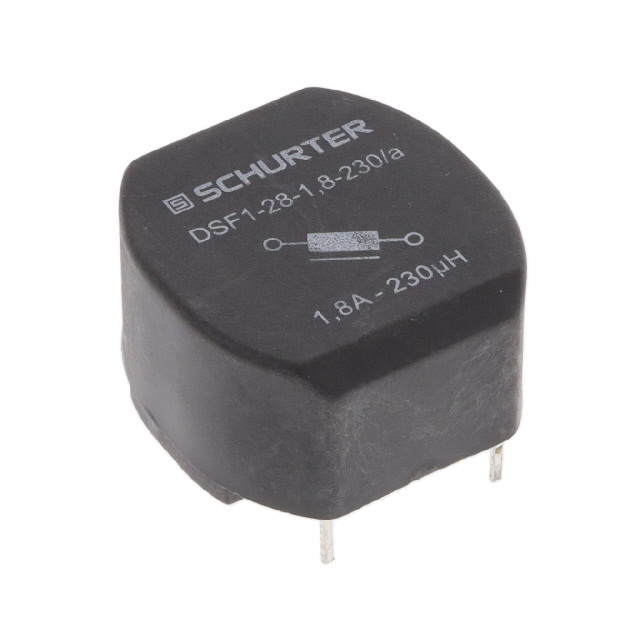

SCHURTER Inc. DSF-28-0005	27.4 mm	1.114 "	28.3 mm	1.079 in	600 V	2	125 mOhm	Nonstandard	Through Hole	125 °C	-40 C	1.8 A

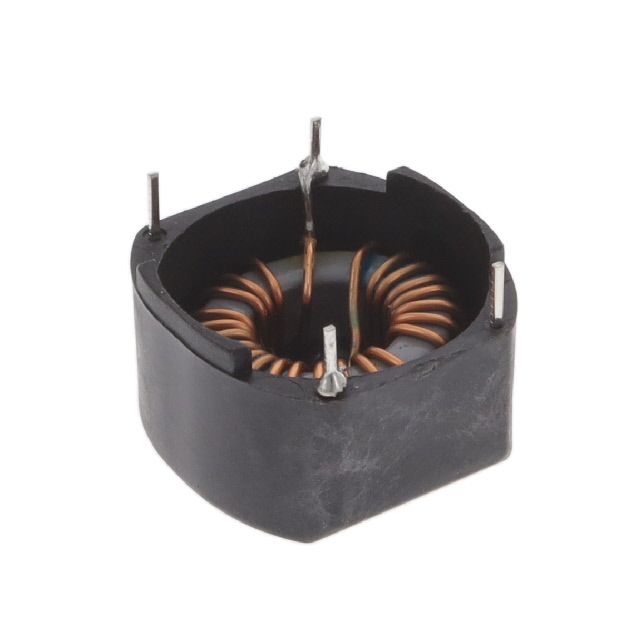

SCHURTER Inc. DSF-28-0007	27.4 mm	1.114 "	28.3 mm	1.079 in	600 V	2	10 mOhm	Nonstandard	Through Hole	125 °C	-40 C

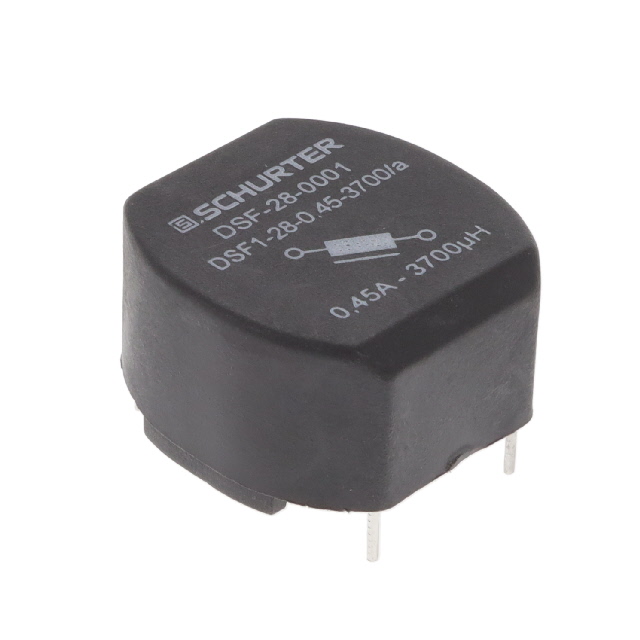

SCHURTER Inc. DSF-28-0001	27.4 mm	1.114 "	28.3 mm	1.079 in	600 V	2		Nonstandard	Through Hole	125 °C	-40 C	450 mA	1.9 Ohm
