745783 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

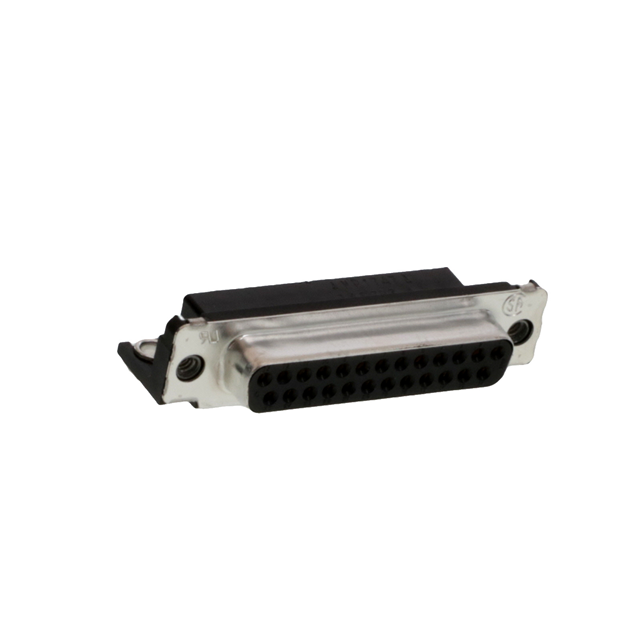

CONN D-SUB RCPT 25POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Voltage Rating | Color | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Mounting Type | Current Rating (Amps) | Backset Spacing | Backset Spacing | Contact Type | Termination | Material Flammability Rating | Contact Finish Thickness | Connector Style | Number of Positions | Features | Number of Rows [custom] | Contact Finish | Flange Feature | Flange Feature | Connector Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Phosphor Bronze | Thermoplastic | 125 VDC | Black | B DB | 3 | Right Angle Through Hole | 6 A | 8.08 mm | 0.318 " | Signal | Solder | UL94 V-0 | Flash | D-Sub | 25 | Ground Strap | 2 | Gold | Housing/Shell | 4-40 | Receptacle Female Sockets | ||
TE Connectivity AMP Connectors | -55 C | 105 ░C | Phosphor Bronze | Thermoplastic | 125 VDC | Black | B DB | 3 | Right Angle Through Hole | 6 A | 8.08 mm | 0.318 " | Signal | Solder | UL94 V-0 | D-Sub | 25 | Ground Strap | 2 | Gold | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 30 Áin | 0.76 Ám | ||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Phosphor Bronze | Thermoplastic | 125 VDC | Black | B DB | 3 | Right Angle Through Hole | 6 A | 8.08 mm | 0.318 " | Signal | Solder | UL94 V-0 | D-Sub | 25 | Ground Strap | 2 | Gold | Housing/Shell | 4-40 | Receptacle Female Sockets | 30 Áin | 0.76 Ám |
