LM48580 Series

Mono, analog input, ceramic speaker driver with integrated 30-V Class-H boost

Catalog

Mono, analog input, ceramic speaker driver with integrated 30-V Class-H boost

Part	Amplifier Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Utilized IC / Part	Output Type	Board Type	Supplied Contents	Type	Package / Case	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type

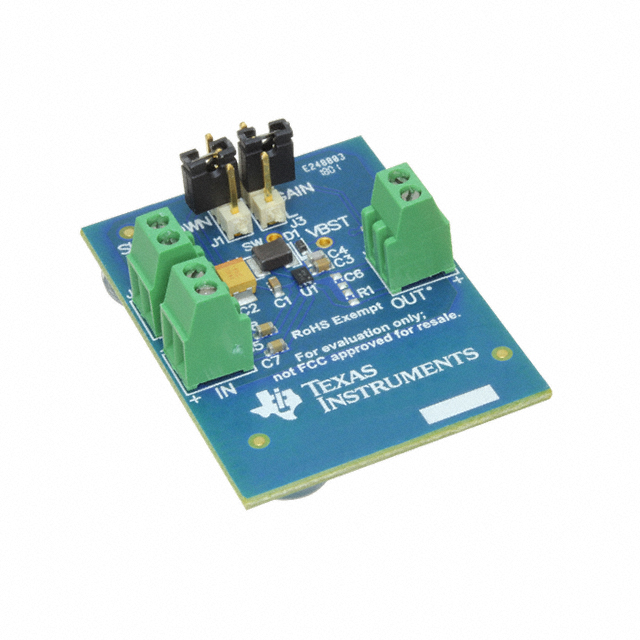

Texas Instruments LM48580EVM	Class H	2.5 V	5.5 V	LM48580	1-Channel (Mono)	Fully Populated	Board(s)
Texas Instruments LM48580TLBD/NOPB	Class H	2.5 V	5.5 V	LM48580	1-Channel (Mono)	Fully Populated	Board(s)
Texas Instruments LM48580TLX/NOPB		2.5 V	5.5 V		1-Channel (Mono)			Class H	12-WFBGA DSBGA	12-DSBGA	2.5	2	85 °C	-40 °C	Differential Inputs Shutdown Thermal Protection	Surface Mount
Texas Instruments LM48580TL/NOPB		2.5 V	5.5 V		1-Channel (Mono)			Class H	12-WFBGA DSBGA	12-DSBGA	2.5	2	85 °C	-40 °C	Differential Inputs Shutdown Thermal Protection	Surface Mount

Catalog

Mono, analog input, ceramic speaker driver with integrated 30-V Class-H boost

Key Features

• Class H DriverIntegrated Boost ConverterBridge-tied Load OutputDifferential InputThree Pin-Programmable GainsLow Supply CurrentMinimum External componentsMicro-Power ShutdownThermal Overload ProtectionAvailable in Space-Saving 12-bump DSBGA PackageClass H DriverIntegrated Boost ConverterBridge-tied Load OutputDifferential InputThree Pin-Programmable GainsLow Supply CurrentMinimum External componentsMicro-Power ShutdownThermal Overload ProtectionAvailable in Space-Saving 12-bump DSBGA Package

Description

The LM48580 is a fully differential, high voltage driver for piezo actuators and ceramic speakers for portable multi-media devices. Part of TI’s Powerwise™ product line, the LM48580 Class H architecture offers significant power savings compared to traditional Class AB amplifiers. The device provides 30VP-P output drive while consuming just 15mW of quiescent power. The LM48580 is a single supply driver with an integrated boost converter which allows the device to deliver 30VP-P from a single 3.6V supply. The LM48580 has three pin-programmable gain settings and a low power Shutdown mode that reduces quiescent current consumption to 0.1µA. The LM48580 is available in an ultra-small 12-bump DSBGA package. The LM48580 is a fully differential, high voltage driver for piezo actuators and ceramic speakers for portable multi-media devices. Part of TI’s Powerwise™ product line, the LM48580 Class H architecture offers significant power savings compared to traditional Class AB amplifiers. The device provides 30VP-P output drive while consuming just 15mW of quiescent power. The LM48580 is a single supply driver with an integrated boost converter which allows the device to deliver 30VP-P from a single 3.6V supply. The LM48580 has three pin-programmable gain settings and a low power Shutdown mode that reduces quiescent current consumption to 0.1µA. The LM48580 is available in an ultra-small 12-bump DSBGA package.
