IL-Y-3 Series

Catalog

CONN HEADER R/A 3POS 1.5MM

Part	Contact Material	Connector Type	Current Rating (Amps)	Fastening Type	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Style	Termination	Insulation Height	Insulation Height	Number of Rows	Material Flammability Rating	Insulation Material	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Mated Stacking Heights	Insulation Height	Voltage Rating

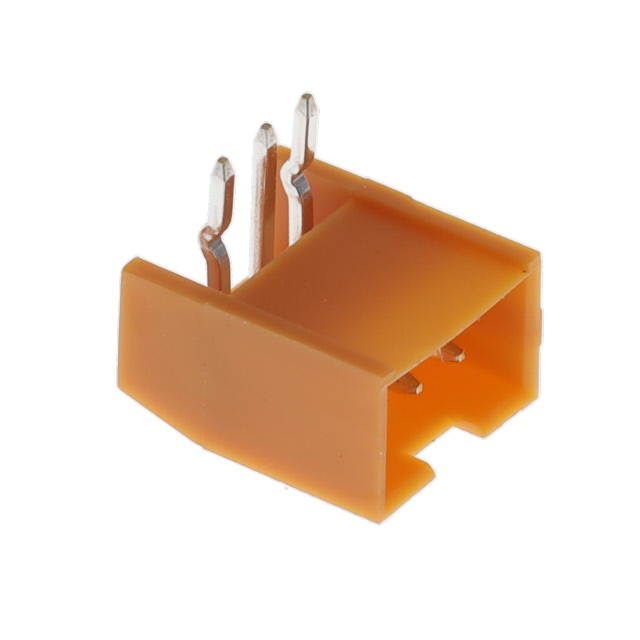

JAE Electronics IL-Y-3P-S15L2-EF	Brass	Header	1 A	Friction Lock	Tin	Right Angle Through Hole	All	3 mm	0.118 in	Board to Cable/Wire	Kinked Pin Solder	3.75 mm	0.148 in	1	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Shrouded - 4 Wall	85 °C	-40 C	Square	Brown	0.106 in	2.69 mm	Male Pin
JAE Electronics IL-Y-3P-S15T2-EF	Brass	Header		Friction Lock	Tin	Through Hole	All	3 mm	0.118 in	Board to Cable/Wire	Kinked Pin Solder		5.3 mm	1	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Shrouded - 4 Wall	85 °C	-40 C	Square	Brown	0.106 in	2.69 mm	Male Pin	6.3 mm	0.209 in	200 V
JAE Electronics IL-Y-3P-S15L2-EF-2	Brass	Header		Friction Lock	Tin	Right Angle Through Hole	All	3 mm	0.118 in	Board to Cable/Wire	Kinked Pin Solder		3.7 mm	1	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Shrouded - 4 Wall			Square	Brown	0.106 in	2.69 mm	Male Pin		0.146 in
JAE Electronics IL-Y-3P-S15T2-EF-2	Brass	Header		Friction Lock	Tin	Through Hole	All	3 mm	0.118 in	Board to Cable/Wire	Kinked Pin Solder		5.3 mm	1	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Shrouded - 4 Wall	85 °C	-40 C	Square	Brown	0.106 in	2.69 mm	Male Pin	6.3 mm	0.209 in	200 V
