19200031 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, M25, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER, 3A

Part	Connector Type	Housing Material	Housing Finish	Housing Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size	Lock Location	Thread Size	Features	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Size

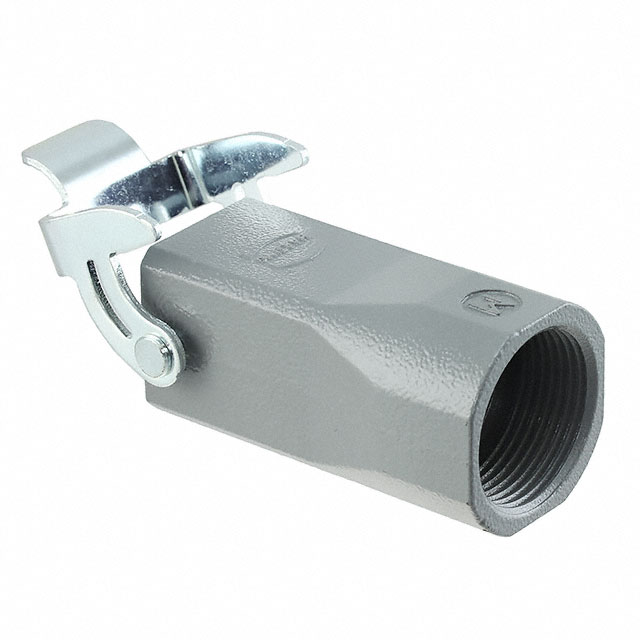

HARTING 19200031755	Hood - Coupling Hood/Housing - Coupling	Zinc Die Cast	Powder Coated	Gray	57 mm	29 mm	2.244 "	1.142 in	1.142 in	29 mm	3 A	Locking Clip (1) on Hood	M25	Cable to Cable	IP44	125 °C	-40 C
HARTING 19200031440	Hood	Zinc Die Cast	Powder Coated	Gray	60 mm	28 mm	2.362 in	1.102 "	1.063 in	27 mm	3 A	Locking Clip (1) on Base Bottom	M20		IP44	125 °C	-40 C	Top Entry

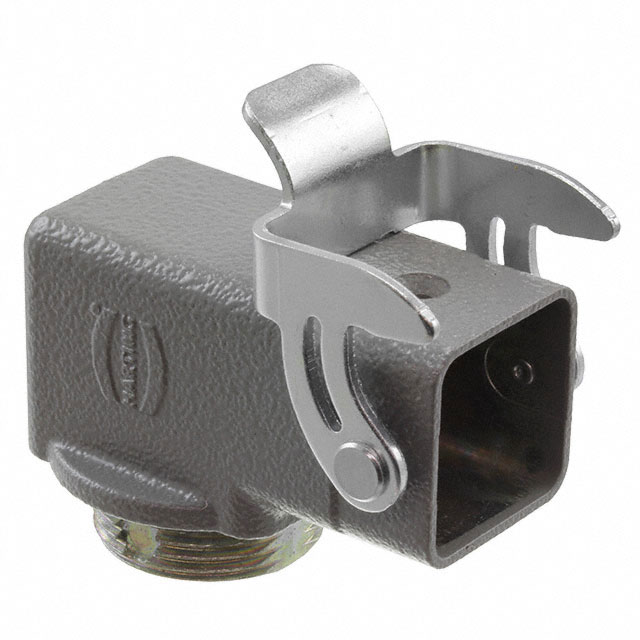

HARTING 19200031165	Base - Panel Mount 90° Bulkhead	Zinc Die Cast	Powder Coated	Gray							3 A	Locking Clip (1) on Base Bottom	PG11		IP44	125 °C	-40 C	Side Entry

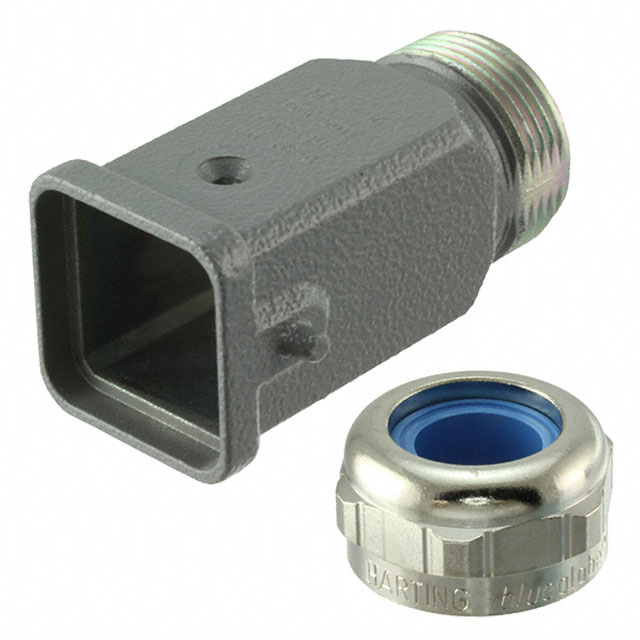

HARTING 19200031422	Hood	Zinc Die Cast	Powder Coated	Gray							3 A	Locking Clip (1) on Base Bottom	M25		IP44	125 °C	-40 C	Top Entry
HARTING 19200031120	Hood - Panel Mount Hood/Housing - Panel Mount	Zinc Die Cast	Powder Coated	Gray	57.6 mm	35 mm	2.268 in	1.378 in	2.126 "	54 mm	3 A	Locking Clip (1) on Hood Top	M20		IP44	125 °C	-40 C

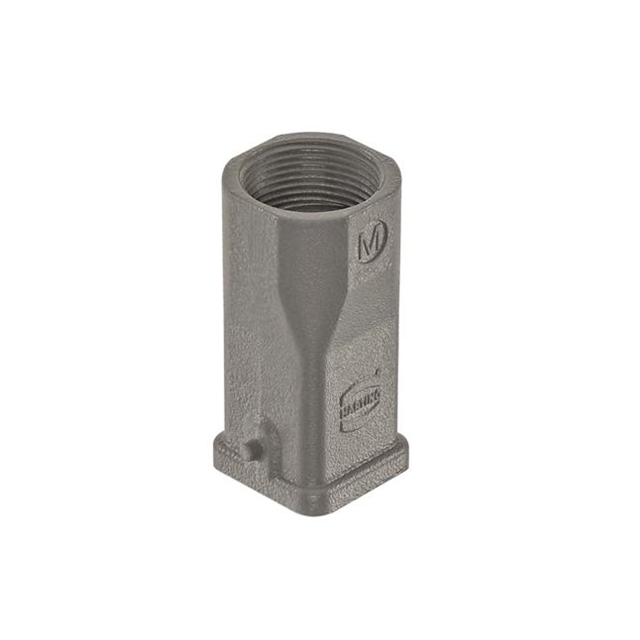

HARTING 19200031447	Hood	Zinc Die Cast		Gray								Locking Clip (1) on Base Bottom	M25		IP44	125 °C	-40 C	Top Entry	A3

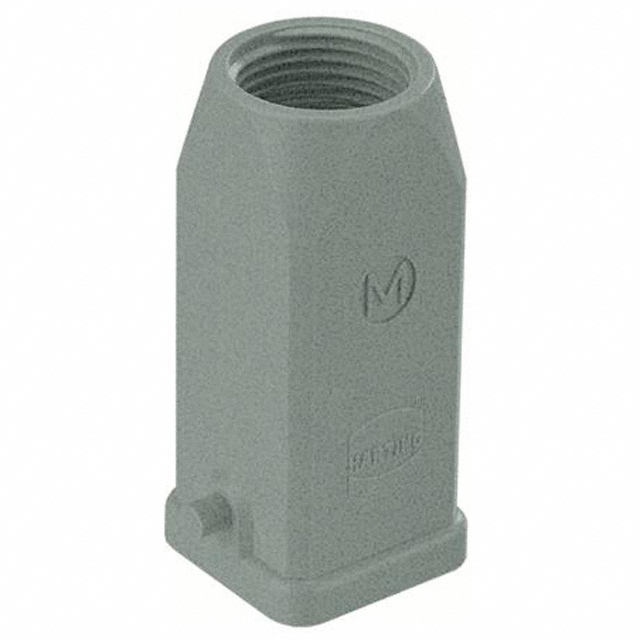

HARTING 19200031443	Hood	Zinc Die Cast	Powder Coated	Gray	60 mm	28 mm	2.362 in	1.102 "	1.063 in	27 mm	3 A	Locking Clip (1) on Base Bottom	M20		IP44	125 °C	-40 C	Top Entry
HARTING 19200031250	Base - Panel Mount 90°	Zinc Die Cast	Powder Coated	Gray	27.2 mm	40 mm	1.071 in	1.575 "	1.102 "	28 mm	3 A	Locking Clip (1) on Base Bottom	M20		IP44	125 °C	-40 C	Side Entry

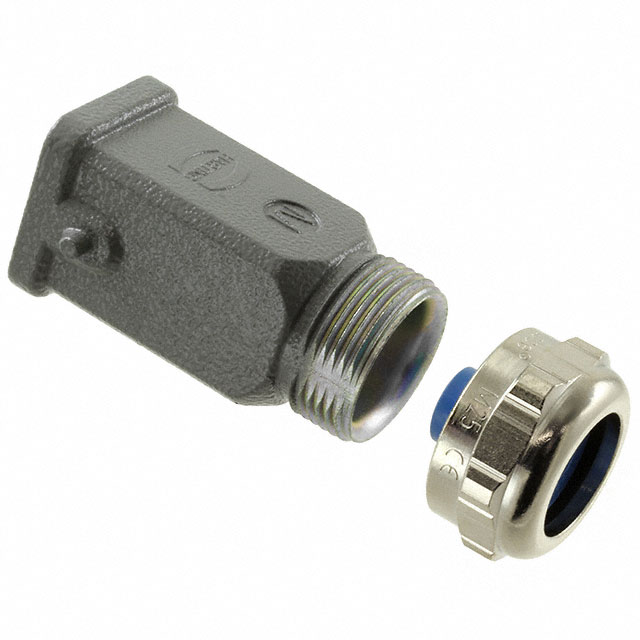

HARTING 19200031421	Hood	Zinc Die Cast	Powder Coated	Gray							3 A	Locking Clip (1) on Base Bottom	M25		IP44	125 °C	-40 C	Top Entry

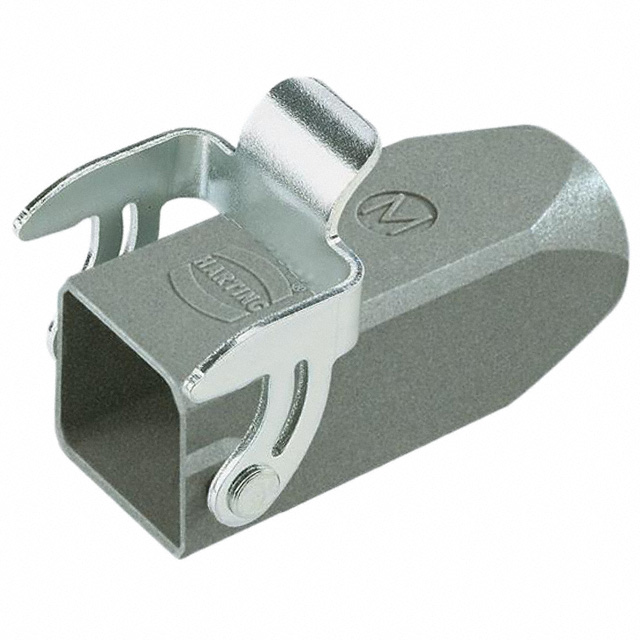

HARTING 19200031750	Hood - Coupling Hood/Housing - Coupling	Zinc Die Cast	Powder Coated	Gray	57 mm	24.2 mm	2.244 "	0.953 in	0.953 in	24.2 mm	3 A	Locking Clip (1) on Hood Top	M20	Cable to Cable	IP44	125 °C	-40 C
