146501 Series

Headers & Wire Housings 12 MODII HDR DRST B/A W/HD

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

Headers & Wire Housings 12 MODII HDR DRST B/A W/HD

Catalog

Headers & Wire Housings 12 MODII HDR DRST B/A W/HD

Part	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Number of Positions	Pitch [x]	Pitch [x]	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Number of Rows	Length - Tail	Length - Tail	Color	Mounting Type	Number of Positions

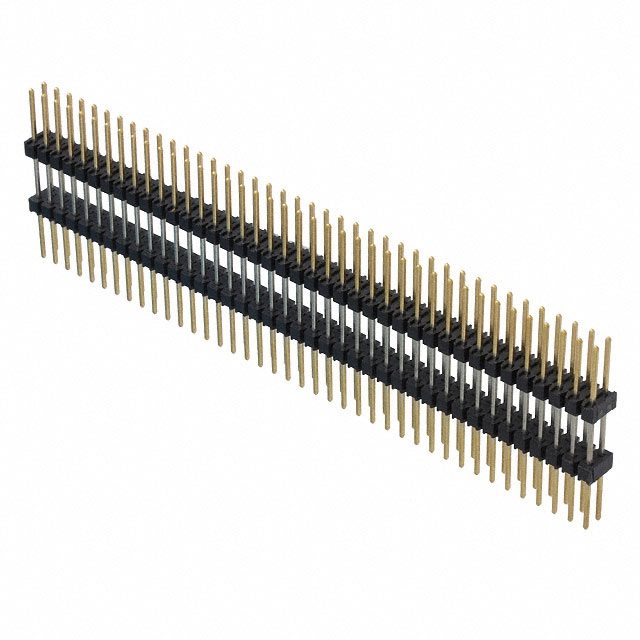

TE Connectivity Raychem Cable Protection 4-146501-0	Gold	1.13 in	28.7 mm	80	2.54 mm	0.1 in	Solder	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	11.938 mm	0.47 in	2	0.33 in	8.382 mm	Black	Through Hole
TE Connectivity Raychem Cable Protection 146501-8	Gold	1.13 in	28.7 mm		2.54 mm	0.1 in	Solder	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	11.938 mm	0.47 in	2	0.33 in	8.382 mm	Black	Through Hole	16
TE Connectivity Raychem Cable Protection 2-146501-0	Gold	1.13 in	28.7 mm	40	2.54 mm	0.1 in	Solder	0.38 Ám	15 Áin	0.1 in	2.54 mm	0.33 in	8.382 mm	11.938 mm	0.47 in	2	0.33 in	8.382 mm	Black	Through Hole
