OSTOQ09 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

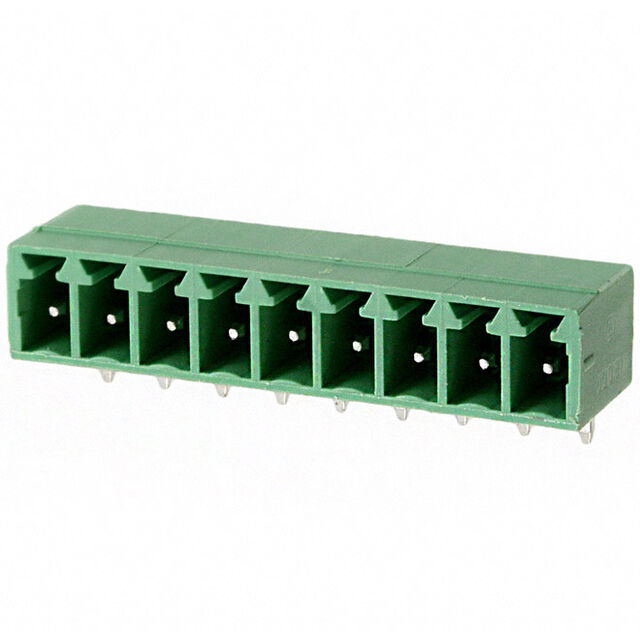

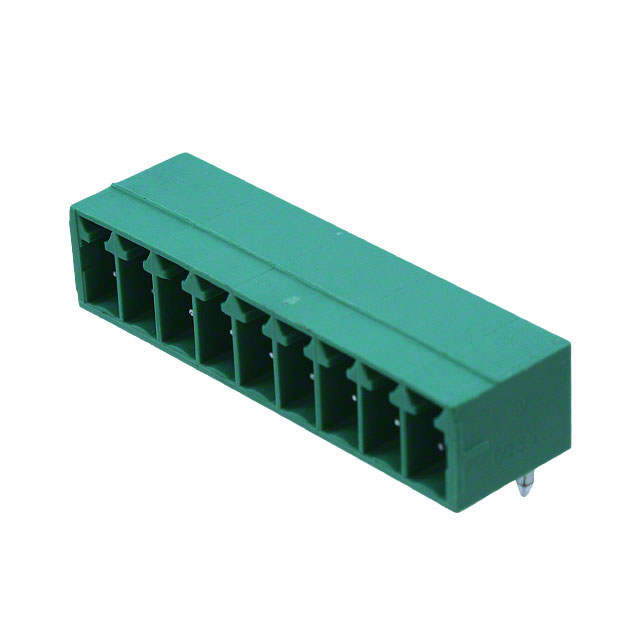

TERM BLOCK HDR 9POS 90DEG 7.62MM
| Part | Insulation Height [z] | Insulation Height [z] | Contact Material | Contact Tail Length | Contact Tail Length | Housing Material | Mounting Type | Contact Mating Finish | Number of Positions | Voltage - UL | Pitch | Pitch | Positions Per Level | Termination Style | Number of Levels | Type | Header Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 4 mm | 0.157 in | Brass | 0.157 in | 4 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.3 in | 7.62 mm | 9 | Solder | 1 | Header Male Pins Shrouded (4 Side) | 90° Right Angle | -30 ░C | 105 ░C | ||
On Shore Technology Inc. | 4 mm | 0.157 in | Brass | 0.157 in | 4 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.197 in | 5 mm | 9 | Solder | 1 | Header Male Pins Shrouded (2 Side) | 90° Right Angle | -30 ░C | 105 ░C | ||
On Shore Technology Inc. | 4 mm | 0.157 in | Brass | 0.157 in | 4 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.197 in | 5 mm | 9 | Solder | 1 | Header Male Pins Shrouded (4 Side) | 90° Right Angle | -30 ░C | 105 ░C | UL94 V-0 | Mating Flange |
On Shore Technology Inc. | 4 mm | 0.157 in | Brass | 0.157 in | 4 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.295 in | 7.5 mm | 9 | Solder | 1 | Header Male Pins Shrouded (4 Side) | 90° Right Angle | -30 ░C | 105 ░C | UL94 V-0 | Mating Flange |
On Shore Technology Inc. | 3.5 mm | 0.138 " | Brass | 0.138 in | 3.5 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.15 in | 3.81 mm | 9 | Solder | 1 | Header Male Pins Shrouded (4 Side) | Vertical | -30 ░C | 105 ░C | UL94 V-0 | Mating Flange |
On Shore Technology Inc. | 4 mm | 0.157 in | Brass | 0.157 in | 4 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.3 in | 7.62 mm | 9 | Solder | 1 | Header Male Pins Shrouded (4 Side) | Vertical | -30 ░C | 105 ░C | UL94 V-0 | Mating Flange |
On Shore Technology Inc. | 4 mm | 0.157 in | Brass | 0.157 in | 4 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.295 in | 7.5 mm | 9 | Solder | 1 | Header Male Pins Shrouded (2 Side) | Vertical | -30 ░C | 105 ░C | ||
 On Shore Technology Inc. | 3.5 mm | 0.138 " | Brass | 0.138 in | 3.5 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.15 in | 3.81 mm | 9 | Solder | 1 | Header Male Pins Shrouded (4 Side) | 90° Right Angle | -30 ░C | 105 ░C | ||
 On Shore Technology Inc. | 3.5 mm | 0.138 " | Brass | 0.138 in | 3.5 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.138 " | 3.5 mm | 9 | Solder | 1 | Header Male Pins Shrouded (4 Side) | 90° Right Angle | -30 ░C | 105 ░C | ||
On Shore Technology Inc. | 4 mm | 0.157 in | Brass | 0.157 in | 4 mm | Thermoplastic | Solder Through Hole | Tin | 9 | 300 V | 0.295 in | 7.5 mm | 9 | Solder | 1 | Header Male Pins Shrouded (4 Side) | Vertical | -30 ░C | 105 ░C |
