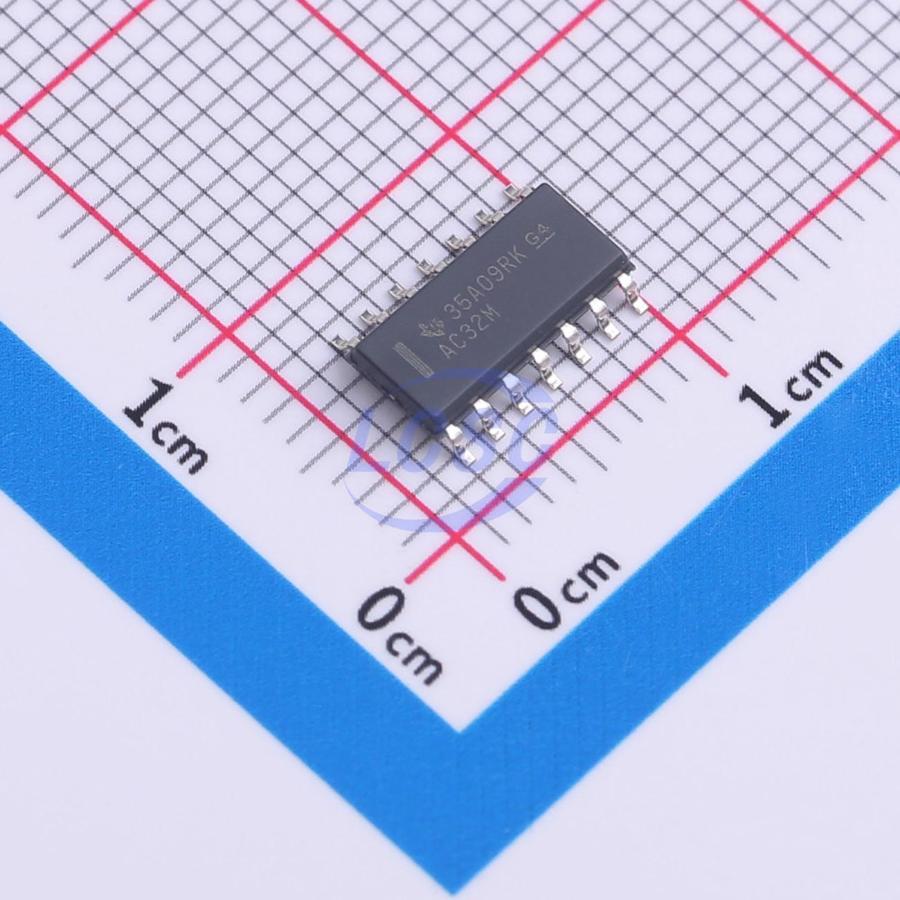

SN74AC32-EP Series

4-ch, 2-input, 2-V to 6-V high-speed (7 ns) 24-mA drive strength OR gate

Catalog

4-ch, 2-input, 2-V to 6-V high-speed (7 ns) 24-mA drive strength OR gate

Part	Package / Case [x]	Package / Case [y]	Package / Case	Max Propagation Delay @ V, Max CL	Number of Circuits	Current - Output High, Low	Operating Temperature [Max]	Operating Temperature [Min]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Logic Type	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Number of Inputs	Current - Quiescent (Max) [Max]	Package / Case [custom]	Package / Case [custom]	Supplier Device Package	Package / Case	Package / Case
Texas Instruments SN74AC32DRG4	0.154 in	3.9 mm	14-SOIC	7.5 ns	4	24 mA	85 °C	-40 °C	2.1 V	3.85 V	OR Gate	1.65 V	0.9 V	2 V	6 V	Surface Mount	2
Texas Instruments SN74AC32MDREP	0.154 in	3.9 mm	14-SOIC	7.5 ns	4	24 mA	125 °C	-55 °C	2.1 V	3.85 V	OR Gate	1.65 V	0.9 V	2 V	6 V	Surface Mount	2
Texas Instruments CD74AC32E	0.3 "	7.62 mm	14-DIP	9.5 ns	4	24 mA	125 °C	-55 °C	1.2 V	3.85 V	OR Gate	1.65 V	0.3 V	1.5 V	5.5 V	Through Hole	2	4 µA
Texas Instruments CD74AC32M96	0.154 in	3.9 mm	14-SOIC	9.5 ns	4	24 mA	125 °C	-55 °C	1.2 V	3.85 V	OR Gate	1.65 V	0.3 V	1.5 V	5.5 V	Surface Mount	2	4 µA
Texas Instruments SN74AC32PWR			14-TSSOP	7.5 ns	4	24 mA	85 °C	-40 °C	2.1 V	3.85 V	OR Gate	1.65 V	0.9 V	2 V	6 V	Surface Mount	2		0.173 "	4.4 mm	14-TSSOP
Texas Instruments SN74AC32DR	0.154 in	3.9 mm	14-SOIC	7.5 ns	4	24 mA	85 °C	-40 °C	2.1 V	3.85 V	OR Gate	1.65 V	0.9 V	2 V	6 V	Surface Mount	2
Texas Instruments SN74AC32PW			14-TSSOP	7.5 ns	4	24 mA	85 °C	-40 °C	2.1 V	3.85 V	OR Gate	1.65 V	0.9 V	2 V	6 V	Surface Mount	2		0.173 "	4.4 mm	14-TSSOP
Texas Instruments SN74AC32N	0.3 "	7.62 mm	14-DIP	7.5 ns	4	24 mA	85 °C	-40 °C	2.1 V	3.85 V	OR Gate	1.65 V	0.9 V	2 V	6 V	Through Hole	2
Texas Instruments SN74AC32DBR			14-SSOP	7.5 ns	4	24 mA	85 °C	-40 °C	2.1 V	3.85 V	OR Gate	1.65 V	0.9 V	2 V	6 V	Surface Mount	2				14-SSOP	5.3 mm	0.209 "
Texas Instruments CD74AC32EG4	0.3 "	7.62 mm	14-DIP	9.5 ns	4	24 mA	125 °C	-55 °C	1.2 V	3.85 V	OR Gate	1.65 V	0.3 V	1.5 V	5.5 V	Through Hole	2	4 µA

Catalog

4-ch, 2-input, 2-V to 6-V high-speed (7 ns) 24-mA drive strength OR gate

Key Features

• Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of –55°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree2-V to 6-V VCCOperationInputs Accept Voltages to 6 VMax tpdof 7.5 ns at 5 VComponent qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of –55°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree2-V to 6-V VCCOperationInputs Accept Voltages to 6 VMax tpdof 7.5 ns at 5 VComponent qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.

Description

The ’AC32 devices are quadruple 2-input positive-OR gates. These devices perform the Boolean function Y = A • B or Y = A + B in positive logic. The ’AC32 devices are quadruple 2-input positive-OR gates. These devices perform the Boolean function Y = A • B or Y = A + B in positive logic.
