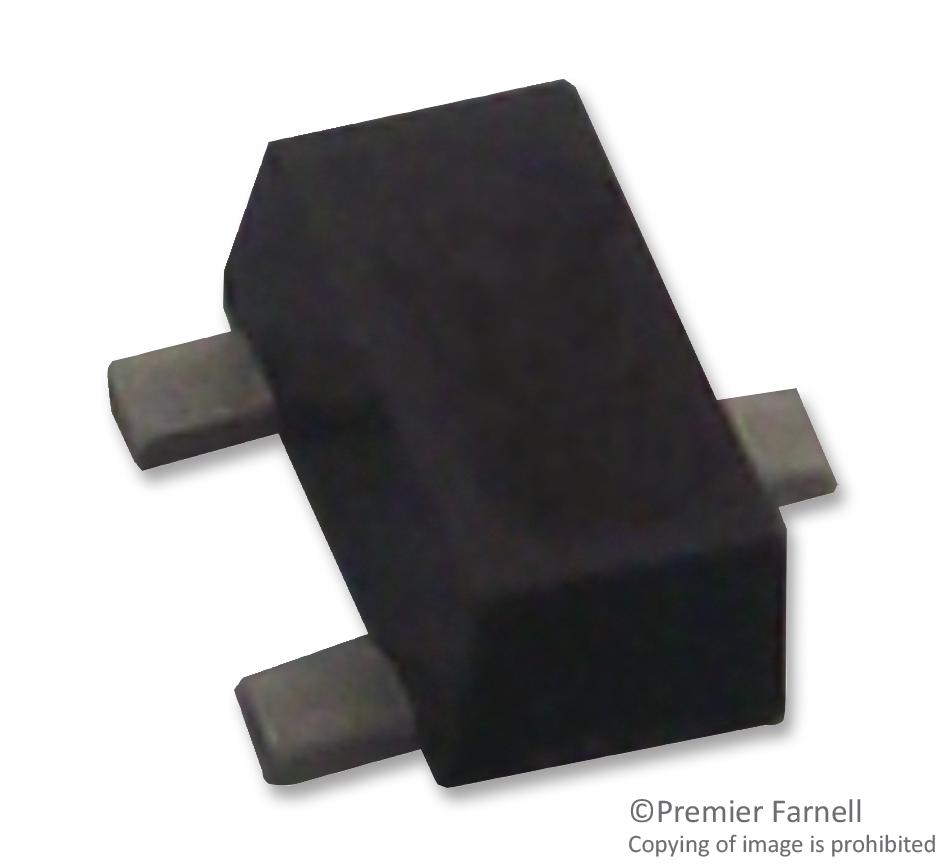

NZL7V5AXV3 Series

ESD Protection Common Anode Diodes

Catalog

ESD Protection Common Anode Diodes

Part	Qualification	Power - Peak Pulse	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Package / Case	Type	Voltage - Breakdown (Min) [Min]	Grade	Unidirectional Channels	Power Line Protection	Mounting Type	Voltage - Clamping (Max) @ Ipp	Current - Peak Pulse (10/1000µs)	Configuration	Voltage - Zener (Nom) (Vz)	Power - Max [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr
ON Semiconductor NZL7V5AXV3T1G	AEC-Q101	75 W	-55 °C	150 °C	SC-89-3	5 V	SC-89 SOT-490	Zener	7.12 V	Automotive	2		Surface Mount	8.8 V	13.5 A
ON Semiconductor SZNZL7V5AXV3T1G	AEC-Q101		-55 °C	150 °C	SC-89-3		SC-89 SOT-490			Automotive			Surface Mount			1 Pair Common Anode	7.5 V	240 mW	900 mV	1 µA

Catalog

ESD Protection Common Anode Diodes

Key Features

• SC-89 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration.

• Standard Zener Breakdown Voltage Ranges.

• ESD Rating of Class N (exceeding 16 kV) per Human Body model and IEC61000-4-2.

• Low Leakage, less than 5.0uA.

Description

These dual monolithic silicon zener diodes are designed for applications requiring ESD protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.
