ST-HDR Series

Catalog

2X4 HEADER BREAKOUT BOARD

Part	Number of Positions	Pitch	Pitch	Material	Board Thickness	Board Thickness	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package Accepted	Proto Board Type

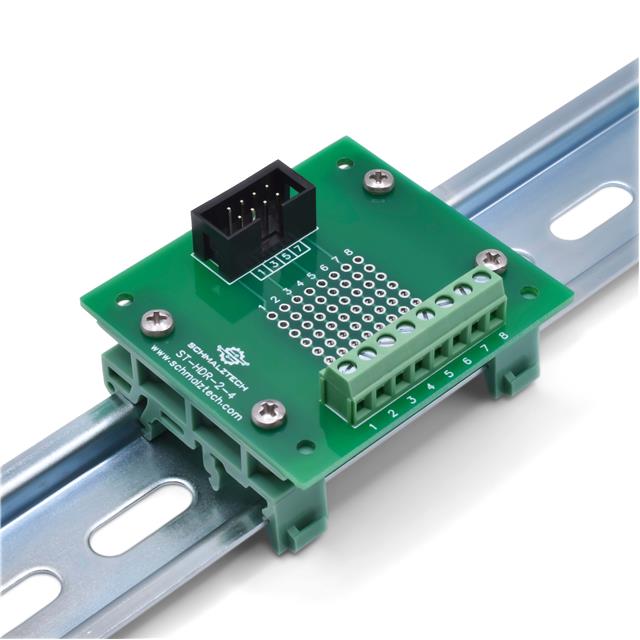

SchmalzTech, LLC ST-HDR-2-4-DIN	8	0.1 "	2.54 mm	FR4 Epoxy Glass	0.063 in	1.6 mm	2 in	2.2 in	50.8 mm	55.88 mm	Header	Connector to Terminal Block

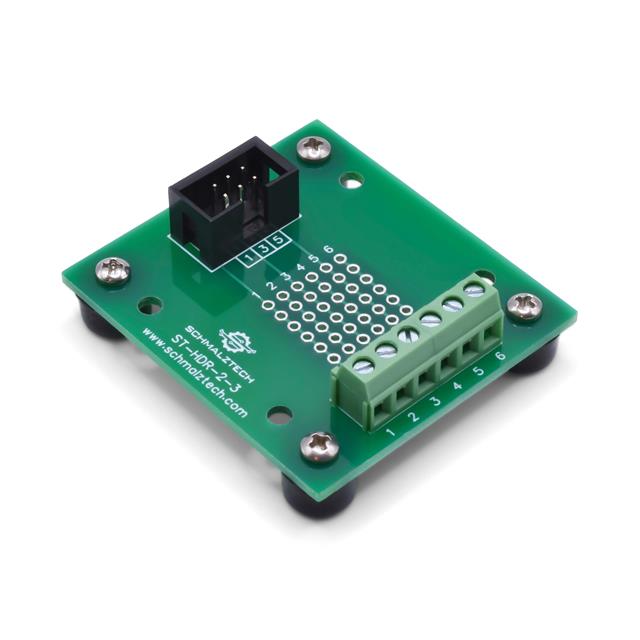

SchmalzTech, LLC ST-HDR-2-3-FT	6	0.1 "	2.54 mm	FR4 Epoxy Glass	0.063 in	1.6 mm	1.8 in	2 in	45.72 mm	50.8 mm	Header	Connector to Terminal Block

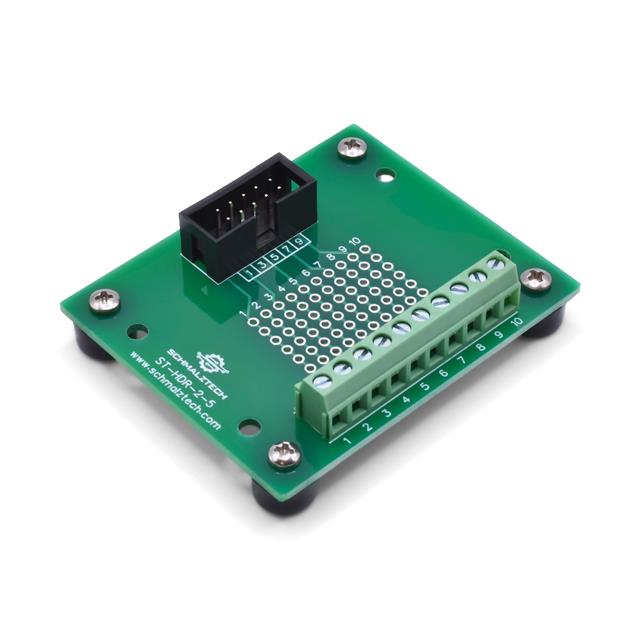

SchmalzTech, LLC ST-HDR-2-5-FT	10	0.1 "	2.54 mm	FR4 Epoxy Glass	0.063 in	1.6 mm	2 in	2.4 in	50.8 mm	60.96 mm	Header	Connector to Terminal Block

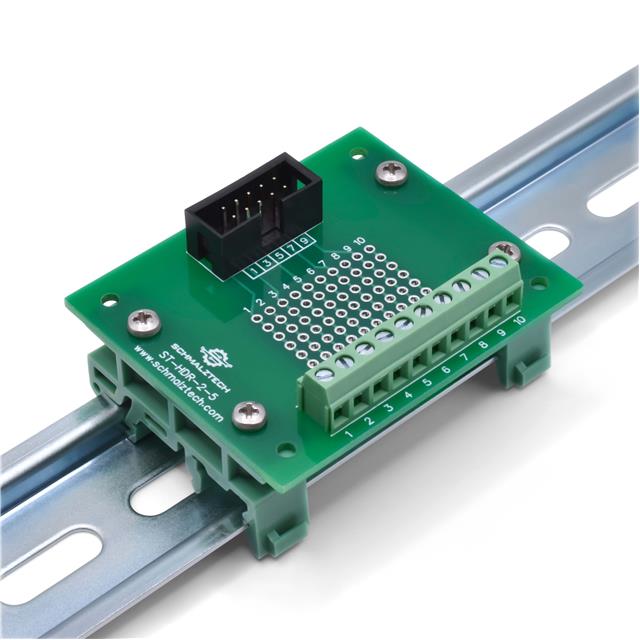

SchmalzTech, LLC ST-HDR-2-5-DIN	10	0.1 "	2.54 mm	FR4 Epoxy Glass	0.063 in	1.6 mm	2 in	2.4 in	50.8 mm	60.96 mm	Header	Connector to Terminal Block
