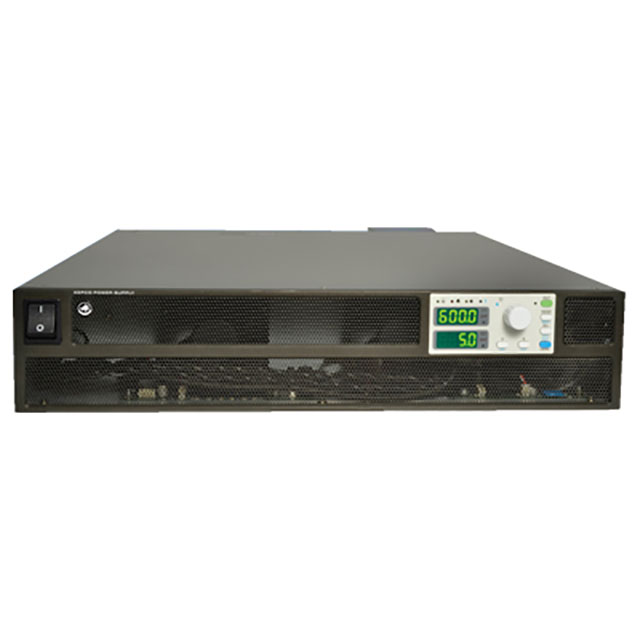

KLN 150 Series

Catalog

POWER SUPPLY 1500W

Part	Ripple	Voltage Regulation - Load	Accuracy - Voltmeter; Ammeter	Current Regulation - Line	Voltage Regulation - Line	Current Regulation - Load	Number of Characters	Number of Characters	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Current - Output [Max]	Voltage - Output [Max]	Type
Kepco and Kepco Power KLN 150-10	24 mV	0.05 % 12 mV	0.02% + 3 Counts	0.1 % 3.5 mA	0.05 % 12 mV	0.1 % 8 mA	2	4	1500 W	16.929 in	18.504 in	430 mm	470 mm	1.732 in	44 mm	Digital	240 VAC	100 VAC	Programmable RS-485	10 A	150 V	Rack Mount (AC to DC)
Kepco and Kepco Power KLN 150-10E	24 mV	0.05 % 12 mV	0.02% + 3 Counts	0.1 % 3.5 mA	0.05 % 12 mV	0.1 % 8 mA	2	4	1500 W	16.929 in	18.504 in	430 mm	470 mm	1.732 in	44 mm	Digital	240 VAC	100 VAC	Programmable RS-485	10 A	150 V	Rack Mount (AC to DC)
Kepco and Kepco Power KLN 150-20	36 mV	0.05 % 27.5 mV	0.02% + 3 Counts	0.1 % 4.2 mA	0.05 %	0.1 % 9.4 mA	2	4	3000 W	16.929 in	18.504 in	430 mm	470 mm	3.465 "	88 mm	Digital	240 VAC	190 VAC	Programmable RS-485	20 A	150 V	Rack Mount (AC to DC)
