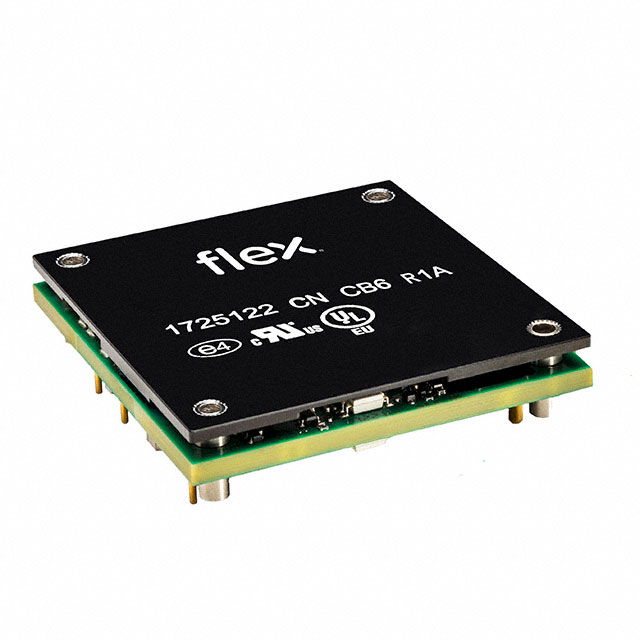

PKJ471 Series

Catalog

DC DC CONVERTER 28V 700W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Supplier Device Package	Standard Number	Applications	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Control Features	Voltage - Input (Max) [Max]	Voltage - Output 1	Mounting Type	Type	Features	Package / Case	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]
Flex Power Modules PKJ4716APIHS	-40 °C	125 °C	CB CSA IEC TUV UL	1.5 kV	Half Brick	62368-1	ITE (Commercial)	96.5 %	36 V	1	Active Low Enable	75 V	28 V	Through Hole	Isolated Module	Adjustable Output Baseplate Remote On/Off Remote Sense	Half Brick	700 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	25 A
Flex Power Modules PKJ4716HPIHS	-40 °C	125 °C	CB CSA IEC TUV UL	1.5 kV	Half Brick	62368-1	ITE (Commercial)	96.6 %	36 V	1	Active Low Enable	75 V	50 V	Through Hole	Isolated Module	Adjustable Output Baseplate Remote On/Off Remote Sense	Half Brick	700 W	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	14 A
