BHR-50 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 50POS 2.54MM

Part	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Features	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Material	Style	Number of Positions Loaded	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Contact Finish - Mating	Number of Positions	Shrouding	Contact Shape	Number of Rows [custom]	Contact Finish - Post	Insulation Color	Contact Length - Post [x]

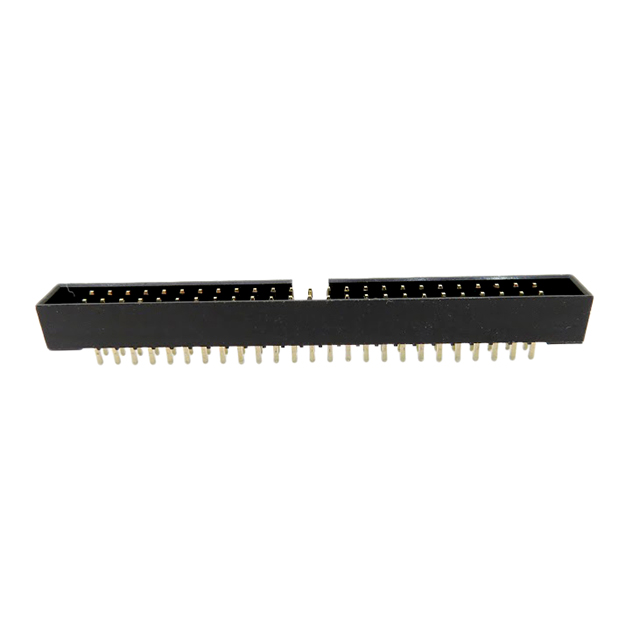

Adam Tech BHR-50-VUA	Flash	8.8 mm	0.346 in	Keying Slot Polarizing Key	Brass	-55 C	105 ░C	Male Pin	Solder	Flash	0.358 "	9.1 mm	Header	3 A	Through Hole	0.1 "	2.54 mm	0.13 "	3.3 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Board to Board Cable	All	Push-Pull	0.1 in	2.54 mm	250 VAC	Gold	50	Shrouded - 4 Wall	Square	2	Gold	Black

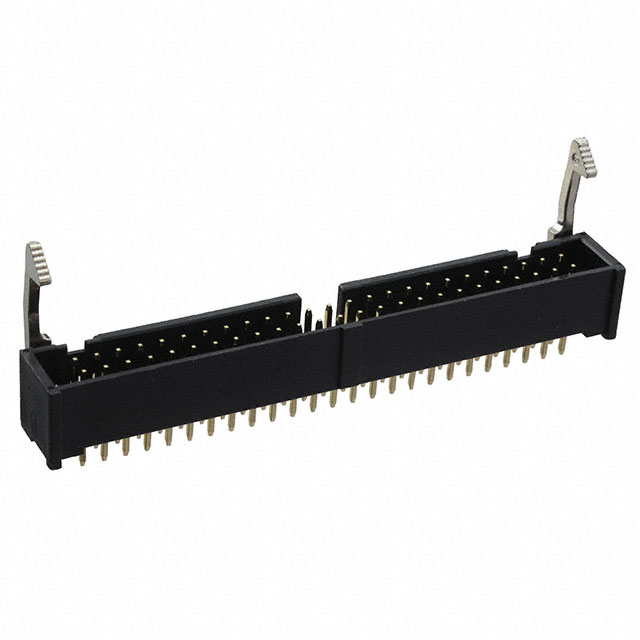

Adam Tech BHR-50-VUA-ML	Flash			Keying Slot Polarizing Key	Brass	-40 C	105 ░C	Male Pin	Solder	Flash	0.358 "	9.1 mm	Header	3 A	Through Hole	0.1 "	2.54 mm	0.13 "	3.3 mm	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Board to Board Cable	All	Push-Pull	0.1 in	2.54 mm	250 VAC	Gold	50	Shrouded - 4 Wall	Square	2	Gold	Black

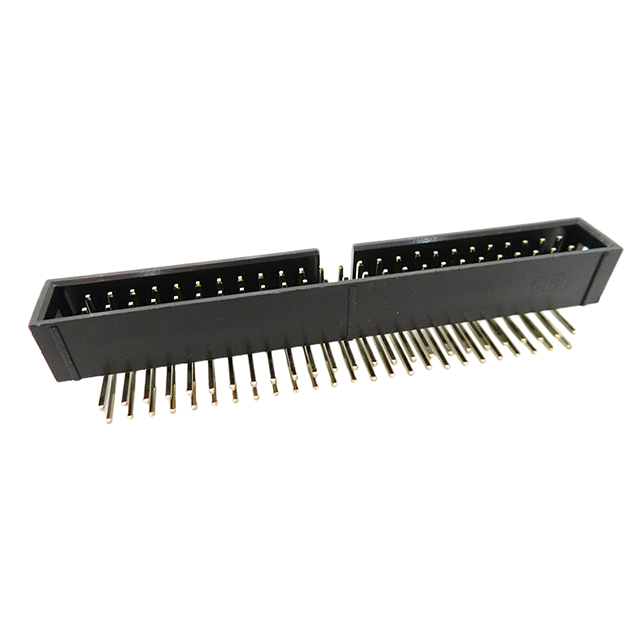

Adam Tech BHR-50-HUA	Flash			Keying Slot	Brass	-40 C	105 ░C	Male Pin	Solder	Flash	0.356 "	9.05 mm	Header		Right Angle Through Hole	0.1 "	2.54 mm		3.4 mm	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Board to Board Cable	All	Push-Pull	0.1 in	2.54 mm	250 VAC	Gold	50	Shrouded - 4 Wall	Square	2	Gold	Black	0.134 "
