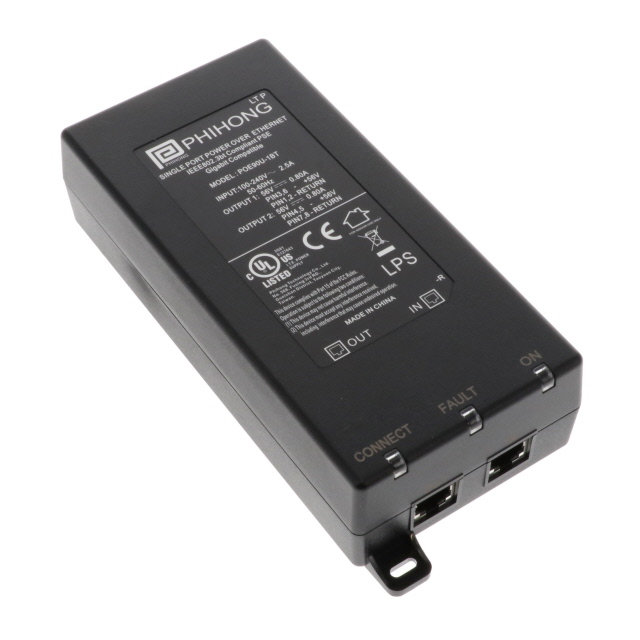

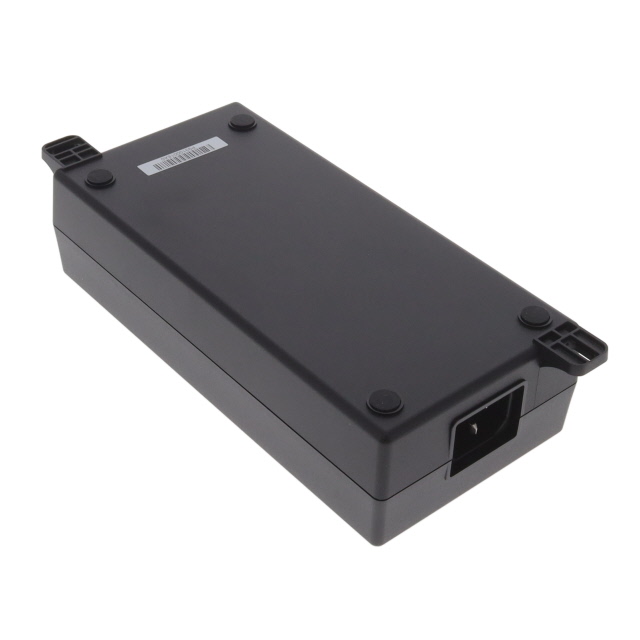

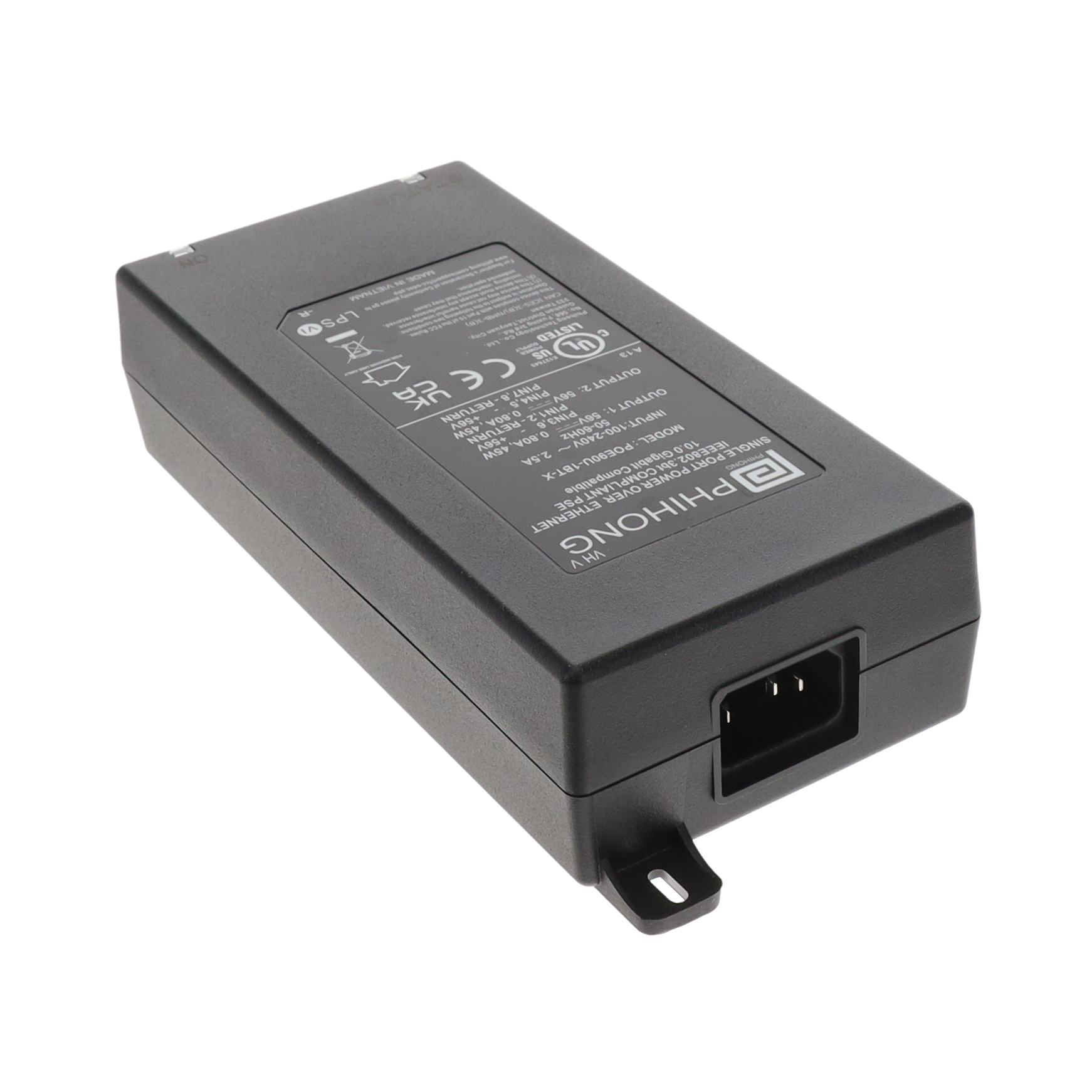

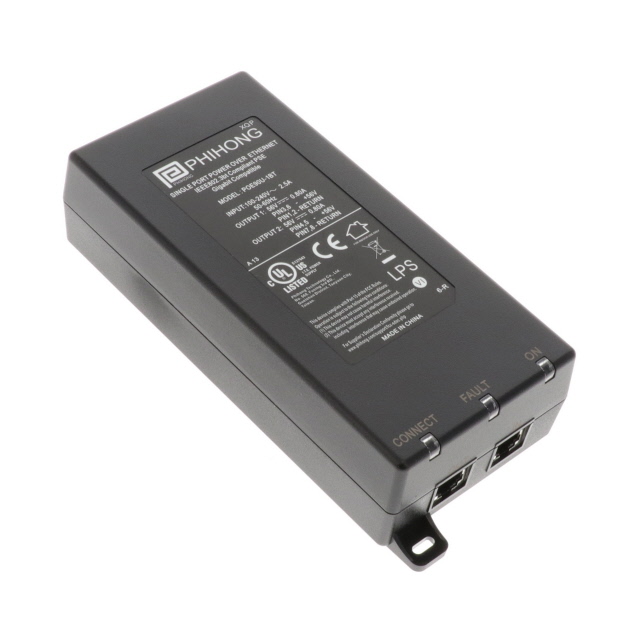

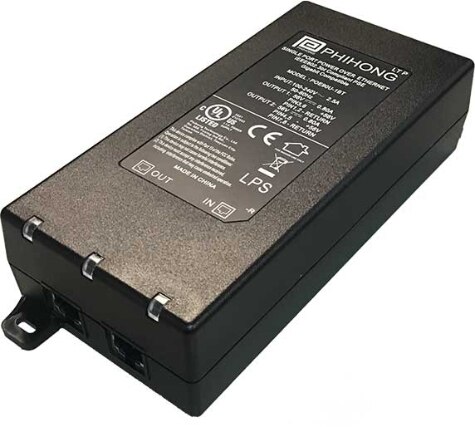

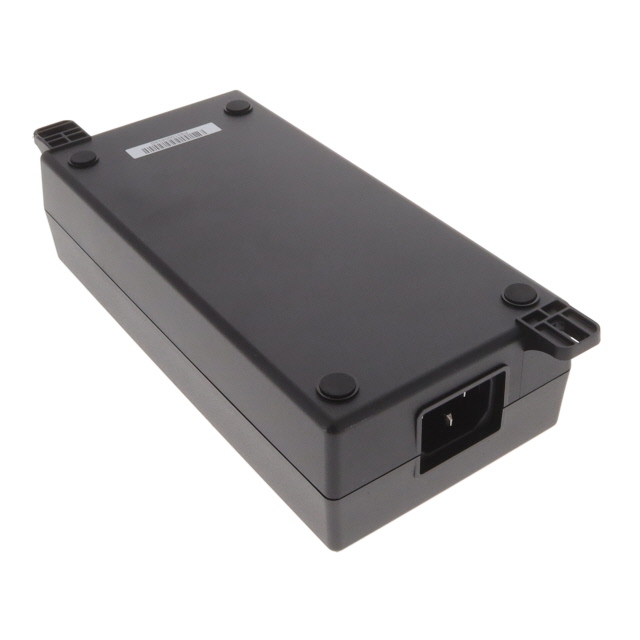

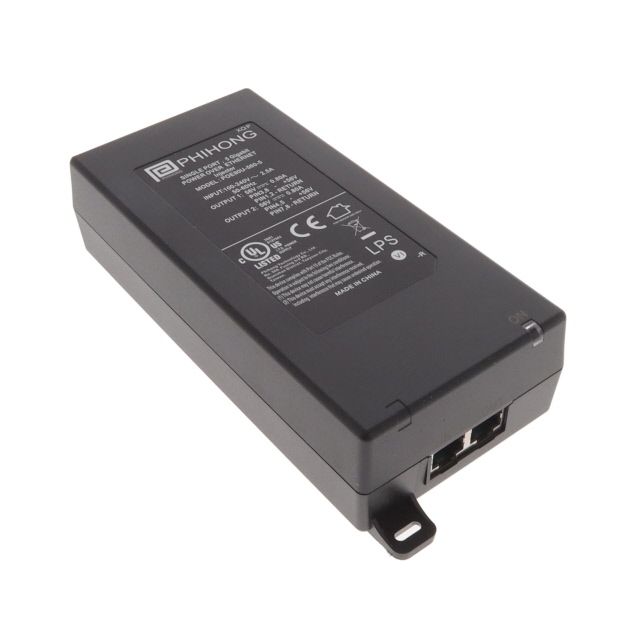

POE90U Series
Manufacturer: Phihong USA
Beta
⌘K
IEEE802.3BT - POE DESKTOP C14 2.
| Part | Output Connector | Input Connector | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Approval Agency | Compliance | Features | Number of Ports | Type | Mounting Type | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output | Power (Watts) - Per Port | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 6.54 " | 3.15 in | 166 mm | 43.6 mm | 80 mm | 1.72 in | AS/NZS CCC cULus IEC PSE | IEEE802.3bt | OCP OVP SCP | 1 | Midspan Injector | Desktop | 55022 60950-1 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011 | -20 ░C | 40 °C | Level VI | 56 V | 264 VAC | 90 VAC | 1.6 A | 90 W | |
 Phihong USA | RJ45 (Data Power) | IEC 320-C8 RJ45 | 6.54 " | 3.15 in | 166 mm | 43.6 mm | 80 mm | 1.72 in | CE cULus | IEEE802.3bt | OCP OVP SCP | 1 | Midspan Injector | Desktop | -20 ░C | 40 °C | 56 V | 264 VAC | 90 VAC | 1.6 A | 90 W | 75 % | ||
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 6.54 " | 3.15 in | 166 mm | 43.6 mm | 80 mm | 1.72 in | cULus IEC | IEEE802.3bt | OCP OVP SCP | 1 | Midspan Injector | Desktop | 60950-1 | -20 ░C | 40 °C | Level VI | 56 V | 264 VAC | 90 VAC | 1.6 A | 90 W | |
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 6.54 " | 3.15 in | 166 mm | 43.6 mm | 80 mm | 1.72 in | cULus IEC | OCP OVP SCP | 1 | Midspan Injector | Desktop | 60950-1 | -20 ░C | 60 °C | 56 V | 264 VAC | 90 VAC | 1.6 A | 90 W | 75 % | ||
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 6.54 " | 3.15 in | 166 mm | 51.2 mm | 80 mm | 2.02 " | cULus IEC | IEEE802.3bt | OCP OVP SCP | 1 | Midspan Injector | Desktop | 60950-1 | -20 ░C | 40 °C | 56 V | 264 VAC | 90 VAC | 1.6 A | 90 W | 75 % | |
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 6.54 " | 3.15 in | 166 mm | 43.6 mm | 80 mm | 1.72 in | cULus IEC | IEEE802.3bt | OCP OVP SCP | 1 | Midspan Injector | Desktop | 60950-1 62368-1 | -20 ░C | 40 °C | Level VI | 56 V | 264 VAC | 90 VAC | 1.6 A | 90 W | |
Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 6.54 " | 3.15 in | 166 mm | 43.6 mm | 80 mm | 1.72 in | cULus IEC | OCP OVP SCP | 1 | Midspan Injector | Desktop | 60950-1 | -20 ░C | 60 °C | 56 V | 264 VAC | 90 VAC | 1.6 A | 90 W | 75 % | ||
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 6.54 " | 3.15 in | 166 mm | 43.6 mm | 80 mm | 1.72 in | cULus IEC | IEEE802.3bt | OCP OVP SCP | 1 | Midspan Injector | Desktop | 60950-1 | -20 ░C | 40 °C | Level VI | 56 V | 264 VAC | 90 VAC | 1.6 A | 90 W | |
 Phihong USA | RJ45 (Data Power) | IEC 320-C14 (Power) RJ45 (Data) | 6.54 " | 3.15 in | 166 mm | 43.6 mm | 80 mm | 1.72 in | cULus IEC | OCP OVP SCP | 1 | Midspan Injector | Desktop | 60950-1 | -20 ░C | 60 °C | 56 V | 264 VAC | 90 VAC | 1.6 A | 90 W | 75 % |
