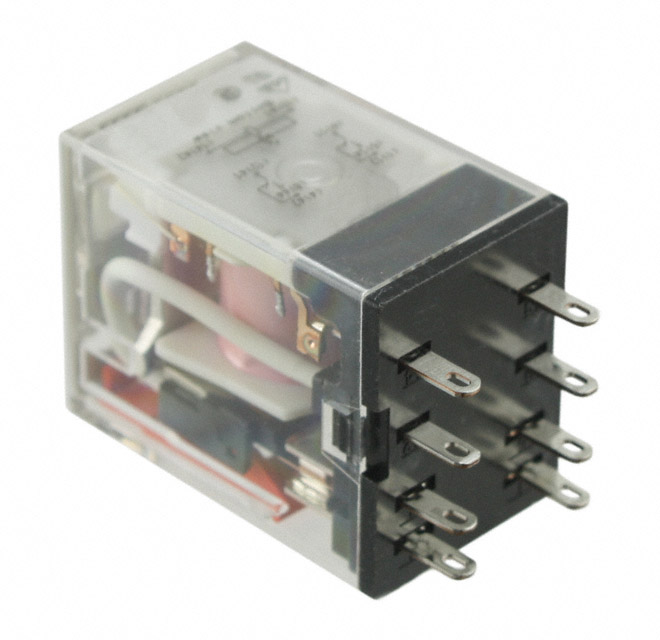

MY2N A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 5A 12V
| Part | Load - Max Switching | Contact Rating (Current) | Operate Time | Must Release Voltage | Coil Voltage | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Release Time | Must Operate Voltage | Relay Type | Features | Termination Style | Contact Form | Coil Resistance | Coil Current | Coil Type | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 625 W 1250 VA | 5 A | 20 ms | 3.6 VAC | 12 VAC/DC | 125 VDC 250 VAC | 70 °C | -55 °C | Silver (Ag) | 20 ms | 9.6 VAC/DC | General Purpose | Lighted Indicator | Plug In | DPDT (2 Form C) | 46 Ohms | 260.9 mA | Non Latching | CE CSA UR VDE | Socketable |
 Omron Electronics Inc-EMC Div | 625 W 1250 VA | 5 A | 20 ms | 72 VAC/DC | 240 VAC | 125 VDC 250 VAC | 70 °C | -55 °C | Silver (Ag) | 20 ms | 192 VAC | General Purpose | Lighted Indicator | Plug In | DPDT (2 Form C) | 18.79 kOhms | 12.8 mA | Non Latching | CE CSA UR VDE | Socketable |
Omron Electronics Inc-EMC Div | 625 W 1250 VA | 5 A 10 A | 20 ms | 1.8 VAC | 6 VAC | 125 VDC 250 VAC | 70 °C | -55 °C | Silver (Ag) | 20 ms | 4.8 VAC/DC | General Purpose | Lighted Indicator | Plug In | DPDT (2 Form C) | 12.2 Ohms | 183 mA | Non Latching | CE CSA UR VDE | Socketable |
Omron Electronics Inc-EMC Div | 625 W 1250 VA | 5 A | 20 ms | 7.2 VAC | 24 VAC | 125 VDC 250 VAC | 60 °C | -55 °C | Silver (Ag) | 20 ms | 19.2 VAC | General Purpose | Lighted Indicator | Plug In | DPDT (2 Form C) | 180 Ohms | 133.3 mA | Non Latching | CE CSA UR VDE | Socketable |
