AMIS-49200 Series

Fieldbus Physical Layer Medium Access Unit (MAU)

Catalog

Fieldbus Physical Layer Medium Access Unit (MAU)

Part	Type	Supplier Device Package	Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Duplex	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Receiver Hysteresis	Mounting Type
ON Semiconductor AMIS-49200-XTP	Transceiver	44-LQFP (10x10)	MDS-MAU	4.75 V	6.2 V	Half	32.25 Kbps	85 °C	-40 °C	44-LQFP	250 mV	Surface Mount
ON Semiconductor AMIS-49250-XTP	Transceiver	44-NQFP (7x7)	MDS-MAU	4.75 V	6.2 V	Half	32.25 Kbps	85 °C	-40 °C	44-VFQFN Exposed Pad	250 mV	Surface Mount
ON Semiconductor AMIS-49250-XTD	Transceiver	44-NQFP (7x7)	MDS-MAU	4.75 V	6.2 V	Half	32.25 Kbps	85 °C	-40 °C	44-VFQFN Exposed Pad	250 mV	Surface Mount
ON Semiconductor AMIS-49200-XTD	Transceiver	44-LQFP (10x10)	MDS-MAU	4.75 V	6.2 V	Half	32.25 Kbps	85 °C	-40 °C	44-LQFP	250 mV	Surface Mount

Catalog

Fieldbus Physical Layer Medium Access Unit (MAU)

Key Features

• All node power can be supplied by the bus, via the AMIS-492x0

• Current consumption 500 uA (typ)

• VCC voltage: 6.2 V to 4.75 V

• VDD voltage: 5.5 V to 2.7 V

• Compatible with IEC 1158-2 and ISA 50.02

• Shunt regulator

• Voltage reference (internal only)

• Series regulator

• Bandpass filter

• Slew rate control

• Segment current control

• Low voltage detection

• Carrier detect

• Data rate: 31.25 kbps voltage mode

• Dual voltage supply: 3.0 to 6.2 V

Description

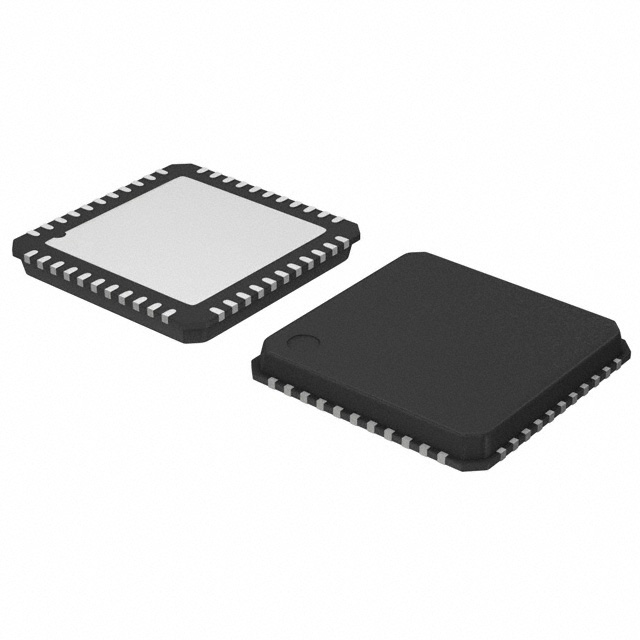

AMIS-49200 and AMIS-49250 Fieldbus MAU (media access units) are transceiver chips for low speed FOUNDATION Fieldbus® and Profibus® PA devices.AMIS-49200 was designed to be a near pin-for-pin replacement of the Yokogawa µSAA22Q MAU. 'Near pin-for-pin' means that associated component values may change, but no board changes are required.AMIS-49250 is a small, micro-lead frame version, in a 7.0 x 7.0 mm NQFP-44 package.
