87180 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

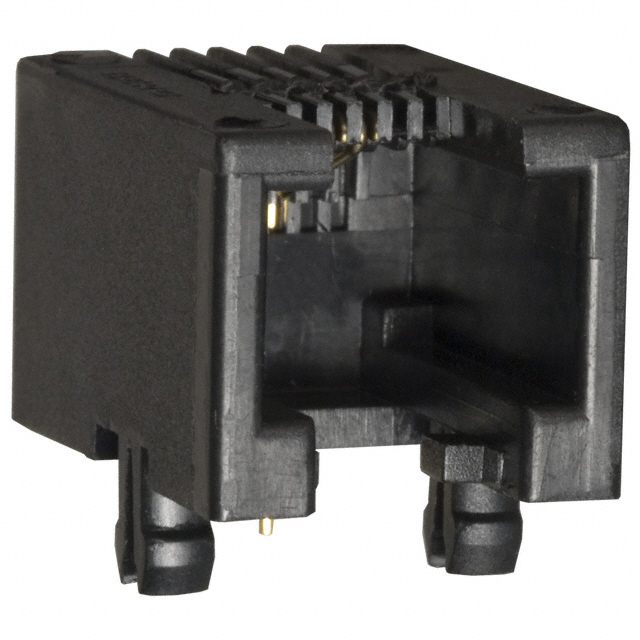

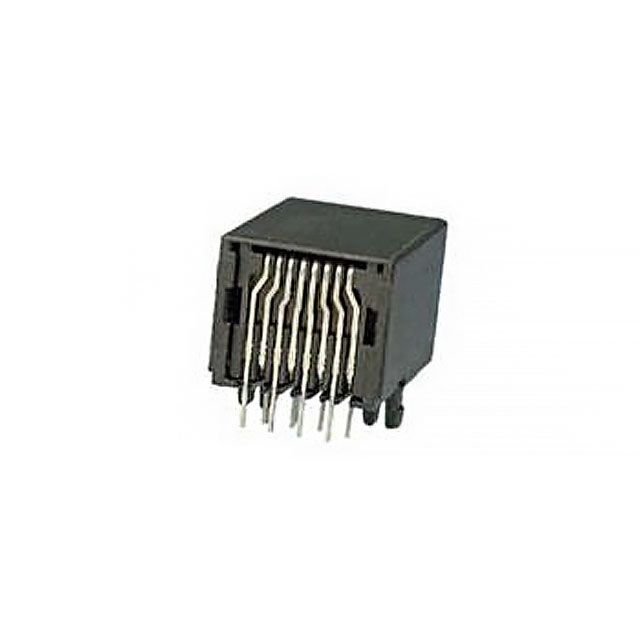

CONN MOD JACK 8P8C R/A UNSHLD
| Part | Termination | Orientation | Number of Positions/Contacts | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Tab Direction | Mounting Type | Shielding | LED Color | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Housing Material | Number of Ports | Contact Material | Ratings | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Solder | 90 ° | 8p8c (RJ45 Ethernet) | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 0.127 µm | 5 µin | Gold | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Phosphor Bronze | ||
 Amphenol ICC (FCI) | Solder | 90 ° | 8p4c | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 0.127 µm | 5 µin | Gold | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Phosphor Bronze | ||
Amphenol ICC (FCI) | Solder | 90 ° | 6p6c (RJ11 RJ12 RJ14 RJ25) | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 0.127 µm | 5 µin | Gold GXT™ | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Phosphor Bronze | Cat3 | |
Amphenol ICC (FCI) | Solder | 90 ° | 6p4c | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 1.27 µm | 50 µin | Gold GXT™ | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Phosphor Bronze | Cat3 | |
 Amphenol ICC (FCI) | Solder | 90 ° | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 0.127 µm | 5 µin | Gold | Thermoplastic | 1 | Phosphor Bronze | Cat3 | 2 6 | |
Amphenol ICC (FCI) | Solder | 90 ° | 8p8c (RJ45 Ethernet) | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 0.152 Ám | 6 Áin | Gold GXT™ | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Phosphor Bronze | ||
Amphenol ICC (FCI) | Solder | 90 ° | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 1.27 µm | 50 µin | Gold GXT™ | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Phosphor Bronze | 2 6 | ||
Amphenol ICC (FCI) | Solder | 90 ° | 4p2c (RJ9) | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 0.127 µm | 5 µin | Gold | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Phosphor Bronze | ||
Amphenol ICC (FCI) | Solder | 90 ° | 8p4c | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 0.38 µm | 15 µin | Gold GXT™ | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Phosphor Bronze | ||
Amphenol ICC (FCI) | Solder | 90 ° | 8p8c (RJ45 Ethernet) | 1 | -40 °C | 70 °C | Down | Through Hole | Unshielded | Does Not Contain LED | Jack | 1.27 µm | 50 µin | Gold GXT™ | Thermoplastic | 1 | Phosphor Bronze |
