3SU1100 Series

Manufacturer: Siemens

Catalog

PUSHBUTTON. WHITE

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Termination Style	Ingress Protection	Circuit	Type	Switch Function	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Mounting Type	Color - Actuator/Cap	Contact Material	Output	Depth Behind Flange	Key Removable Positions	Angle of Throw	Contact Finish	Number of Positions	Contact Timing	Reset Operation	Approval Agency	Illumination
Siemens 3SU11000AB601FA0	10000000 Cycles	10000000 Cycles	500 V	10 A	500 V	Screw Terminal	IP66 IP67 IP69K	DPST-NO/NC	Standard	Off-Mom On-Mom	22.3 mm	-25 °C	70 °C	Button Round	Panel Mount Front	White

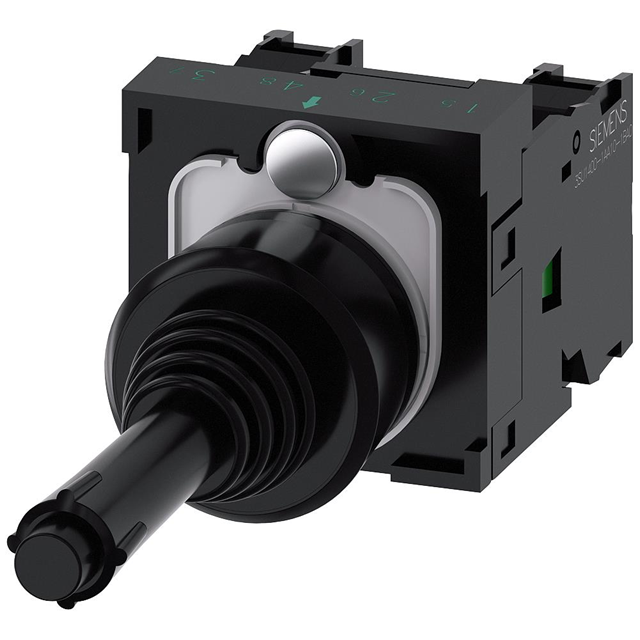

Siemens 3SU11007BA101NA0	100000 Cycles	10000000 Cycles	500 V	10 A	500 V	Screw Terminal	IP65 IP67		Joystick 2 - Axis	360° Directional		-25 °C	70 °C	Joystick	Panel Mount		Silver Alloy	Digital (Mechanical Switch)

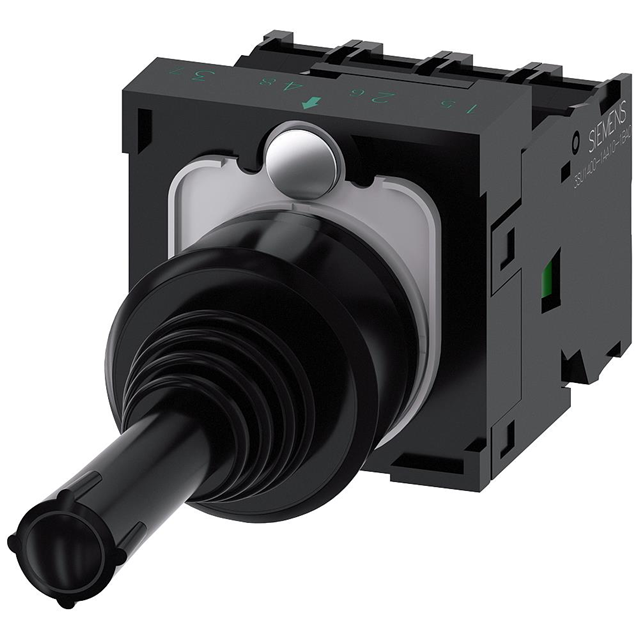

Siemens 3SU11007AF101QA0	500000 Cycles	10000000 Cycles	500 V	10 A	500 V	Screw Terminal	IP65 IP67		Joystick 2 - Axis	360° Directional		-25 °C	70 °C	Joystick	Panel Mount		Silver Alloy	Digital (Mechanical Switch)

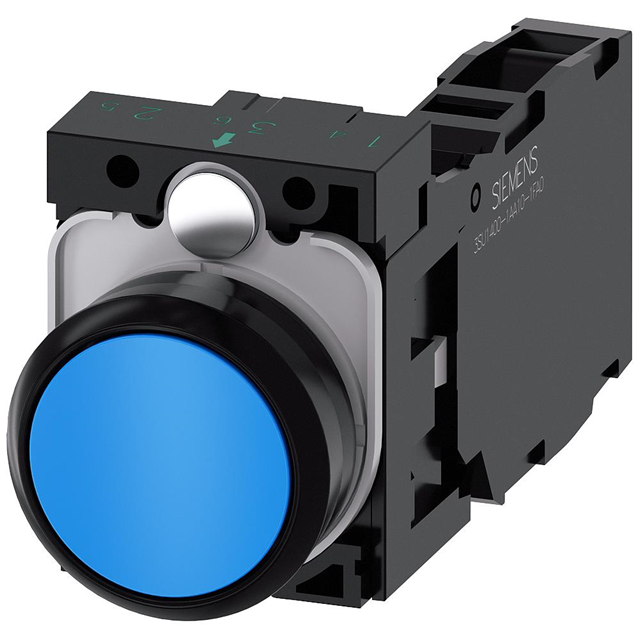

Siemens 3SU11000AB501FA0	10000000 Cycles	10000000 Cycles	500 V	10 A	500 V	Screw Terminal	IP66 IP67 IP69K	DPST-NO/NC	Standard	Off-Mom On-Mom	22.3 mm	-25 °C	70 °C	Button Round	Panel Mount Front	Blue

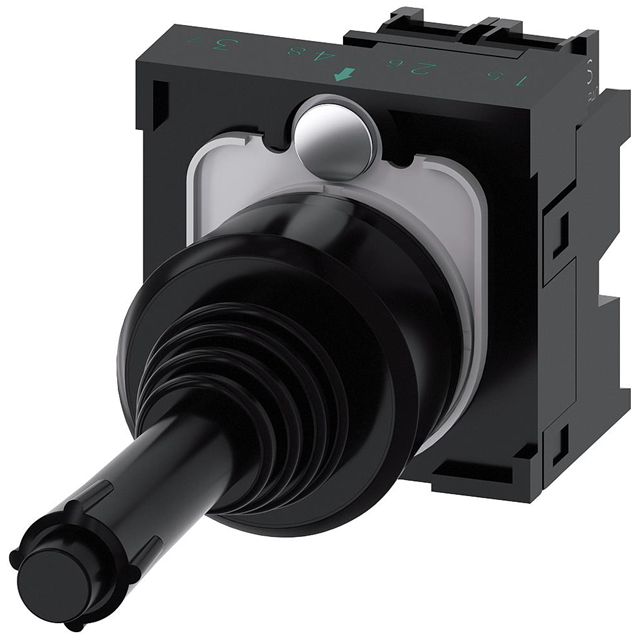

Siemens 3SU11007BB101NA0	100000 Cycles	10000000 Cycles	500 V	10 A	500 V	Screw Terminal	IP65 IP67		Joystick 2 - Axis	360° Directional		-25 °C	70 °C	Joystick	Panel Mount		Silver Alloy	Digital (Mechanical Switch)

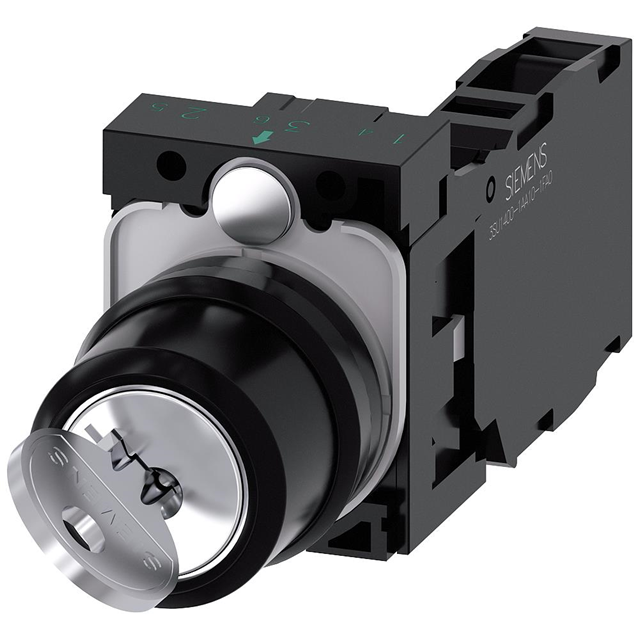

Siemens 3SU11004BF111FA0	1000000 Cycles	10000000 Cycles	500 V	10 A	500 V	Screw Terminal		DPST-NO/NC		Off-On On-Off	22.3 mm	-25 °C	70 °C	Flat Key	Panel Mount		Silver Alloy		49.4 mm	All	90 °	Silver	2	Not Specified

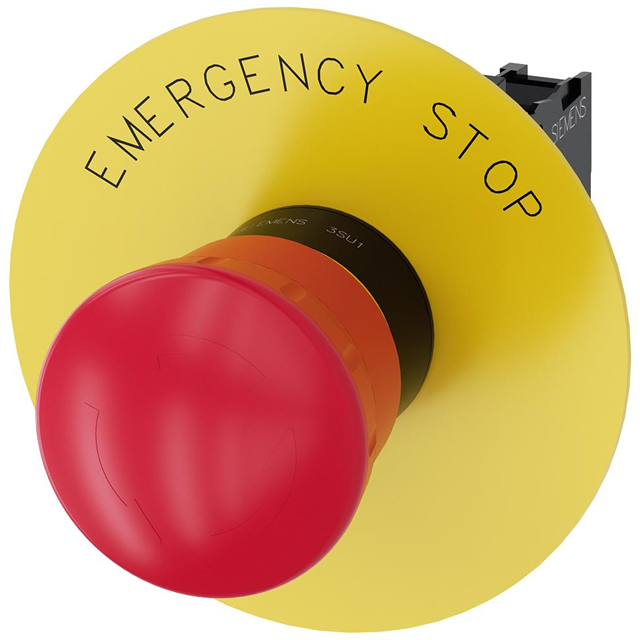

Siemens 3SU11001HB201PG0			500 V	10 A	500 V	Screw Terminal	IP66 IP67 IP69K	DPST-NC		On-Off	22.3 mm	-25 °C	70 °C		Panel Mount Front										Twist

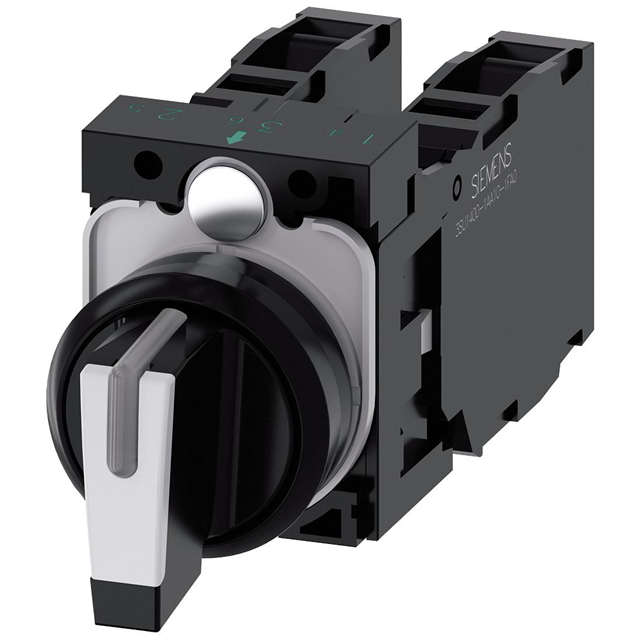

Siemens 3SU11002BL601LA0	1000000 Cycles	10000000 Cycles	500 V	10 A	500 V	Screw Terminal	IP66 IP67 IP69K	4PST-2NO/2NC	Standard	Off-On On-Off	22.3 mm	-25 °C	70 °C		Panel Mount				71.7 mm							CCC CE CSA EAC UL	Non-Illuminated

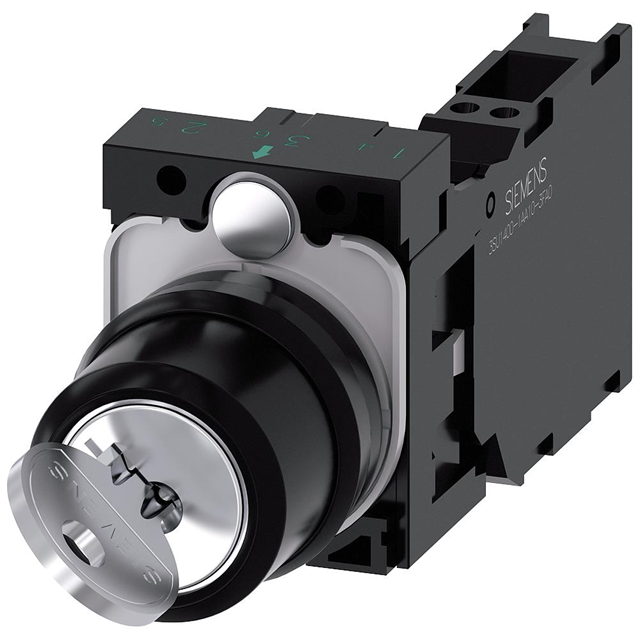

Siemens 3SU11004BF113FA0	1000000 Cycles	10000000 Cycles	500 V	10 A	500 V	Spring Terminal		DPST-NO/NC		Off-On On-Off	22.3 mm	-25 °C	70 °C	Flat Key	Panel Mount		Silver Alloy		49.4 mm	All	90 °	Silver	2	Not Specified

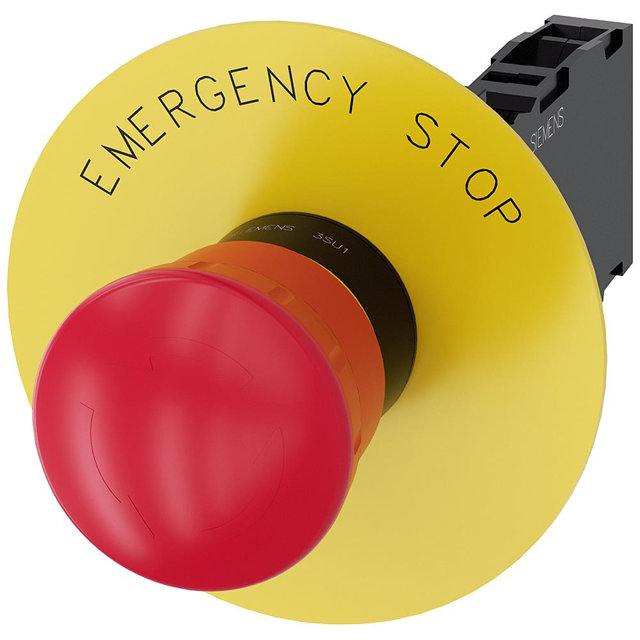

Siemens 3SU11001HB201FG0			500 V	10 A	500 V	Screw Terminal	IP66 IP67 IP69K	DPST-NO/NC		Off-On On-Off	22.3 mm	-25 °C	70 °C		Panel Mount Front										Twist
