1N4007 Series

Catalog

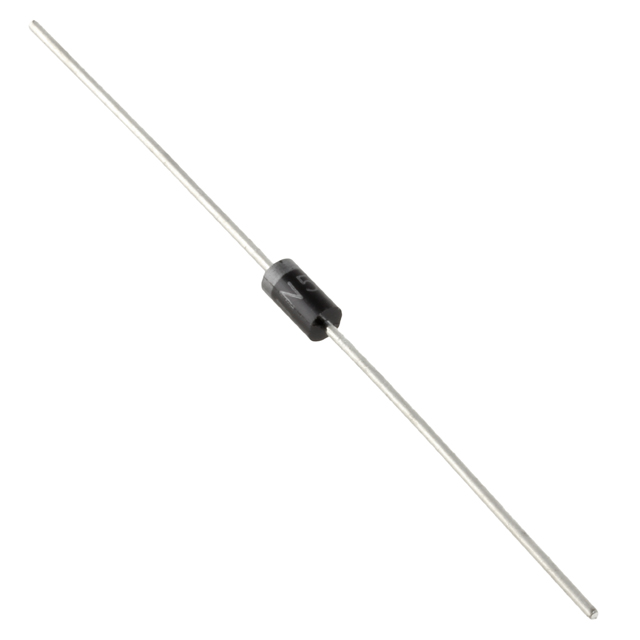

DIODE 1KV 1A 2-PIN DO-41 BOX

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Speed [Min]	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Mounting Type	Package / Case	Voltage - Forward (Vf) (Max) @ If	Technology
Comchip Technology 1N4007B-G	1000 V	200 mA 500 ns	DO-41	-55 °C	150 °C	15 pF	5 µA	1 A	Through Hole	Axial DO-204AL DO-41	1.1 V	Standard
Comchip Technology 1N4007T-G	1000 V	200 mA 500 ns	DO-41	-55 °C	150 °C	15 pF	5 µA	1 A	Through Hole	Axial DO-204AL DO-41	1.1 V	Standard
