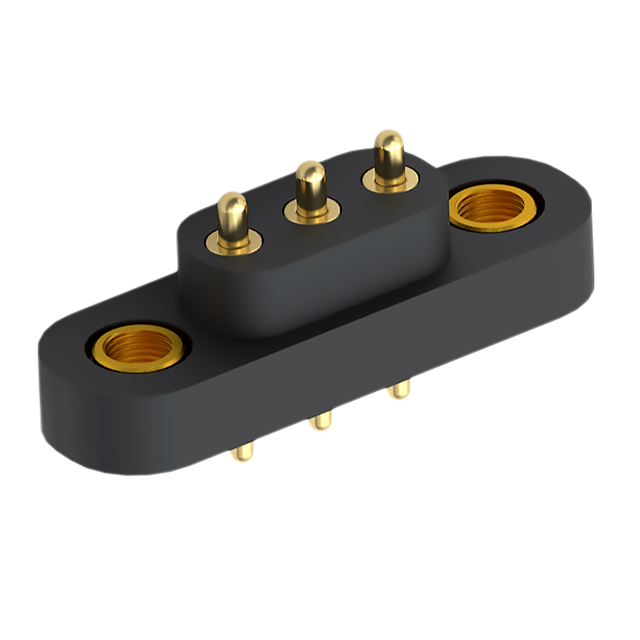

858-22 Series

Catalog

CONN SPRING PISTON 3POS SMD

Part	Number of Contacts	Number of Rows	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Material	Pitch	Pitch	Mounting Type
Mill-Max Manufacturing Corp. 858-22-003-30-611101	3	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Surface Mount
Mill-Max Manufacturing Corp. 858-22-004-30-011101	4	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Surface Mount
Mill-Max Manufacturing Corp. 858-22-004-30-601101	4	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Surface Mount
Mill-Max Manufacturing Corp. 858-22-003-30-601101	3	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Surface Mount

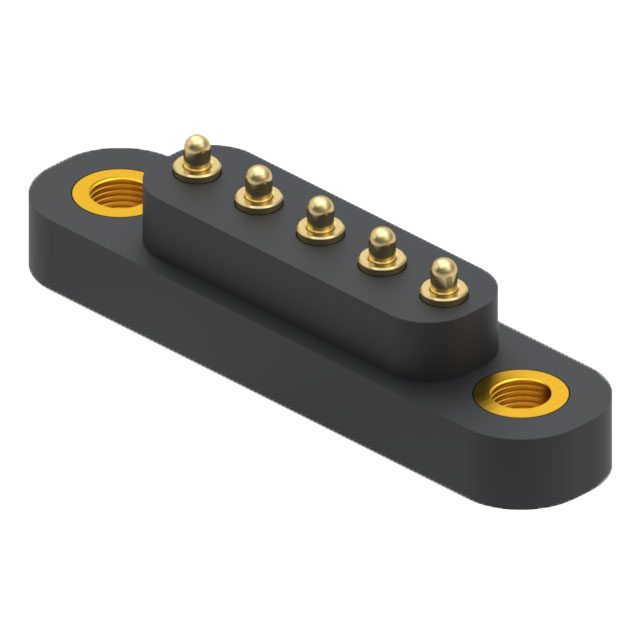

Mill-Max Manufacturing Corp. 858-22-005-80-012101	5	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Through Hole
Mill-Max Manufacturing Corp. 858-22-005-30-601101	5	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Surface Mount
Mill-Max Manufacturing Corp. 858-22-006-10-011101	6	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Through Hole
Mill-Max Manufacturing Corp. 858-22-005-10-011101	5	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Through Hole
Mill-Max Manufacturing Corp. 858-22-004-30-611101	4	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Surface Mount

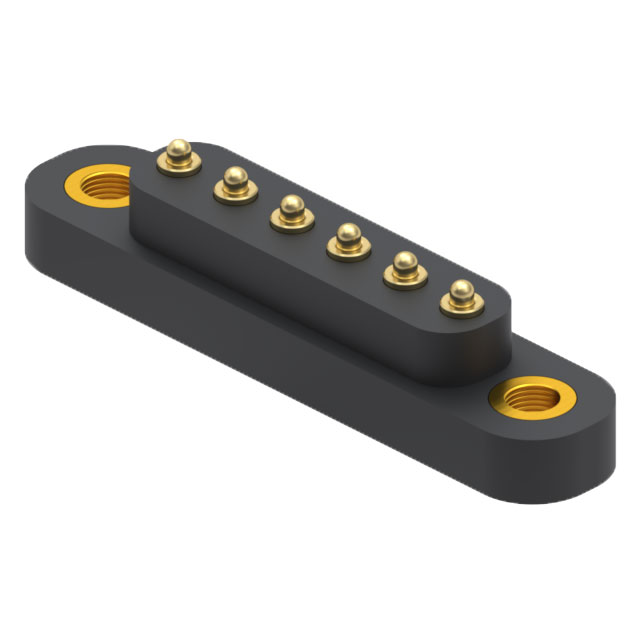

Mill-Max Manufacturing Corp. 858-22-006-80-011101	6	1	Piston	Gold	20 µin	0.51 µm	Copper Alloy	4 mm	0.157 in	Through Hole
