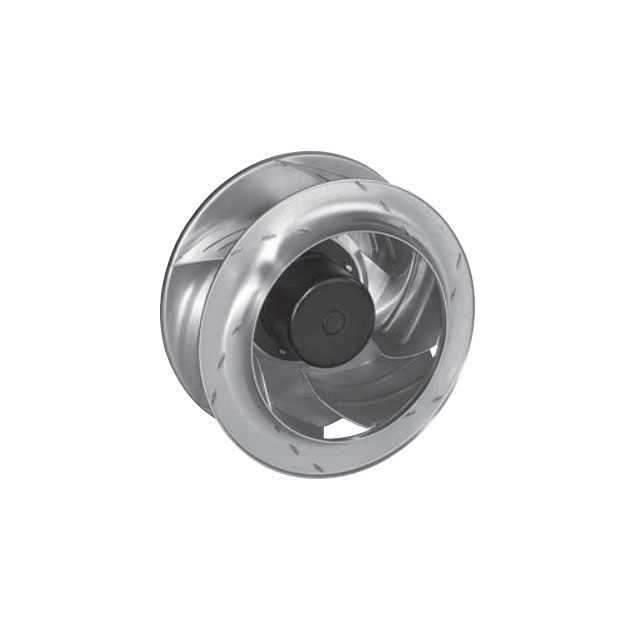

R3G310 Series

Catalog

310MM IMPELLER 200-277VAC 1270W

Part	Material - Blade [custom]	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Features	Power (Watts)	Approval Agency	Width [x]	Static Pressure	Static Pressure	Size / Dimension [diameter]	Size / Dimension	Termination	Air Flow	Air Flow	Ingress Protection	Bearing Type	Voltage - Rated	Fan Type	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Width [y]
ebm-papst Inc. R3G310-AX54-21	Aluminum	5.6 A	277 VAC	200 VAC	Aluminum	Alarm Electronic Commutation (EC) PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	1270 W	CE EAC UL	269.2 mm	903 Pa	3.625 in H2O	360 mm	Round	Terminal Block	1643.3 CFM	46.01 m³/min	IP54 - Dust Protected Water Resistant	Ball	230 VAC	Motorized Impellers	2850 RPM	-25 °C	60 °C
ebm-papst Inc. R3G310-RS01-I1		3.2 A	277 VAC	200 VAC	Aluminum	PWM Control Thermal Overload Protector (TOP)	730 W	CCC CSA EAC UL	232.1 mm	661 Pa	2.653 in H2O			5 Wire Leads	1418.5 CFM	39.72 m³/min	IP54 - Dust Protected Water Resistant	Ball	230 VAC	Motorized Impellers	2640 RPM	-25 °C	60 °C	Plastic	75 dB(A)
ebm-papst Inc. R3G310-AZ88-03	Aluminum	4.3 A	480 VAC	380 VAC	Aluminum	Electronic Commutation (EC) PWM Control	3240 W	UL	289.5 mm			360 mm	Round	Terminal Block	3667 CFM	102.68 m³/min	IP54 - Dust Protected Water Resistant	Ball	460 VAC	Motorized Impellers	4100 RPM	-25 °C	40 °C		91 dB(A)	-25 °C	40 °C

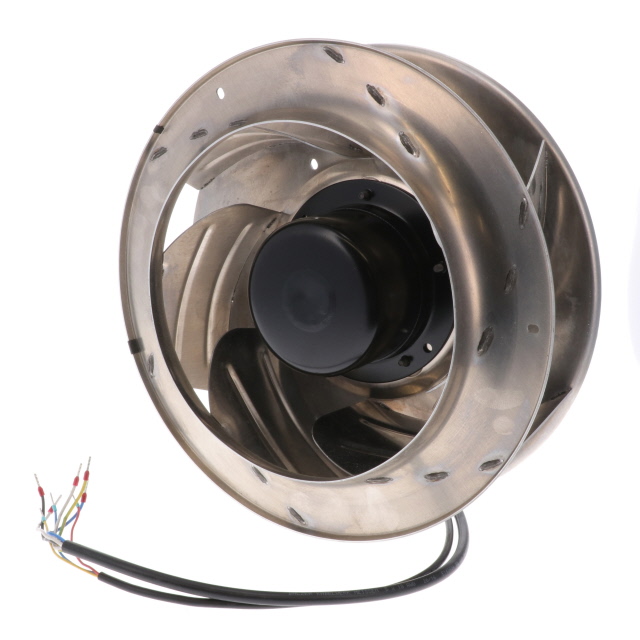

ebm-papst Inc. R3G310-AN43-71	Aluminum	3 A	277 VAC	200 VAC	Aluminum	Thermal Overload Protector (TOP)	470 W	CCC CE CSA EAC UL	167.2 mm			318 mm		8 Wire Leads with Splice Terminals			IP54 - Dust Protected Water Resistant	Ball	230 VAC	Tubeaxial	2435 RPM							4.6 kg	10.1 lbs
ebm-papst Inc. R3G310-AL09-30	Aluminum	4.35 A	57 VDC	36 VDC	Aluminum	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	208 W	CCC CE CSA EAC UL	150 mm			318 mm		4 Wire Leads with Ferrules	913 CFM	25.56 m³/min	IP42	Ball	48 VDC	Motorized Impellers	1930 RPM	-25 °C	60 °C		67 dB
ebm-papst Inc. R3G310-RS05-J1		1.25 A	480 VAC	380 VAC	Aluminum	PWM Control Thermal Overload Protector (TOP)	790 W	EAC		632 Pa	2.536 in H2O			5 Wire Leads 6 Wire Leads	1589.2 CFM	44.5 m³/min	IP54 - Dust Protected Water Resistant	Ball	400 VAC	Motorized Impellers	2700 RPM	-40 C	60 °C	Plastic	76 dB(A)	-40 °C	60 °C			168 mm
ebm-papst Inc. R3G310-AY73-13	Aluminum	7.4 A			Aluminum	Electronic Commutation (EC) PWM Control	2680 W	UL	289.5 mm			350 mm	Round	Terminal Block	3243 CFM	90.8 m³/min	IP54 - Dust Protected Water Resistant		230 VAC	Motorized Impellers	3900 RPM	-25 °C	40 °C		90 dB(A)	-25 °C	40 °C
ebm-papst Inc. R3G310-AN12-30	Aluminum	4 A	57 VDC	36 VDC	Aluminum	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	190 W	CCC CE CSA EAC UL				318 mm		4 Wire Leads with Ferrules	753.9 CFM	21.11 m³/min	IP42	Ball	48 VDC	Motorized Impellers	2000 RPM	-25 °C	60 °C		71 dB(A)
