TPS60151 Series

140mA, 5V Charge Pump in 2x2 QFN

Catalog

140mA, 5V Charge Pump in 2x2 QFN

Part	Mounting Type	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Frequency - Switching	Voltage - Input (Min) [Min]	Current - Output	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Function	Supplier Device Package	Number of Outputs	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Main Purpose	Contents	Voltage - Output
Texas Instruments TPS60151DRVR	Surface Mount	5 V	5.5 V	1.5 MHz	2.7 V	140 mA	Positive	85 C	-40 ¯C	Step-Up	6-WSON (2x2)	1
Texas Instruments TPS60151DRVT	Surface Mount	5 V	5.5 V	1.5 MHz	2.7 V	140 mA	Positive	85 C	-40 ¯C	Step-Up	6-WSON (2x2)	1

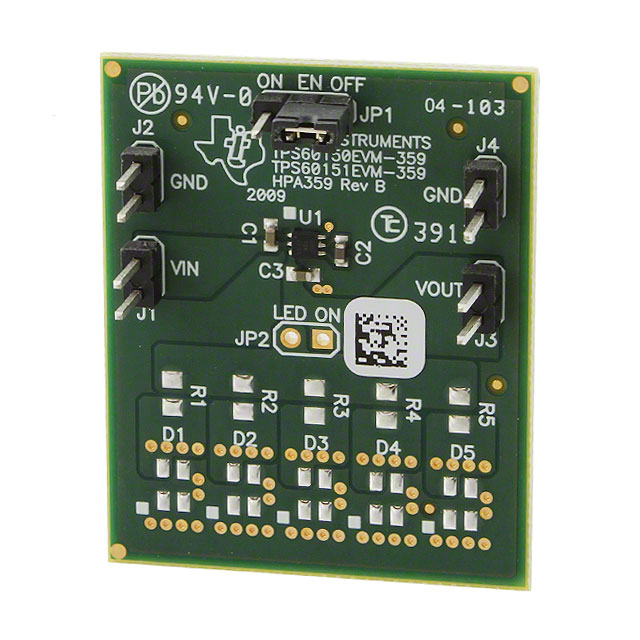

Texas Instruments TPS60151EVM-359				1.5 MHz		140 mA							Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Boost	5.5 V	2.7 V	TPS60151	DC/DC Step Up	Board(s)	5 V

Catalog

140mA, 5V Charge Pump in 2x2 QFN

Description

The TPS60151 is a switched capacitor voltage converter which produces a regulated, low noise, and low-ripple output voltage of 5 V from an unregulated input voltage. It maintains 5-V regulation even when VINis greater than 5 V. The 5-V output can supply a minimum of 140-mA current. The TPS60151 has built-in current limit and output reverse current protection that are ideal for HDMI, USB OTG and other battery powered applications. TPS60151 operates in skip mode when the load current falls below 8 mA under typical condition. In skip mode operation, quiescent current is reduced to 90 µA. Only 3 external capacitors are needed to generate the output voltage, thereby saving PCB space. Inrush current is limited by the soft-start function during power on and power transient states. The TPS60151 operates over a free air temperature range of –40°C to 85°C. The device is available with a small 2-mm × 2-mm 6-pin SON package (QFN). The TPS60151 is a switched capacitor voltage converter which produces a regulated, low noise, and low-ripple output voltage of 5 V from an unregulated input voltage. It maintains 5-V regulation even when VINis greater than 5 V. The 5-V output can supply a minimum of 140-mA current. The TPS60151 has built-in current limit and output reverse current protection that are ideal for HDMI, USB OTG and other battery powered applications. TPS60151 operates in skip mode when the load current falls below 8 mA under typical condition. In skip mode operation, quiescent current is reduced to 90 µA. Only 3 external capacitors are needed to generate the output voltage, thereby saving PCB space. Inrush current is limited by the soft-start function during power on and power transient states. The TPS60151 operates over a free air temperature range of –40°C to 85°C. The device is available with a small 2-mm × 2-mm 6-pin SON package (QFN).
