737-084 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 84POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Gender	Number of Positions [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch	Pitch	Contact Material	Number of Rows [custom]	Read Out	Contact Finish	Contact Type	Card Type	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 737-084-540-201	Polyester Thermoplastic	2	42	Female	84	Through Hole	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Black	3.96 mm	0.156 in	Copper Alloy	2	Dual	Gold	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-084-545-206	Polyester Thermoplastic	2	42	Female	84	Through Hole	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Black	3.96 mm	0.156 in	Copper Alloy	2	Dual	Gold	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-084-541-201	Polyester Thermoplastic	2	42	Female	84	Through Hole	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Black	3.96 mm	0.156 in	Copper Alloy	2	Dual	Gold	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-084-520-201	Polyester Thermoplastic	2	42	Female	84	Through Hole	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Black	3.96 mm	0.156 in	Copper Alloy	2	Dual	Gold	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-084-545-201	Polyester Thermoplastic	2	42	Female	84	Through Hole	-40 C	105 ░C	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Black	3.96 mm	0.156 in	Copper Alloy	2	Dual	Gold	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-084-560-201	Polyester Thermoplastic	2	42	Female	84	Through Hole	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Black	3.96 mm	0.156 in	Copper Alloy	2	Dual	Gold	Cantilever Make Before Break	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm

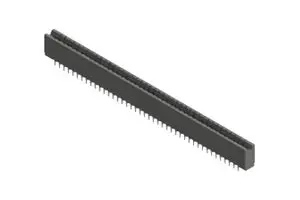

EDAC Inc. 737-084-520-206	Polyester Thermoplastic	2	42	Female	84	Through Hole	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Black	3.96 mm	0.156 in	Copper Alloy	2	Dual	Gold	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-084-560-206	Polyester Thermoplastic	2	42	Female	84	Through Hole	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Black	3.96 mm	0.156 in	Copper Alloy	2	Dual	Gold	Cantilever Make Before Break	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-084-522-201	Polyester Thermoplastic	2	42	Female	84	Through Hole	-40 C	105 ░C	Press-Fit	30 Áin	0.76 Ám	Black	3.96 mm	0.156 in	Copper Alloy	2	Dual	Gold	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
