19628160 Series
Manufacturer: HARTING
Beta
⌘K
HEADERS & WIRE HOUSINGS 16B EMC HOOD TOP AND SIDE ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, M25 SIDE + M32 TOP
| Part | Connector Type | Style | Thread Size | Housing Material | Ingress Protection | Lock Location | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Hood | Side and Top Entry | M25 M32 | Aluminum Die Cast | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Base Bottom | -40 C | 200 °C | 1.693 " | 43 mm | 93.5 mm | 3.681 in | 75.6 mm | 2.976 in | 16 B |
 HARTING | |||||||||||||||

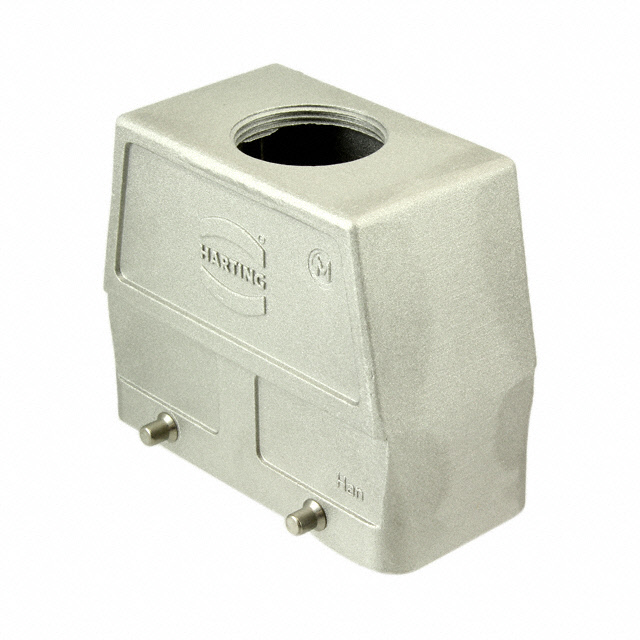

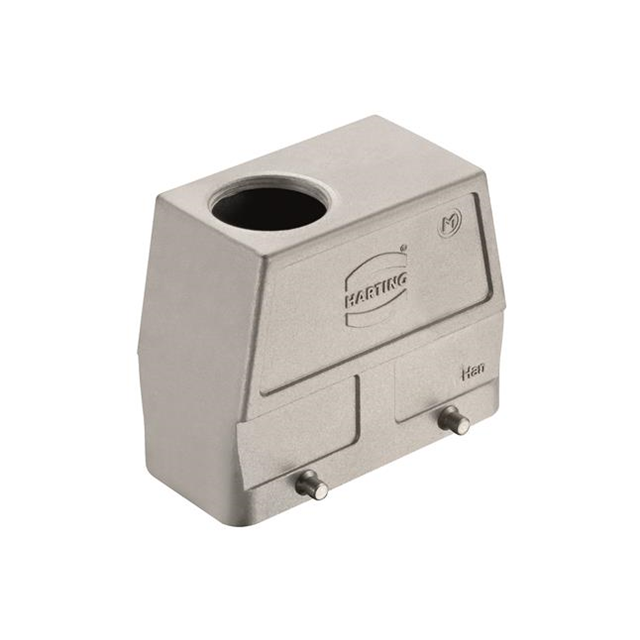

 HARTING | Hood | Top Entry | M32 | Aluminum Die Cast | IP65 - Dust Tight Water Resistant | Locking Clip (2) on Base Bottom | -40 C | 125 °C | 1.693 " | 43 mm | 93.5 mm | 3.681 in | 76 mm | 2.992 in | 16 B |
