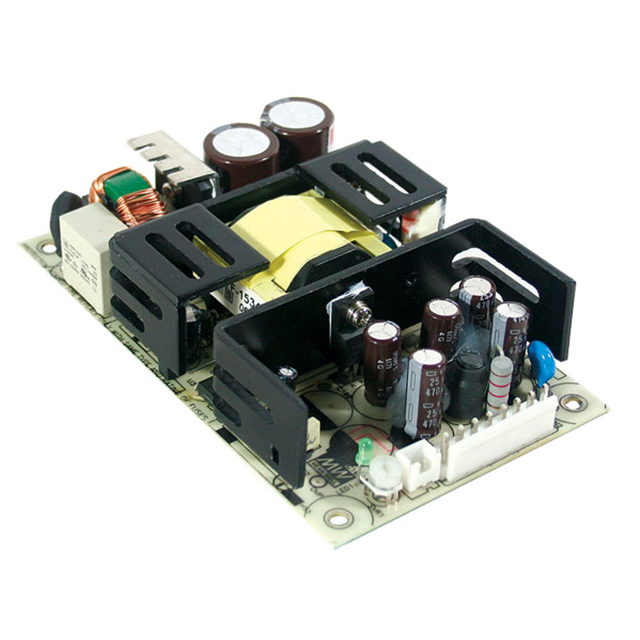

RPD-75 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 24V 73W
| Part | Minimum Load Required | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Applications | Type | Voltage - Output 1 | Current - Output 2 | Efficiency | Current - Output 1 | Approval Agency | Features | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 2 | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 70 °C | -20 °C | 73 W | 4000 V | 5 " | 76.2 mm | 31 mm | 1.22 in | 3 " | 127 mm | Medical | Open Frame | 5 V | 2 A | 79 % | 5 A | CB CE cURus TUV | Adjustable Output Universal Input | Chassis Mount | 264 VAC 370 VDC | 90 VAC 127 VDC | 24 V | 2 | |
MEAN WELL USA Inc. | 70 °C | -20 °C | 71 W | 4000 V | 5 " | 76.2 mm | 31 mm | 1.22 in | 3 " | 127 mm | Medical | Open Frame | 5 V | 3 A | 77 % | 7 A | CB CE cURus TUV | Adjustable Output Universal Input | Chassis Mount | 264 VAC 370 VDC | 90 VAC 127 VDC | 12 V | 2 |
