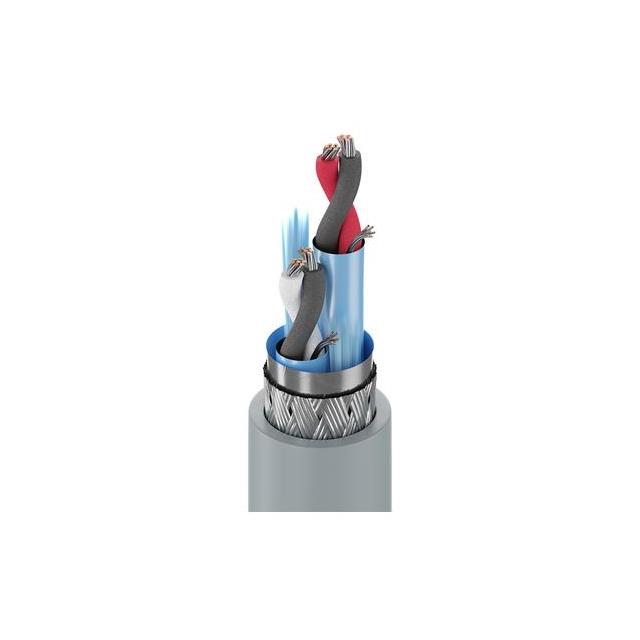

8162 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 4COND 24AWG
| Part | Shield Coverage | Shield Material | Jacket Color | Wire Gauge | Voltage | Ratings | Usage | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Features | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Number of Conductors | Conductor Insulation | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Chrome | 24 AWG | 300 VDC | UL Style 2493 | Computer | Poly-Vinyl Chloride (PVC) | Multi-Pair | 1.219 mm | 0.048 in | 304.8 m | 1000 ft | Drain Wire | 7 | 32 AWG | 60 °C | -40 C | 8.71 mm | 0.343 in | Braid Foil | 4 | Foam Polyethylene (FPE) | Copper Tinned | ||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Chrome | 24 AWG | UL Style 2493 | Computer | Poly-Vinyl Chloride (PVC) | Multi-Pair | 1.219 mm | 0.048 in | Drain Wire | 7 | 36 AWG | 60 °C | -40 C | 8.71 mm | 0.343 in | Braid Foil | 4 | Foam Polyethylene (FPE) | Copper Tinned | 100 ft | 30.5 m |
