141085 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

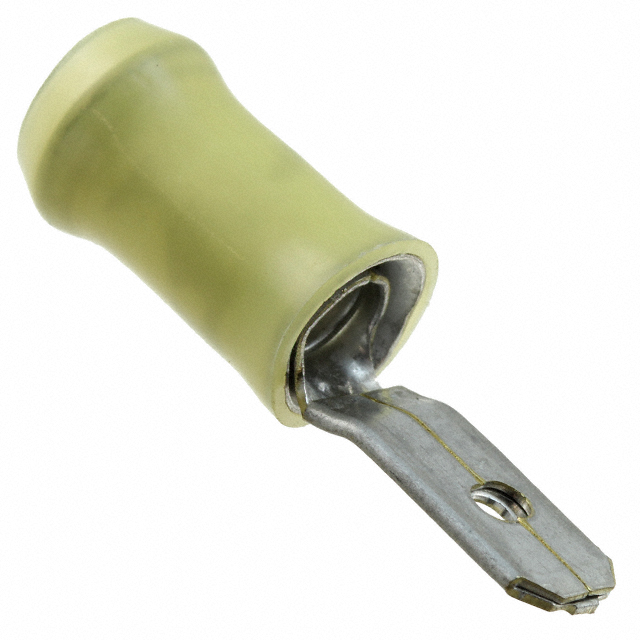

TERMINAL TAB FASTON PIDG 6,35 ROHS COMPLIANT: YES
| Part | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Wire Gauge [Max] | Wire Gauge [Min] | Features | Terminal Type | Tab Thickness | Tab Thickness | Contact Finish | Gender | Tab Length [x] | Tab Length [x] | Contact Material | Insulation | Color | Mounting Type | Termination | Tab Width [x] | Tab Width [x] | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.224 " | 5.69 mm | 12 AWG | 10 AWG | Serrated Termination | Standard | 0.81 mm | 0.032 in | Tin | Male | 0.37 in | 9.4 mm | Brass | Non-Mating End Insulated | Yellow | Free Hanging (In-Line) | Crimp | 6.35 mm | 0.25 in | 27.99 mm | 1.102 in |
