470095YY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

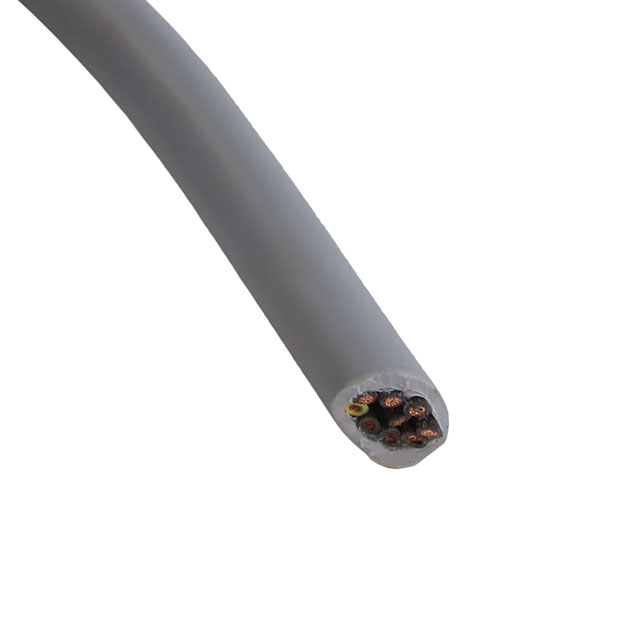

CBLE 9CND 21AWG GRY METER
| Part | Voltage | Length [x] | Length [x] | Jacket (Insulation) Material | Cable Type | Spool Size | Spool Size | Wire Gauge | Length | Length | Jacket Color | Number of Conductors | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Conductor Material | Conductor Insulation | Features | Conductor Strand | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 300 V | 1 m | 3.28 ft | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 984.3 ft | 300 m | 21 AWG | 10 m 30 m 984.3 ft | 300 m | Gray | 9 | Enter Number of Meters in Order Quantity | 8.51 mm | 0.335 " | 0.0354 in | 0.9 mm | 32.81 ft 98.43 ft | Copper Bare | Poly-Vinyl Chloride (PVC) | Chemical Resistant Oil Resistant UV Resistant | 0.007 in 20 | -40 °C | 80 C |
ALPHA WIRE | 300 V | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 21 AWG | 100 m | Gray | 9 | 8.51 mm | 0.335 " | 0.0354 in | 0.9 mm | 328.1 ft | Copper Bare | Poly-Vinyl Chloride (PVC) | Chemical Resistant Oil Resistant UV Resistant | 0.007 in 20 | -40 °C | 80 C |
