044441 Series
Manufacturer: Molex
Beta
⌘K

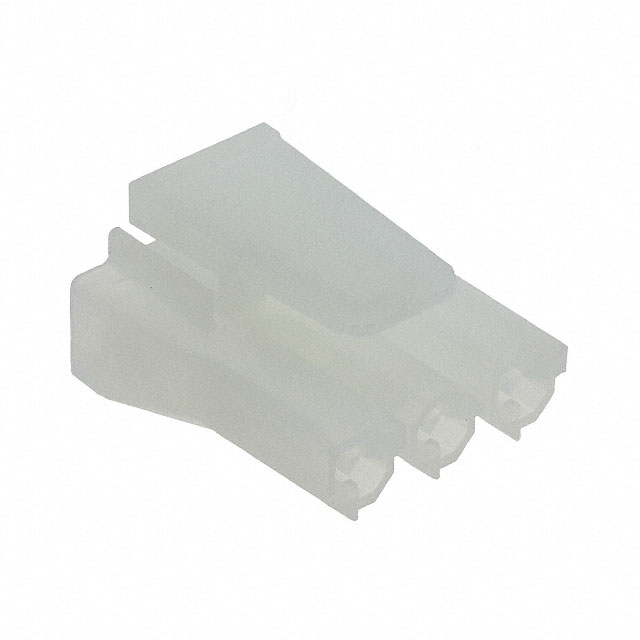

CONN HOUSING RCP 3 POS 7.49MM CRIMP ST CABLE MOUNT NATURAL SABRE™ BAG
| Part | Material - Insulation | Stacking Direction | Fastening Type | Mounting Type | Current Rating (Amps) | Connector Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Note | Color | Contact Termination | Pitch [x] | Pitch [x] | Number of Rows | Number of Positions | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Nylon Polyamide (PA) | Side to Side | Latch Lock | Free Hanging (In-Line) | 18 A | Receptacle | Female Blade Socket | -40 °C | 75 ░C | Contacts Not Included | Natural | Crimp | 0.295 in | 7.5 mm | 1 | ||
 Molex | Nylon Polyamide (PA) | Side to Side | Latch Lock | Free Hanging (In-Line) | 18 A | Receptacle | Female Blade Socket | -40 °C | 75 ░C | Contacts Not Included | Black | Crimp | 0.295 in | 7.5 mm | 1 | ||
 Molex | Nylon Polyamide (PA) | Side to Side | Latch Lock | Free Hanging (In-Line) | 18 A | Receptacle | Female Blade Socket | -40 °C | 75 ░C | Contacts Not Included | Black | Crimp | 0.295 in | 7.5 mm | 1 | ||
 Molex | Nylon Polyamide (PA) | Side to Side | Latch Lock | Free Hanging (In-Line) | 18 A | Receptacle | Female Blade Socket | -40 °C | 75 ░C | Contacts Not Included | Natural | Crimp | 0.295 in | 7.5 mm | 1 | 2 | |
 Molex | Nylon Polyamide (PA) | Latch Lock | Free Hanging (In-Line) | 10 A | Receptacle | Female Blade Socket | -40 °C | 75 ░C | Contacts Not Included | Black | Crimp | 0.295 in | 7.5 mm | 1 | 600 V | ||
 Molex | Nylon Polyamide (PA) | Latch Lock | Free Hanging (In-Line) | 10 A | Receptacle | Female Blade Socket | -40 °C | 75 ░C | Contacts Not Included | Black | Crimp | 0.295 in | 7.5 mm | 1 | 2 | 600 V | |
 Molex | Nylon Polyamide (PA) | Latch Lock | Free Hanging (In-Line) | 10 A | Receptacle | Female Blade Socket | -40 °C | 75 ░C | Contacts Not Included | Black | Crimp | 0.295 in | 7.5 mm | 1 | 600 V | ||
 Molex | Nylon Polyamide (PA) | Side to Side | Latch Lock | Free Hanging (In-Line) | 18 A | Receptacle | Female Blade Socket | -40 °C | 75 ░C | Contacts Not Included | Natural | Crimp | 0.295 in | 7.5 mm | 1 | 6 | |
 Molex | Nylon Polyamide (PA) | Latch Lock | Free Hanging (In-Line) | 10 A | Receptacle | Female Blade Socket | -40 °C | 75 ░C | Contacts Not Included | Black | Crimp | 0.295 in | 7.5 mm | 1 | 4 | 600 V |
