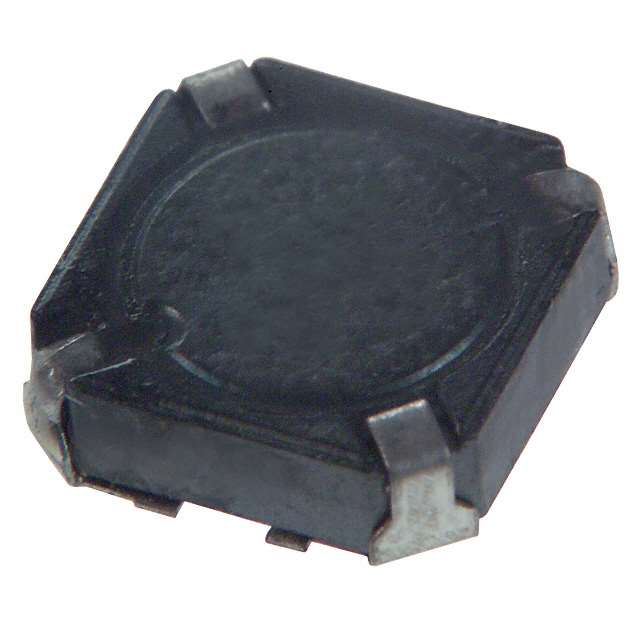

ELL-6PM Series

Catalog

FIXED IND 22UH 700MA 200MOHM SMD

Part	Mounting Type	Inductance Frequency - Test	DC Resistance (DCR)	Shielding	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Inductance	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type
Panasonic Industrial Automation Sales ELL-6PM220M	Surface Mount	100 kHz	200 mOhm	Shielded	700 mA	2 mm	0.079 in	Nonstandard	22 µH	20 %	0.236 in	6 mm	0.236 in	6 mm	Wirewound
Panasonic Industrial Automation Sales ELL-6PM3R3N	Surface Mount	100 kHz	35 mOhm	Shielded	1.85 A	2 mm	0.079 in	Nonstandard	3.3 µH	30 %	0.236 in	6 mm	0.236 in	6 mm	Wirewound
Panasonic Industrial Automation Sales ELL-6PM330M	Surface Mount	100 kHz	290 mOhm	Shielded	0.55 A	2 mm	0.079 in	Nonstandard	33 µH	20 %	0.236 in	6 mm	0.236 in	6 mm	Wirewound
Panasonic Industrial Automation Sales ELL-6PM100M	Surface Mount	100 kHz	85 mOhm	Shielded	1 A	2 mm	0.079 in	Nonstandard	10 µH	20 %	0.236 in	6 mm	0.236 in	6 mm	Wirewound
