A6FR Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH PIANO DIP SPST 0.025A 24V

Part	Electrical Life	Mechanical Life	Length	Length	Actuator Type	Circuit	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Pitch	Pitch	Actuator Level	Current Rating (Amps)	Voltage Rating	Length [x]	Length [x]

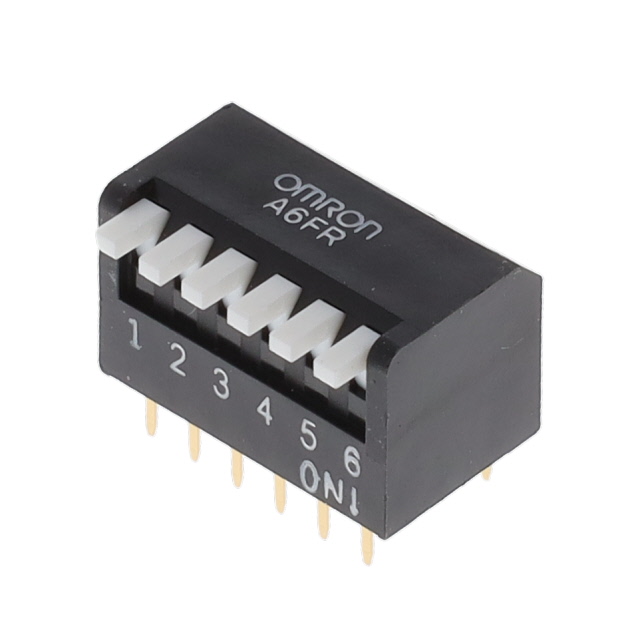

Omron Electronics Inc-EMC Div A6FR-6104	1000 Cycles	1000 Cycles	0.661 in	16.8 mm	Piano	SPST	PC Pin	-20 ░C	70 °C	6	10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Raised	25 mA	24 VDC

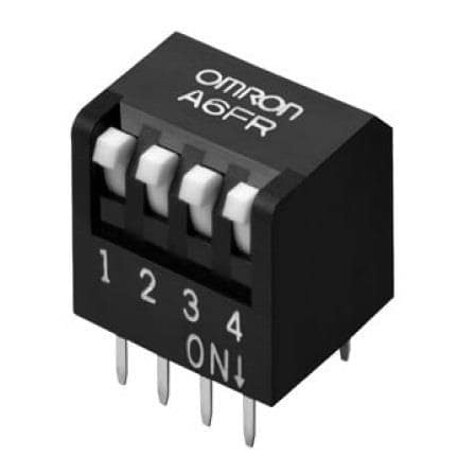

Omron Electronics Inc-EMC Div A6FR-4101	1000 Cycles	1000 Cycles			Piano	SPST	PC Pin	-20 ░C	70 °C	4	10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Flush Recessed	25 mA	24 VDC	11.71 mm	0.461 "

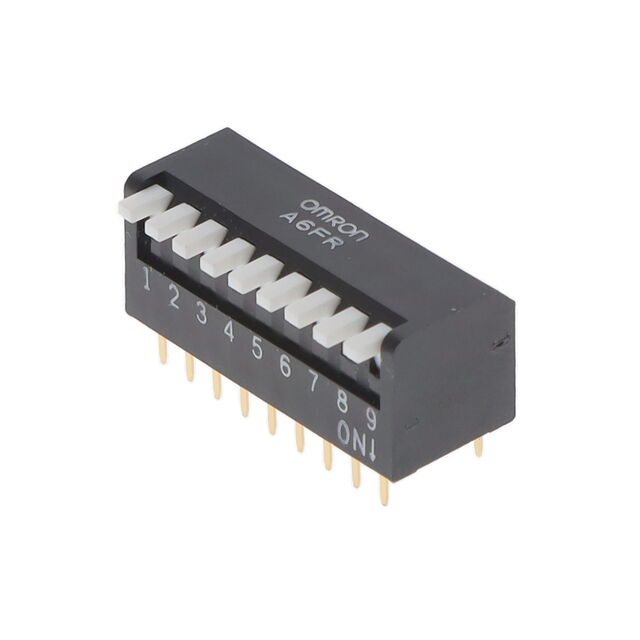

Omron Electronics Inc-EMC Div A6FR-9104	1000 Cycles	1000 Cycles	0.961 in	24.41 mm	Piano	SPST	PC Pin	-20 ░C	70 °C	9	10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Raised	25 mA	24 VDC

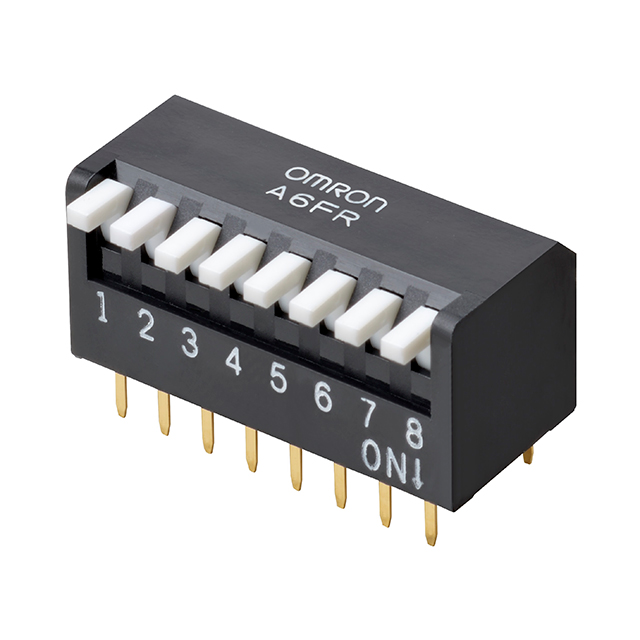

Omron Electronics Inc-EMC Div A6FR-8104	1000 Cycles	1000 Cycles			Piano	SPST	PC Pin	-20 ░C	70 °C	8	10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Raised	25 mA	24 VDC	21.87 mm	0.861 in

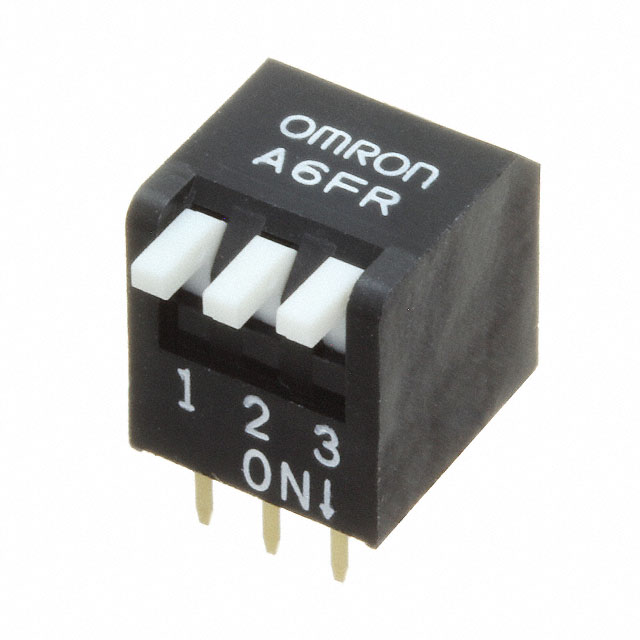

Omron Electronics Inc-EMC Div A6FR-3104	1000 Cycles	1000 Cycles	0.361 in	9.17 mm	Piano	SPST	PC Pin	-20 ░C	70 °C		10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Raised	25 mA	24 VDC

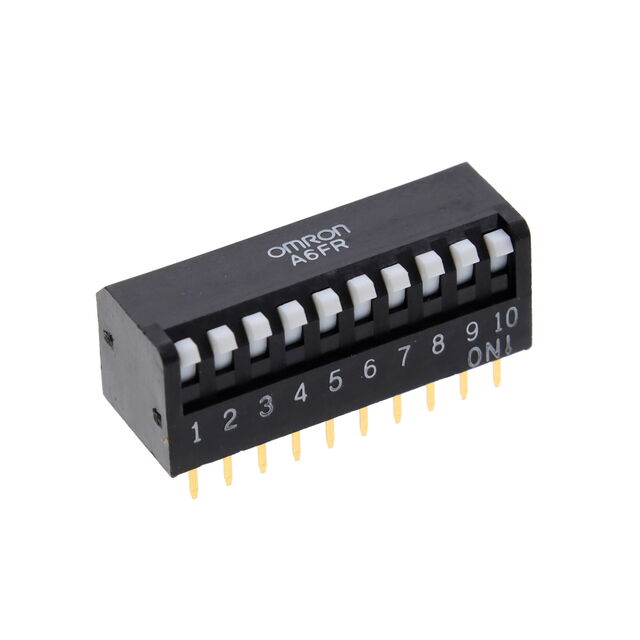

Omron Electronics Inc-EMC Div A6FR-0101	1000 Cycles	1000 Cycles	1.061 in	26.95 mm	Piano	SPST	PC Pin	-20 ░C	70 °C	10	10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Flush Recessed	25 mA	24 VDC

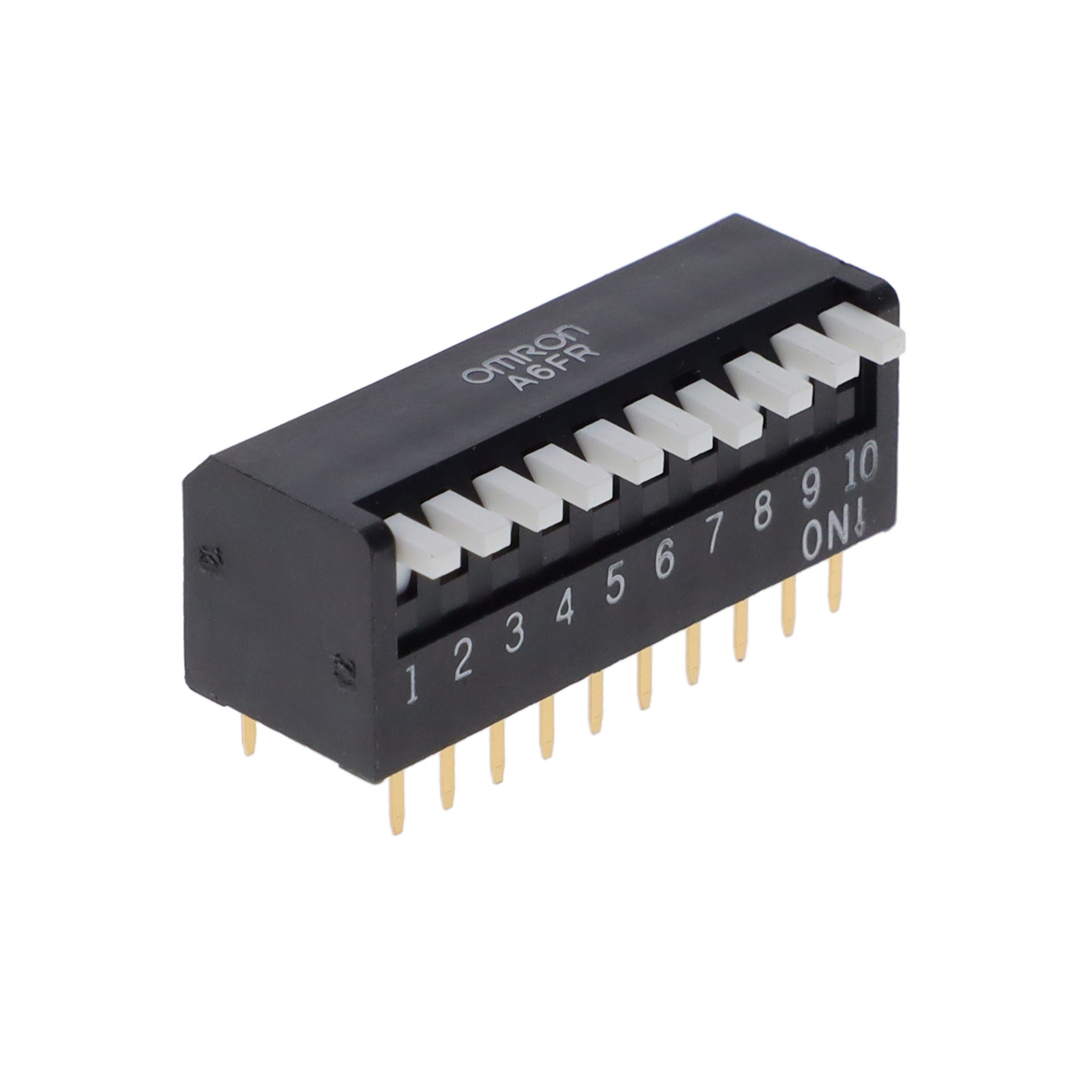

Omron Electronics Inc-EMC Div A6FR-0104	1000 Cycles	1000 Cycles	1.061 in	26.95 mm	Piano	SPST	PC Pin	-20 ░C	70 °C	10	10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Raised	25 mA	24 VDC

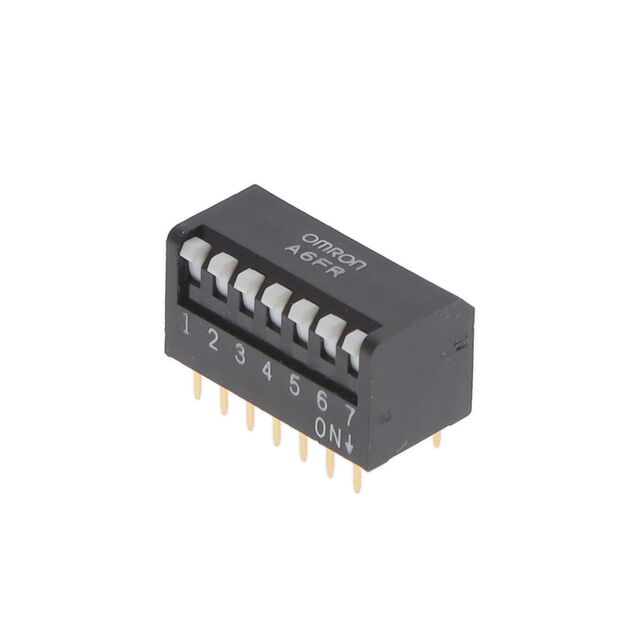

Omron Electronics Inc-EMC Div A6FR-7101	1000 Cycles	1000 Cycles	0.761 in	19.33 mm	Piano	SPST	PC Pin	-20 ░C	70 °C	7	10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Flush Recessed	25 mA	24 VDC

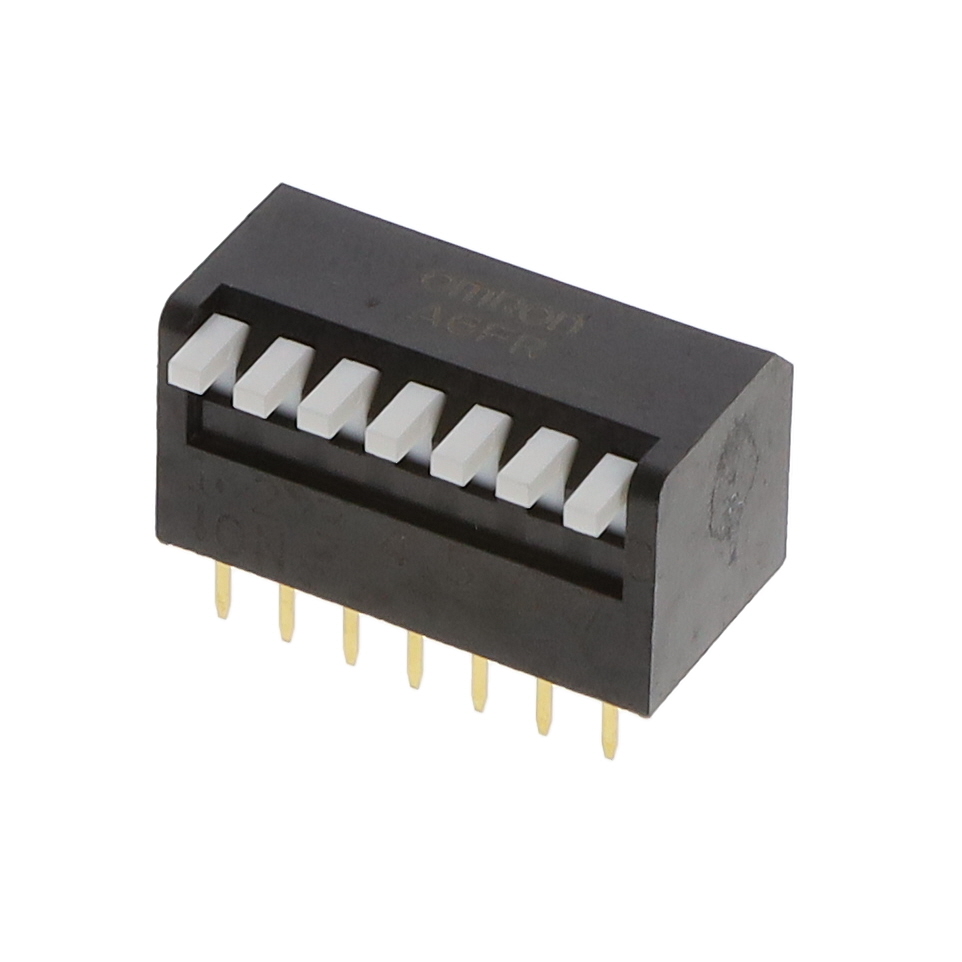

Omron Electronics Inc-EMC Div A6FR-7104	1000 Cycles	1000 Cycles	0.761 in	19.33 mm	Piano	SPST	PC Pin	-20 ░C	70 °C	7	10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Raised	25 mA	24 VDC

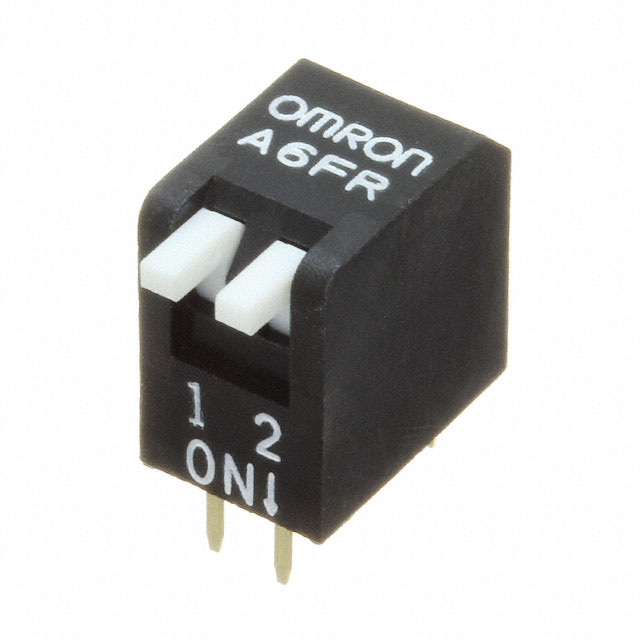

Omron Electronics Inc-EMC Div A6FR-2104	1000 Cycles	1000 Cycles			Piano	SPST	PC Pin	-20 ░C	70 °C	2	10.2 mm	0.402 in	Right Angle Through Hole	2.54 mm	0.1 "	Raised	25 mA	24 VDC	6.63 mm	0.261 in
