H9030 Series
Manufacturer: Harwin Inc.
Beta
⌘K

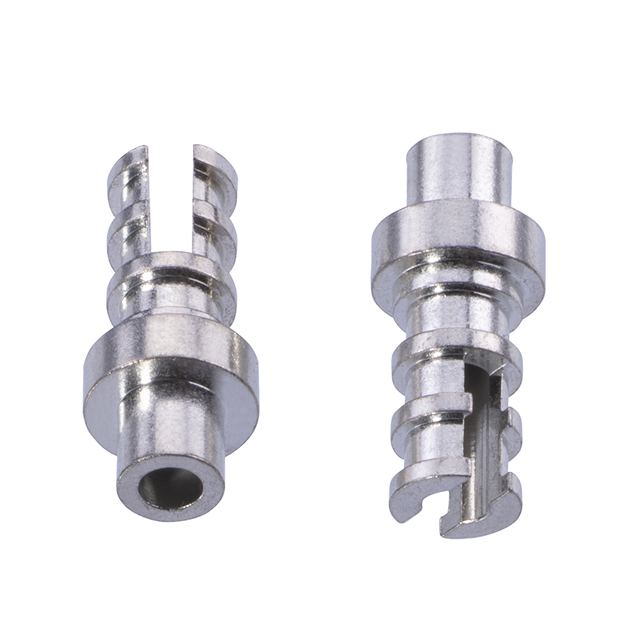

VERTICAL THROUGHBOARD SLOTTED TURRET LUG ROHS COMPLIANT: YES
| Part | Insulation | Staking Side OD [Min] | Staking Side OD [Min] | Staking Side OD [Max] | Staking Side OD [Max] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Board [Min] | Length - Above Board [Min] | Length - Above Board [Max] | Length - Above Board [Max] | Terminal Type | Contact Material | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Number of Turrets | Length - Overall | Length - Overall | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Max] [diameter] | Board Thickness | Board Thickness | Diameter - Turret Head [Min] [diameter] | Diameter - Turret Head [Min] [diameter] | Diameter - Turret Head [Max] [diameter] | Diameter - Turret Head [Max] [diameter] | Contact Finish | Staking Side ID [Min] | Staking Side ID [Min] | Staking Side ID [Max] | Staking Side ID [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Non-Insulated | 2.73 mm | 0.107 in | 2.98 mm | 0.117 in | Swage | 0.187 in | 4.75 mm | 0.318 in | 8.08 mm | 8.58 mm | 0.338 in | Single End Hollow | Brass Alloy | 2.54 mm | 2.79 mm | 0.11 " | 0.1 " | Triple | 0.418 in | 10.62 mm | 0.115 in | 2.93 mm | 3.01 mm | 0.119 in | 0.063 in | 1.6 mm | 0.135 in | 3.43 mm | 3.68 mm | 0.145 in | Tin | 1.65 mm | 0.065 in | 1.91 mm | 0.075 in | Through Hole |
