395-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

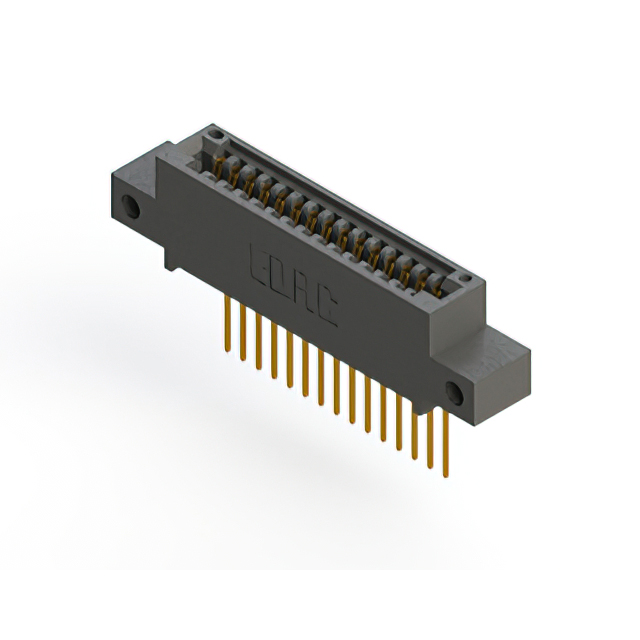

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Termination | Gender | Number of Rows | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Pitch | Pitch | Contact Type | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Wire Wrap | Female | 1 | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Solder | Female | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Solder | Female | 1 | Copper Alloy | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Solder | Female | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Solder | Female | 1 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Solder | Female | 1 | Copper Alloy | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " | Non Specified - Single Edge | -40 C | 105 ░C | Right Angle Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Wire Wrap | Female | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | Card Guides | ||
EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Solder | Female | 1 | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Single Edge | -40 C | 105 ░C | Right Angle Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Wire Wrap | Female | 1 | Copper Alloy | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 15 | 0.25 Ám | 10 Áin | Black | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 15 | Solder | Female | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Cantilever | Single | Card Guides |
