TPS652510 Series

Catalog

4.5-V TO 16-V INPUT, 3A/2A/2A OUTPUT, SYNCHRONOUS TRIPLE BUCK CONVERTER

Part	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Output Configuration	Voltage - Output (Max) [Max]	Output Type	Topology	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Frequency - Switching [Max]	Frequency - Switching [Min]	Function	Supplier Device Package	Current - Output	Package / Case	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Main Purpose	Outputs and Type [custom]	Contents	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part
Texas Instruments TPS652510RHAR	3	85 C	-40 ¯C	4.5 V	Surface Mount	Positive	16 V	Adjustable	Buck	16 V	0.8 V	2.2 MHz	300 kHz	Step-Down	40-VQFN (6x6)	2 A 3 A	40-VFQFN Exposed Pad

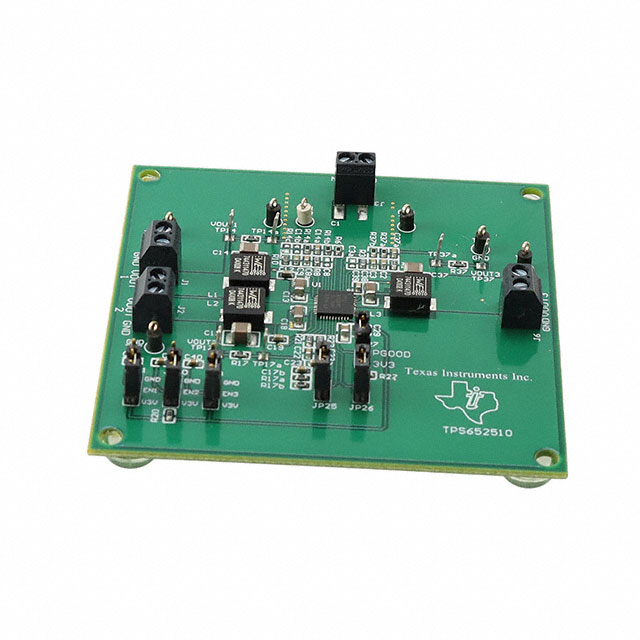

Texas Instruments TPS652510EVM												2.2 MHz	300 kHz			2 A 3 A		Fully Populated	Board(s)	Non-Isolated Non-Isolated Outputs	3	DC/DC Step Down	3	Board(s)	Buck	15 V	4.5 V	TPS65251
Texas Instruments TPS652510RHAT	3	85 C	-40 ¯C	4.5 V	Surface Mount	Positive	16 V	Adjustable	Buck	16 V	0.8 V	2.2 MHz	300 kHz	Step-Down	40-VQFN (6x6)	2 A 3 A	40-VFQFN Exposed Pad
