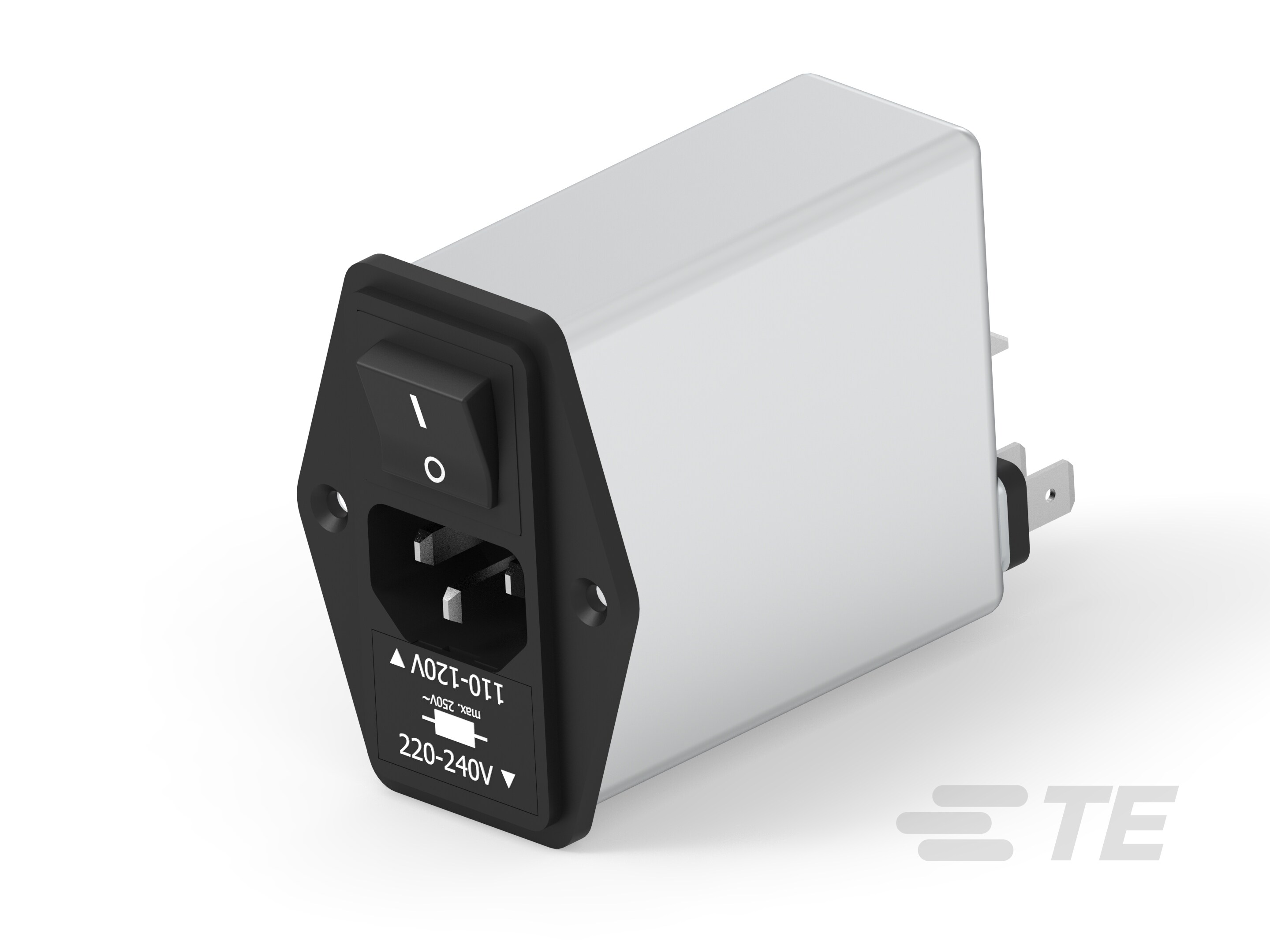

Schaffner FN390 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Style	Ingress Protection	Features	Fuse Holder, Drawer	Filter Type	Approval Agency	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Filter	Connector Type	Termination	Termination	Termination	Material Flammability Rating	Switch Features
TE Connectivity AMP Connectors FN393E-6-05-11	IEC 320-C14	IP40	Earth Line Choke Front or Rear Side Mount Voltage Selector	Fuse Holder	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	6 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
TE Connectivity AMP Connectors FN394-6-05-11	IEC 320-C14	IP40	Front or Rear Side Mount Voltage Selector	Twin Fused	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	6 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
TE Connectivity AMP Connectors FN393-1-05-11	IEC 320-C14	IP40	Front or Rear Side Mount Voltage Selector	Fuse Holder	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	1 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
TE Connectivity AMP Connectors FN394E-6-05-11	IEC 320-C14	IP40	Earth Line Choke Front or Rear Side Mount Voltage Selector	Twin Fused	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	6 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
TE Connectivity AMP Connectors FN393E-6-05-11	IEC 320-C14	IP40	Earth Line Choke Front or Rear Side Mount Voltage Selector	Fuse Holder	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	6 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
TE Connectivity AMP Connectors FN394E-2.5-05-11	IEC 320-C14	IP40	Earth Line Choke Front or Rear Side Mount Voltage Selector	Twin Fused	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	2.5 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
TE Connectivity AMP Connectors FN393E-1-05-11	IEC 320-C14	IP40	Earth Line Choke Front or Rear Side Mount Voltage Selector	Fuse Holder	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	1 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
TE Connectivity AMP Connectors FN393-6-05-11	IEC 320-C14	IP40	Front or Rear Side Mount Voltage Selector	Fuse Holder	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	6 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
TE Connectivity AMP Connectors FN394-6-05-11	IEC 320-C14	IP40	Front or Rear Side Mount Voltage Selector	Twin Fused	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	6 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
TE Connectivity AMP Connectors FN394-2.5-05-11	IEC 320-C14	IP40	Front or Rear Side Mount Voltage Selector	Twin Fused	Filtered (EMI RFI) - Commercial	CSA ENEC UL	Flange Panel Mount	29 mm	60 mm	2.5 A	Receptacle Male Blades - Module	6.3 mm	Quick Connect	0.25 "	UL94 V-2	Switch On-Off
