M2B25AA Series

Catalog

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.1A/28VAC; 0.1A/28VDC; ON-(ON)

Part	Electrical Life	Mechanical Life	Mounting Type	Actuator Marking	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Termination Style	Type	Switch Function	Features	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Color - Actuator/Cap

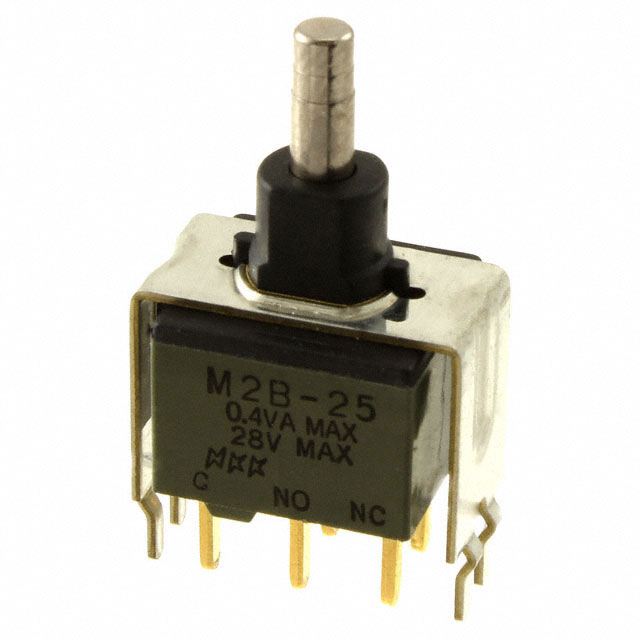

NKK Switches M2B25AA5G13	100000 Cycles	200000 Cycles	Through Hole	No Marking	28 V	28 V	Plunger for Cap	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	0.4 VA
NKK Switches M2B25AA5A13	25000 Steps	200000 Cycles	Through Hole	No Marking	125 V	30 V	Plunger for Cap	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	1 A
NKK Switches M2B25AA5W03-FA	25000 Steps	200000 Cycles	Through Hole	No Marking	125 V	30 V	Button Round	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	1 A	Black
NKK Switches M2B25AA5G40-FC	100000 Cycles	200000 Cycles	Right Angle Through Hole Vertical	No Marking	28 V	28 V	Button Round	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	0.4 VA	Red
NKK Switches M2B25AA5W30-FA	25000 Steps	200000 Cycles	Right Angle Through Hole	No Marking	125 V	30 V	Button Round	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	1 A	Black

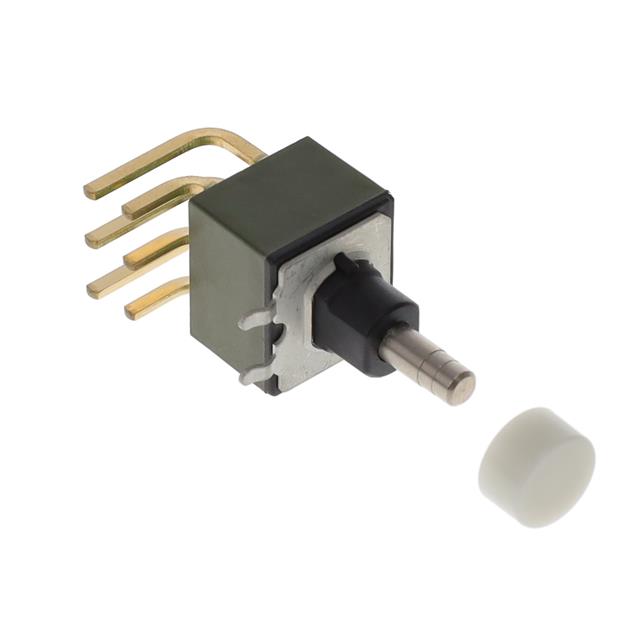

NKK Switches M2B25AA5G30-HB	100000 Cycles	200000 Cycles	Right Angle Through Hole	No Marking	28 V	28 V	Button Round	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	0.4 VA	White

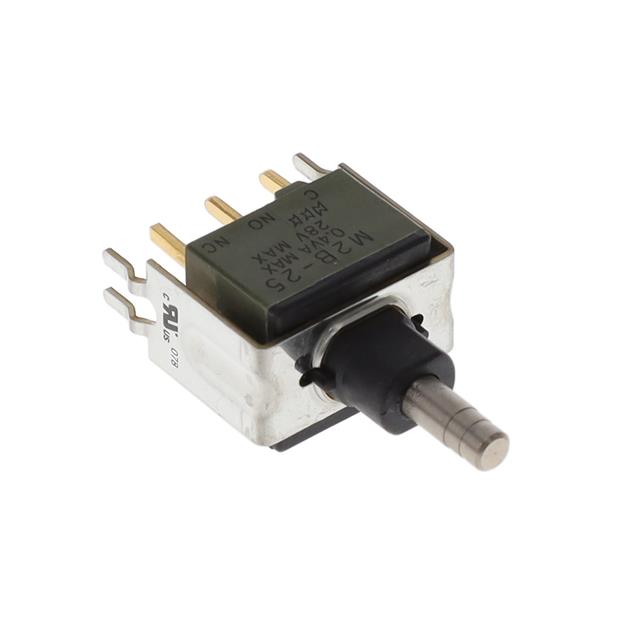

NKK Switches M2B25AA5G13/CUL	100000 Cycles	200000 Cycles	Through Hole	No Marking	28 V	28 V	Plunger for Cap	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	0.4 VA
NKK Switches M2B25AA5G40	100000 Cycles	200000 Cycles	Right Angle Through Hole Vertical	No Marking	28 V	28 V	Plunger for Cap	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	0.4 VA
NKK Switches M2B25AA5W03	25000 Steps	200000 Cycles	Through Hole	No Marking	125 V	30 V	Plunger for Cap	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	1 A
NKK Switches M2B25AA5G30-FC	100000 Cycles	200000 Cycles	Right Angle Through Hole	No Marking	28 V	28 V	Button Round	PC Pin	Standard	On-Mom	Process Sealed	DPDT	85 °C	-30 ░C	0.4 VA	Red
