TPS842 Series

Catalog

DEVELOPMENT KIT TPS84259

Part	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Contents	Utilized IC / Part	Current - Output	Voltage - Output	Main Purpose	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Frequency - Switching	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input	Frequency - Switching [Min]	Frequency - Switching [Max]

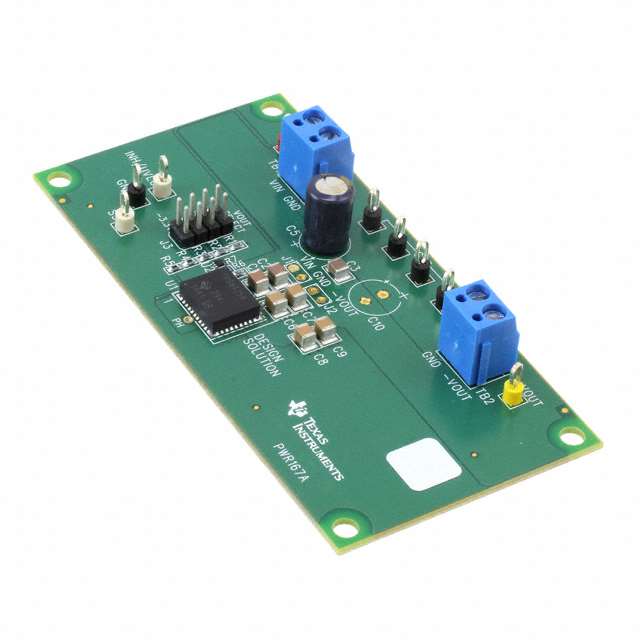

Texas Instruments TPS84259EVM-001	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	Board(s)	TPS84259	2 A	-15 V -12 V -5 V -3.3 V	DC/DC Negative Inverter	Inverting	40 V	4.5 V	800 kHz

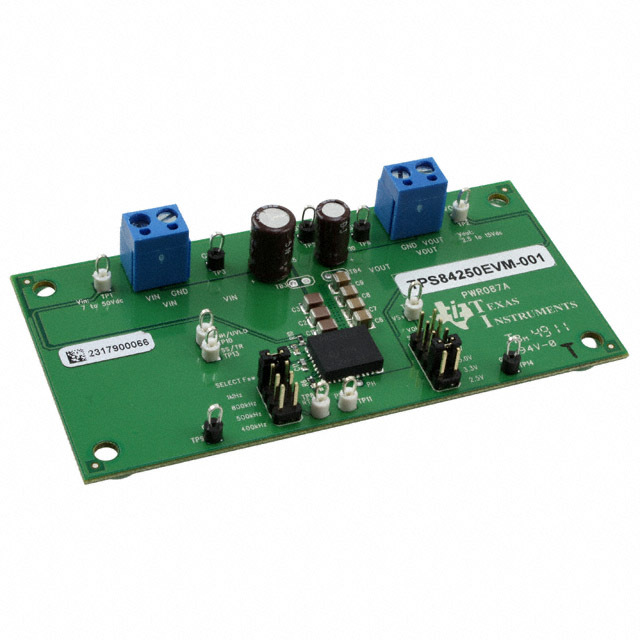

Texas Instruments TPS84250EVM-001	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	Board(s)	TPS84250	2.5 A	2.5 V 3.3 V 5 V 12 V 15 V	DC/DC Step Down	Buck	50 V	7 V
Texas Instruments TPS84210EVM-002	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	Board(s)		2 A		DC/DC Step Down	Buck				0.8 V	3.3 V	3.3 V 5 V	500 kHz	1 MHz
