178296 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

DYNAMIC 3100 HDR ASSY 6P H K/X ROHS COMPLIANT: YES

Part	Contact Material	Insulation Height	Insulation Height	Number of Positions	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Contact Finish - Post	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Voltage Rating	Style	Connector Type	Insulation Color	Contact Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Insulation Material	Termination	Applications	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Mating

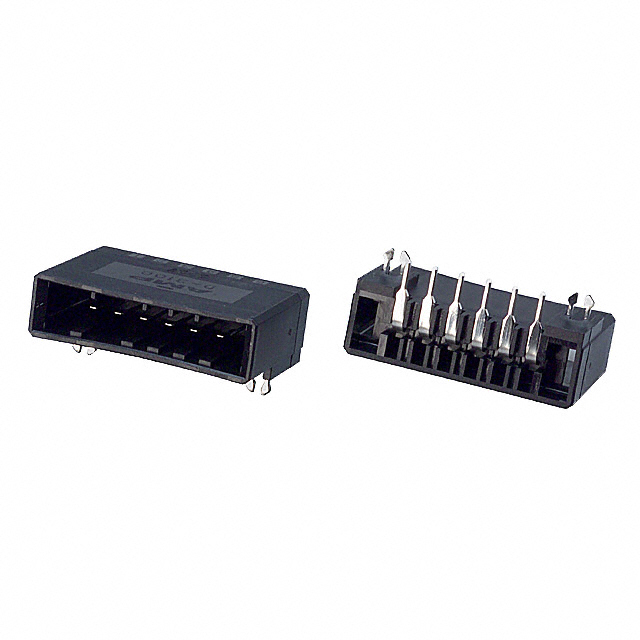

TE Connectivity Raychem Cable Protection 1-178296-5	Copper Alloy	9.35 mm	0.368 in	6	Detent Lock	0.15 in	3.81 mm	Rectangular	Tin	1	78.7 µin	2 µm	Shrouded - 4 Wall	250 VDC	Board to Board Cable	Header	Black	Tab	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Glass Filled Polyester Thermoplastic	Solder	General Purpose Industrial	UL94 V-0	All

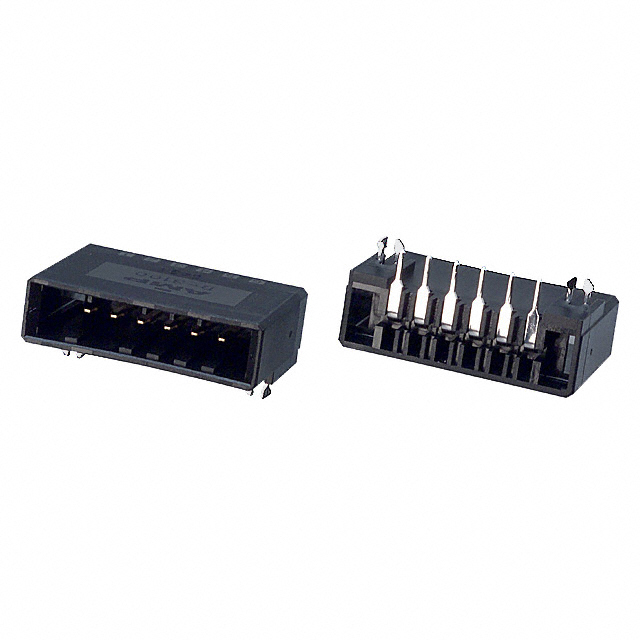

TE Connectivity Raychem Cable Protection 1-178296-2	Copper Alloy	9.35 mm	0.368 in	6	Detent Lock	0.15 in	3.81 mm	Rectangular	Tin	1	15 µin	0.38 µm	Shrouded - 4 Wall	250 VDC	Board to Board Cable	Header	Black	Tab	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Glass Filled Polyester Thermoplastic	Solder	General Purpose Industrial	UL94 V-0	All	Gold PdNi +Gold

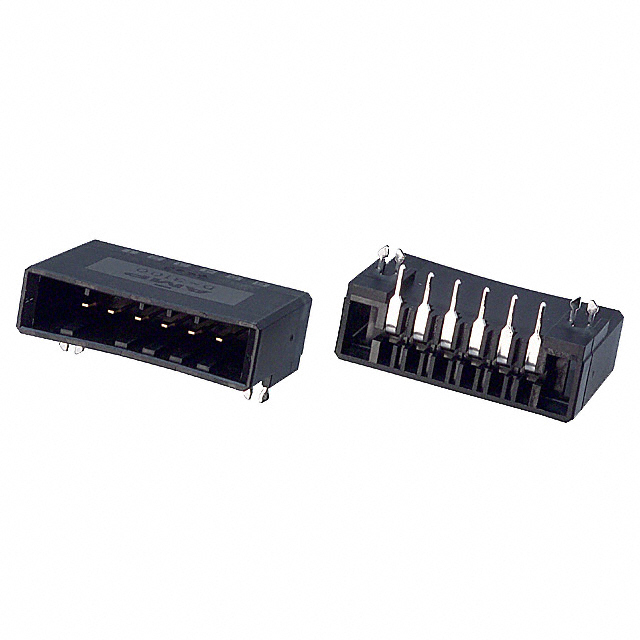

TE Connectivity Raychem Cable Protection 1-178296-3	Copper Alloy	9.35 mm	0.368 in	6	Detent Lock	0.15 in	3.81 mm	Rectangular	Tin	1	30 Áin	0.76 Ám	Shrouded - 4 Wall	250 VDC	Board to Board Cable	Header	Black	Tab	Through Hole Right Angle	105 ░C	-55 °C	3.81 mm	0.15 in	Glass Filled Polyester Thermoplastic	Solder	General Purpose Industrial	UL94 V-0	All	Gold
