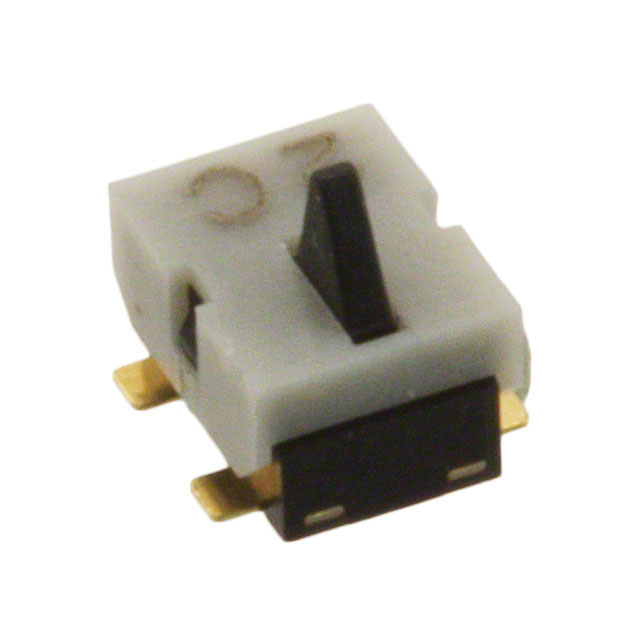

CL-DB-1 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
DETECT SWITCH, SPST-NO, 0.001A, 5V, SMD ROHS COMPLIANT: YES
| Part | Operating Force | Overtravel [custom] | Overtravel [custom] | Termination Style | Mounting Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Voltage Rating - DC | Operating Position | Operating Position | Pretravel | Pretravel | Switch Function | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 35 gf | 0.74 mm | 0.029 " | Gull Wing | Surface Mount | 1 mA | 85 °C | -40 C | 100000 Cycles | 5 V | 3.05 mm | 0.12 in | 0.3 mm | 0.012 in | Off-Mom | Angled Toggle (Detector) | SPST-NO |
