PEC36 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Shrouding	Number of Positions	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Style	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Current Rating (Amps)	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]

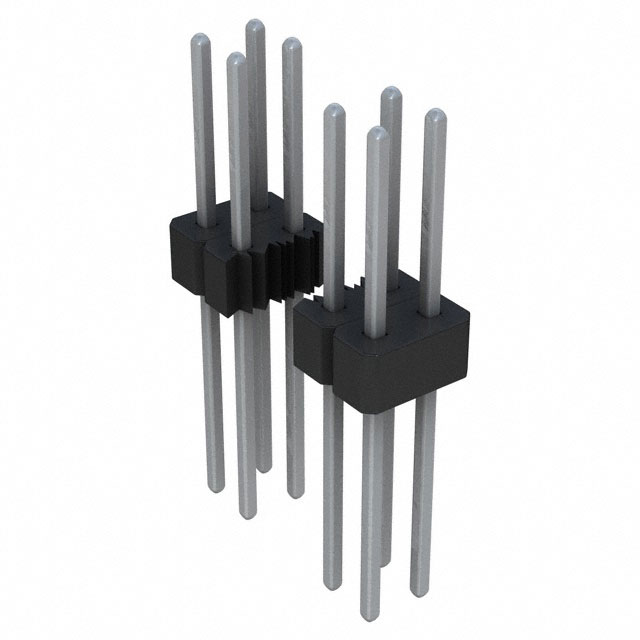

Sullins Connector Solutions PEC36DFDN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	72	Male Pin	0.1 "	2.54 mm	Solder	8.08 mm	0.318 in	Square	Black	All	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Through Hole	0.1 in	2.54 mm	Tin	21.29 mm	0.838 in	10.67 mm	0.42 in	Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A	2

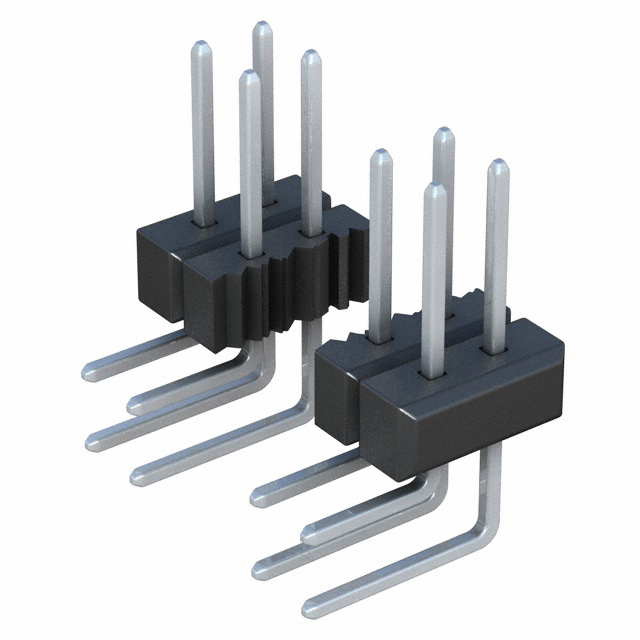

Sullins Connector Solutions PEC36DBAN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	72	Male Pin	0.1 "	2.54 mm	Solder	5.84 mm	0.23 in	Square	Black	All	UL94 V-0	Phosphor Bronze			Board to Board Cable	Right Angle Through Hole	0.1 in	2.54 mm	Tin			2.54 mm	0.1 in	Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A	2	6.1 mm	0.24 in

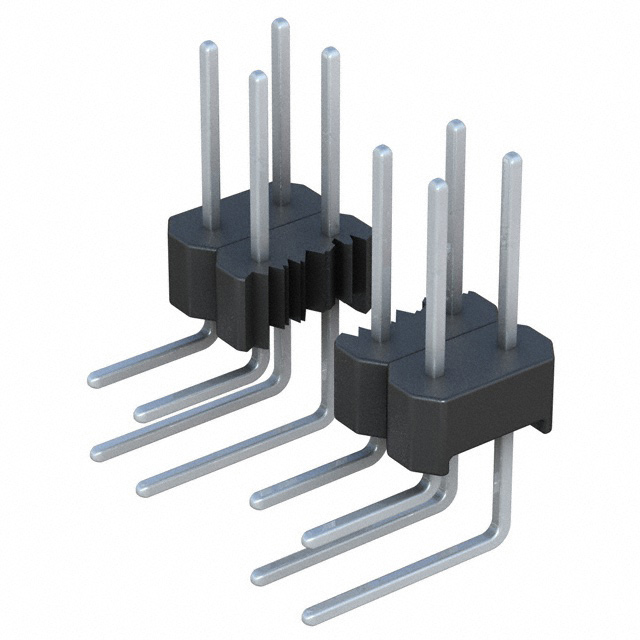

Sullins Connector Solutions PEC36DBBN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	72	Male Pin	0.1 "	2.54 mm	Solder	5.84 mm	0.23 in	Square	Black	All	UL94 V-0	Phosphor Bronze			Board to Board Cable	Right Angle Through Hole	0.1 in	2.54 mm	Tin					Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A	2	6.1 mm	0.24 in	5.08 mm	0.2 "

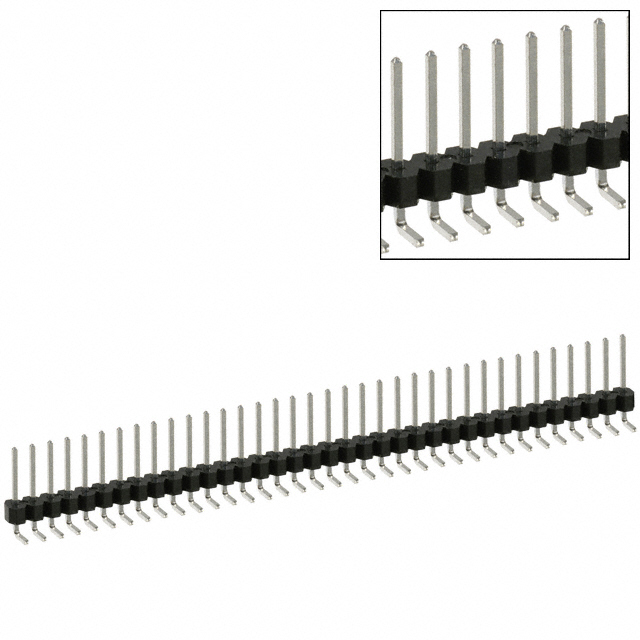

Sullins Connector Solutions PEC36SGAN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	36	Male Pin	0.1 "	2.54 mm	Solder	8.08 mm	0.318 in	Square	Black	All	UL94 V-0	Phosphor Bronze	0.14 in	3.56 mm	Board to Board Cable	Right Angle Through Hole			Tin			2.54 mm	0.1 in	Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A						1

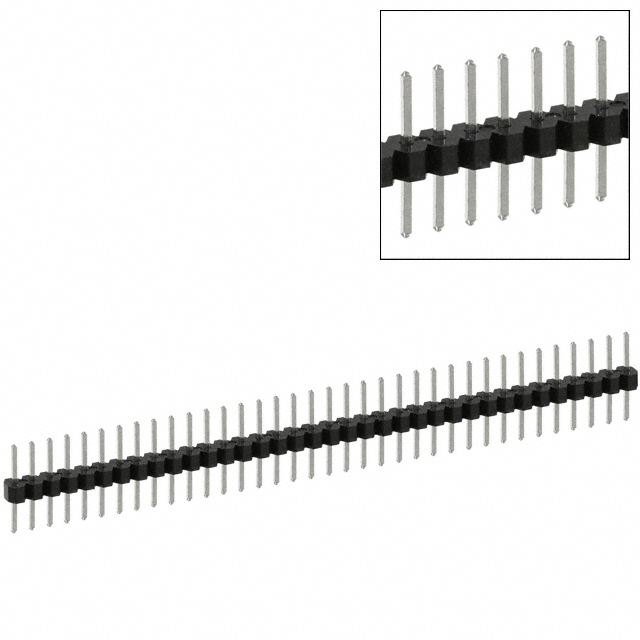

Sullins Connector Solutions PEC36SABN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	36	Male Pin	0.1 "	2.54 mm	Solder	5.84 mm	0.23 in	Square	Black	All	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Through Hole			Tin	14.22 mm	0.56 in	5.84 mm	0.23 "	Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A						1

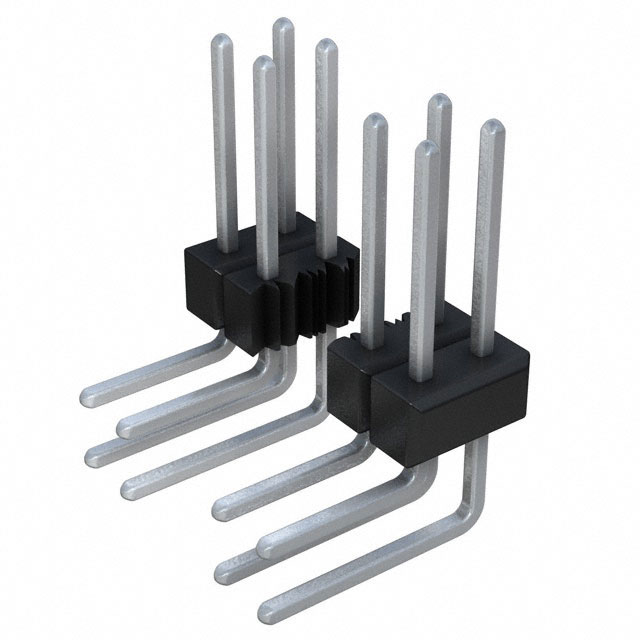

Sullins Connector Solutions PEC36DGBN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	72	Male Pin	0.1 "	2.54 mm	Solder	8.08 mm	0.318 in	Square	Black	All	UL94 V-0	Phosphor Bronze			Board to Board Cable	Right Angle Through Hole	0.1 in	2.54 mm	Tin					Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A	2	6.1 mm	0.24 in	5.08 mm	0.2 "

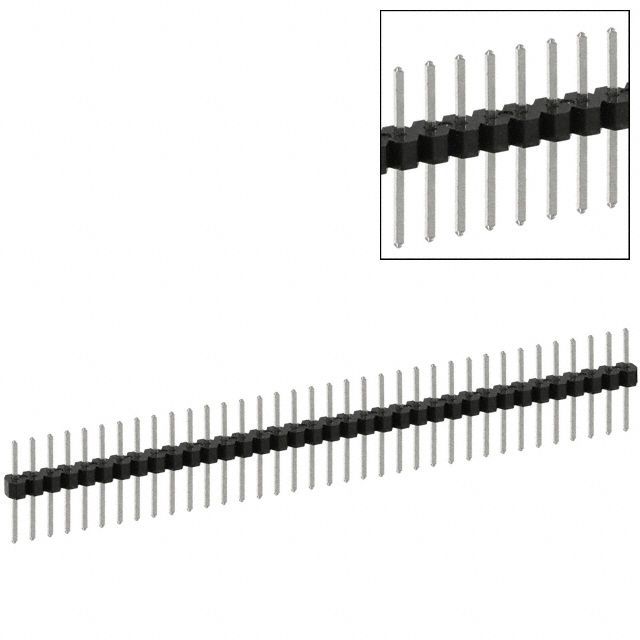

Sullins Connector Solutions PEC36SACN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	36	Male Pin	0.1 "	2.54 mm	Solder	5.84 mm	0.23 in	Square	Black	All	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Through Hole			Tin	16.51 mm	0.65 in	8.13 mm	0.32 in	Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A						1

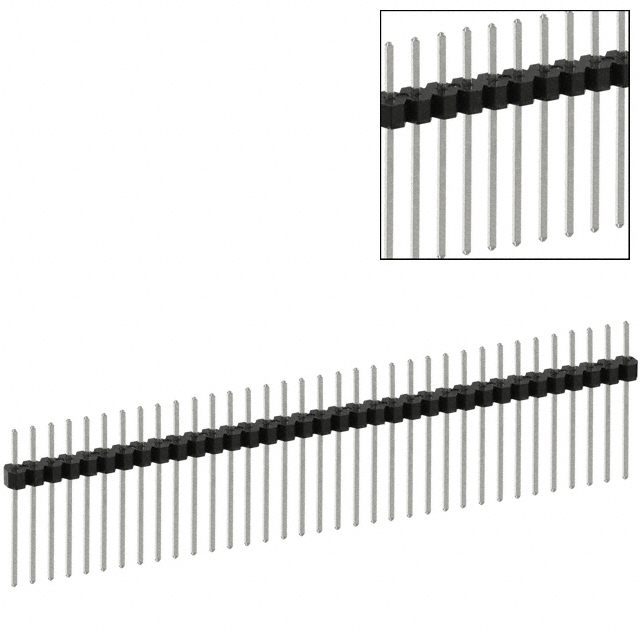

Sullins Connector Solutions PEC36SAFN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	36	Male Pin	0.1 "	2.54 mm	Solder	5.84 mm	0.23 in	Square	Black	All	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Through Hole			Tin	24.13 mm	0.95 in			Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A				15.75 mm	0.62 "	1

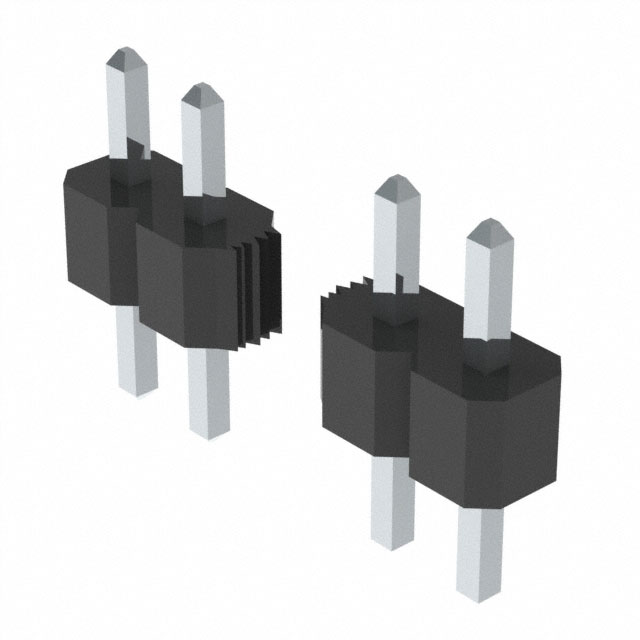

Sullins Connector Solutions PEC36SZAN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	36	Male Pin	0.1 "	2.54 mm	Solder	3.05 mm	0.12 in	Square	Black	All	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Through Hole			Tin	8.64 mm	0.34 in	3.05 mm	0.12 in	Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A						1

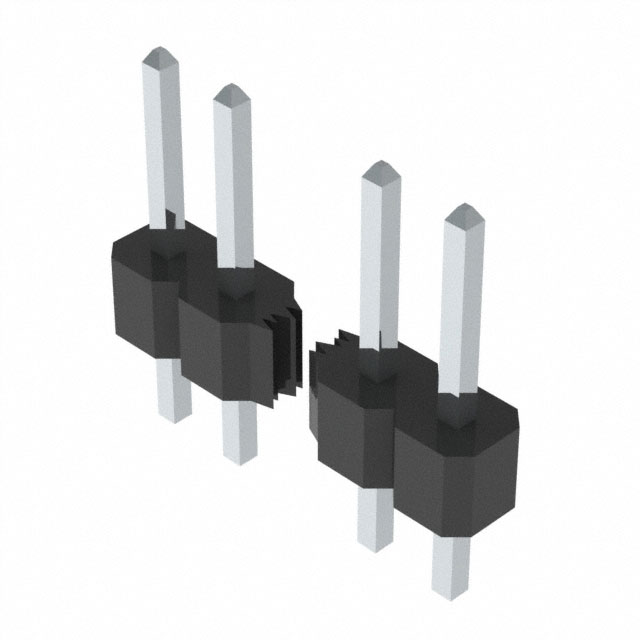

Sullins Connector Solutions PEC36SAAN	2.54 µm	100 µin	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	36	Male Pin	0.1 "	2.54 mm	Solder	5.84 mm	0.23 in	Square	Black	All	UL94 V-0	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Through Hole			Tin			3.05 mm	0.12 in	Push-Pull	100 çin	2.54 çm	Header Breakaway	3 A						1	11.43 mm	0.45 in
