DP83825I Series

Smallest form factor (3-mm by 3-mm), low-power 10/100-Mbps Ethernet PHY transceiver with 50-MHz c

Catalog

Smallest form factor (3-mm by 3-mm), low-power 10/100-Mbps Ethernet PHY transceiver with 50-MHz c

Part	Type	Function	Supplied Contents	Embedded	Secondary Attributes	Utilized IC / Part	Protocol	Mounting Type	Duplex	Supplier Device Package	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate

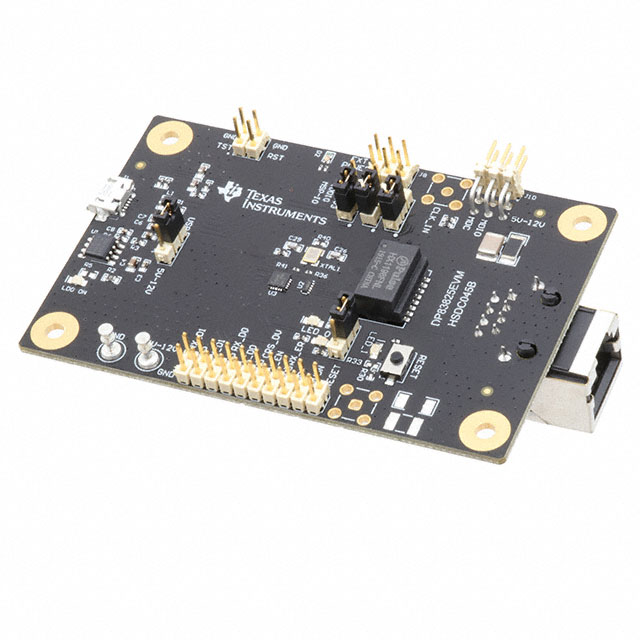

Texas Instruments DP83825EVM	Interface	Ethernet	Board(s)		On-Board LEDs	DP83825

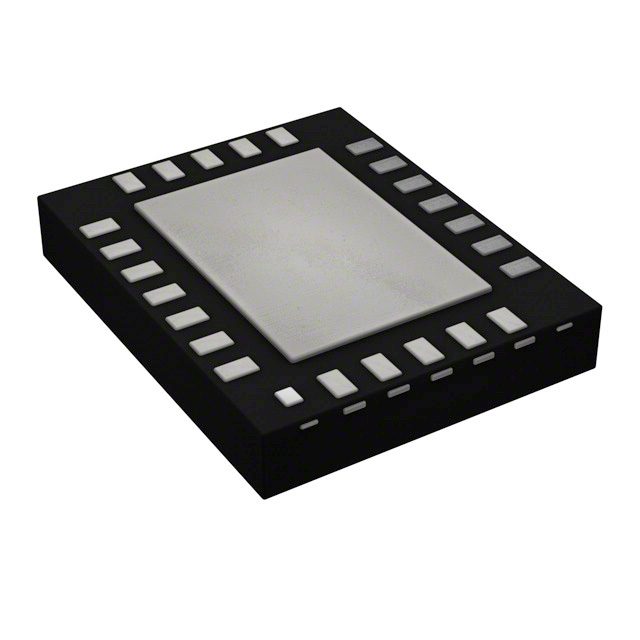

Texas Instruments DP83825IRMQR	Transceiver						Ethernet IEEE 802.3	Surface Mount	Full Half	24-WQFN (3x3)	24-WFQFN Exposed Pad	1.62 V 3 V	1.98 V 3.6 V	85 °C	-40 °C	10 Mbps 100 Mbps

Catalog

Smallest form factor (3-mm by 3-mm), low-power 10/100-Mbps Ethernet PHY transceiver with 50-MHz c

Key Features

• Ultra Small Form Factor 10/100Mbps PHY : QFN 3mm × 3mm, 24 pinCable reach up to 150 metersVery low power consumption < 127mWIntegrated MDI and MAC termination resistorsProgrammable energy saving modesActive sleepDeep power-downEnergy Efficient Ethernet (EEE) IEEE 802.3azEEE support for legacy MACWake-on-LAN (WoL)Voltage mode line driverMAC interface : RMII (master and slave mode)Single 3.3V power supplyI/O voltages: 1.8V and 3.3VRepeater : RMII back-to-back mode in unmanaged modeMDC/MDIO Interface for configuration and statusFast link drop modesDiagnostics tools: cable diagnostics, built-in self test (BIST), loopback modesProgrammable Hardware interrupt pinOperating temperature range: –40°C to 85°CCompliant to IEEE 802.3 100BASE-TX and 10BASE-Te specificationUltra Small Form Factor 10/100Mbps PHY : QFN 3mm × 3mm, 24 pinCable reach up to 150 metersVery low power consumption < 127mWIntegrated MDI and MAC termination resistorsProgrammable energy saving modesActive sleepDeep power-downEnergy Efficient Ethernet (EEE) IEEE 802.3azEEE support for legacy MACWake-on-LAN (WoL)Voltage mode line driverMAC interface : RMII (master and slave mode)Single 3.3V power supplyI/O voltages: 1.8V and 3.3VRepeater : RMII back-to-back mode in unmanaged modeMDC/MDIO Interface for configuration and statusFast link drop modesDiagnostics tools: cable diagnostics, built-in self test (BIST), loopback modesProgrammable Hardware interrupt pinOperating temperature range: –40°C to 85°CCompliant to IEEE 802.3 100BASE-TX and 10BASE-Te specification

Description

The DP83825I is an ultra small form factor, very low power Ethernet Physical Layer transceiver with integrated PMD sublayers to support 10BASE-Te, 100BASE-TX Ethernet protocols. The PHY supports up to 150 meters reach over CAT5e cable. The DP83825I interfaces directly to twisted pair media via an external transformer. The DP83825I also supports Energy Efficient Ethernet, Wake-on-LAN and MAC isolation to further lower the system power consumption. Energy Efficient Mode can be enabled through register configuration for legacy MACs not supporting EEE signaling over MAC. DP83825I can operate in unmanaged repeater mode. In this mode, DP83825I works as a repeater without register configuration. The DP83825I offers integrated cable diagnostic tools, built-in self-test and loopback capabilities for ease of development and debug. The DP83825I is an ultra small form factor, very low power Ethernet Physical Layer transceiver with integrated PMD sublayers to support 10BASE-Te, 100BASE-TX Ethernet protocols. The PHY supports up to 150 meters reach over CAT5e cable. The DP83825I interfaces directly to twisted pair media via an external transformer. The DP83825I also supports Energy Efficient Ethernet, Wake-on-LAN and MAC isolation to further lower the system power consumption. Energy Efficient Mode can be enabled through register configuration for legacy MACs not supporting EEE signaling over MAC. DP83825I can operate in unmanaged repeater mode. In this mode, DP83825I works as a repeater without register configuration. The DP83825I offers integrated cable diagnostic tools, built-in self-test and loopback capabilities for ease of development and debug.
