737-040 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 40POS 0.156

Part	Material - Insulation	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions/Bay/Row [custom]	Contact Finish	Pitch	Pitch	Termination	Read Out	Number of Positions	Card Type	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Gender	Contact Type	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination Rows [custom]	Number of Positions/Bay/Row	Number of Rows [custom]
EDAC Inc. 737-040-545-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	40	Gold	3.96 mm	0.156 in	Press-Fit Wire Wrap	Single	40	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Cantilever	Copper Alloy	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 737-040-520-106	Polyester Thermoplastic	1	-40 C	105 ░C	Black	40	Gold	3.96 mm	0.156 in	Press-Fit	Single	40	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Cantilever	Copper Alloy	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 737-040-522-201	Polyester Thermoplastic		-40 C	105 ░C	Black		Gold	3.96 mm	0.156 in	Press-Fit	Dual	40	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		Female	Cantilever	Copper Alloy	Through Hole	30 Áin	0.76 Ám	2	20 Bay/Row	2
EDAC Inc. 737-040-560-206	Polyester Thermoplastic		-40 C	105 ░C	Black		Gold	3.96 mm	0.156 in	Press-Fit	Dual	40	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		Female	Cantilever Make Before Break	Copper Alloy	Through Hole	30 Áin	0.76 Ám	2	20 Bay/Row	2

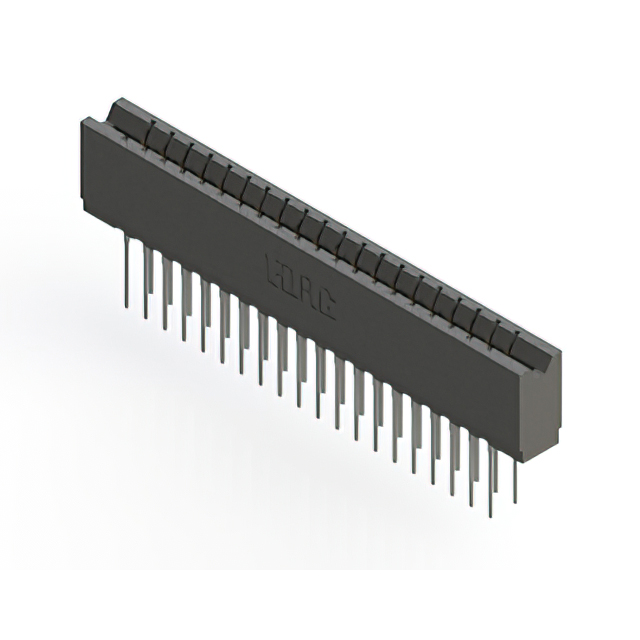

EDAC Inc. 737-040-545-206	Polyester Thermoplastic		-40 C	105 ░C	Black		Gold	3.96 mm	0.156 in	Press-Fit Wire Wrap	Dual	40	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		Female	Cantilever	Copper Alloy	Through Hole	30 Áin	0.76 Ám	2	20 Bay/Row	2

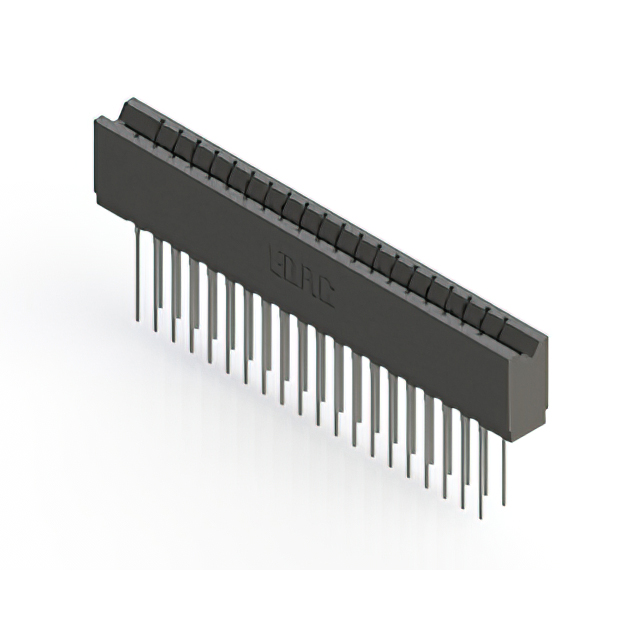

EDAC Inc. 737-040-541-206	Polyester Thermoplastic		-40 C	105 ░C	Black		Gold	3.96 mm	0.156 in	Press-Fit Wire Wrap	Dual	40	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		Female	Cantilever	Copper Alloy	Through Hole	30 Áin	0.76 Ám	2	20 Bay/Row	2
EDAC Inc. 737-040-522-106	Polyester Thermoplastic	1	-40 C	105 ░C	Black	40	Gold	3.96 mm	0.156 in	Press-Fit	Single	40	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Cantilever	Copper Alloy	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 737-040-540-106	Polyester Thermoplastic	1	-40 C	105 ░C	Black	40	Gold	3.96 mm	0.156 in	Press-Fit Wire Wrap	Single	40	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Cantilever	Copper Alloy	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 737-040-541-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	40	Gold	3.96 mm	0.156 in	Press-Fit Wire Wrap	Single	40	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Cantilever	Copper Alloy	Through Hole	30 Áin	0.76 Ám
EDAC Inc. 737-040-560-201	Polyester Thermoplastic		-40 C	105 ░C	Black		Gold	3.96 mm	0.156 in	Press-Fit	Dual	40	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm		Female	Cantilever Make Before Break	Copper Alloy	Through Hole	30 Áin	0.76 Ám	2	20 Bay/Row	2
